Industrial Fuel Oil Lpg Natural Gas Hot Water Boiler Thermal Oil Boiler Steam Boiler
 Capacity: |
100kg-50000kg 10hp-3000hp |
 Pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Fuel: |
Nature gas, lpg, diesel, biogas, heavy oil, waste oil, exhuast gas... |
 Application: |
For Industries factory processing, For Heating system, Such as Food & beverage, dairy, laundry, feedmill, paper, packages, garments, textile, oil mill, hotel, chemical... |
Customized Service:Design as Portable skid mounted/Mobile containerised boiler. Others: vertical boiler, water tube boiler.
Introduction
> Industrial Gas Boiler (Also lpg, biogas, oil, exhaust gas)
#Steam_Boiler #Steam_Generator #Hot_Water_Boiler #Thermal_Oil_Boiler
Certified by ASME, CE, ISO, EAC, DOSH, TUV, BV, ensuring high quality and compliance with international standards.

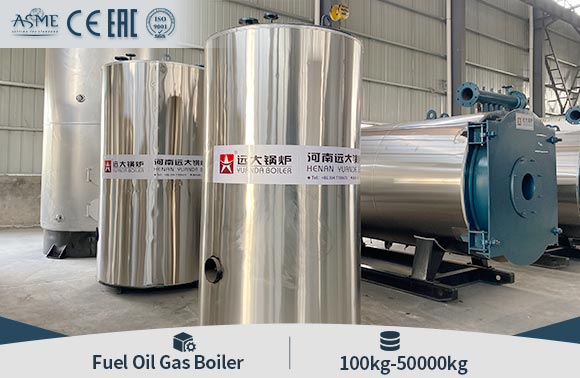

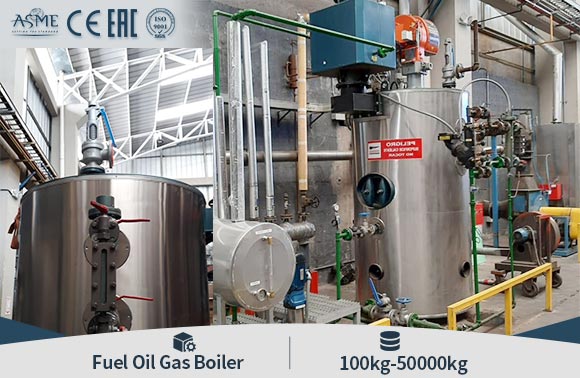

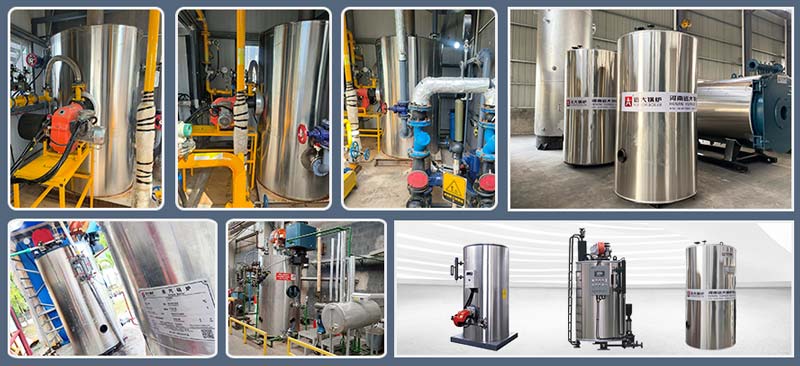

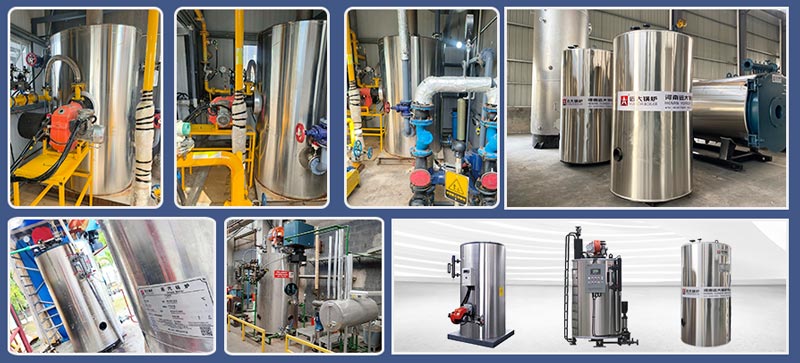

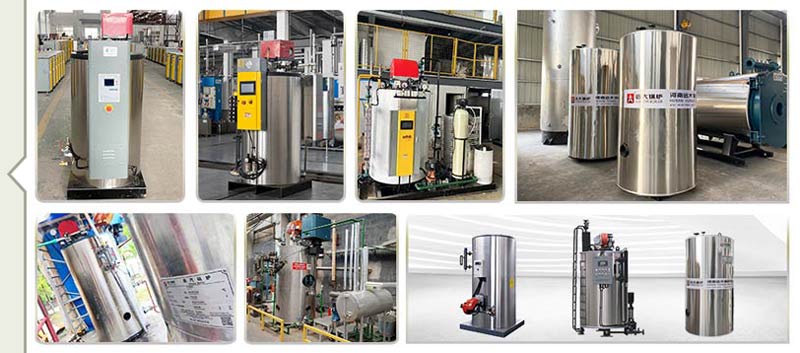

⭐ Product: Vertical Gas Fired Boiler
Gas hotwater boiler & Gas steam generator boiler
Vertical Boiler capacity 100kg 200kg 300kg 500kg 1000kg 1500kg 2000kg, 100kw-1400kw, 10hp-120hp

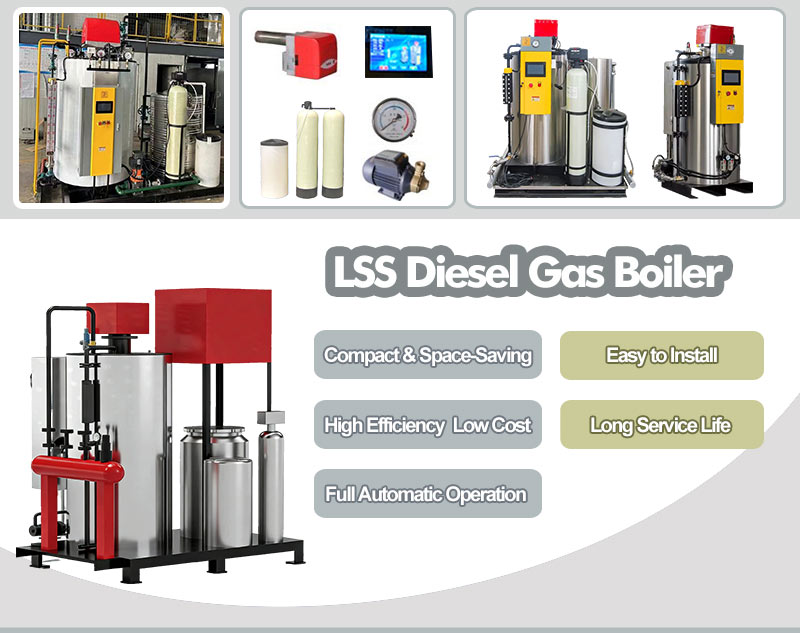

LHS/LSS series vertical gas fired boiler, with advantages of Smaller footprint area (can be used in small size boiler room), Simple structure, Easy to install & commissioning, Low emissions, Long lifespan services.

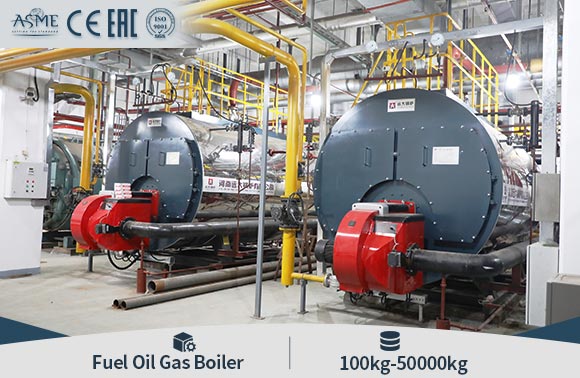

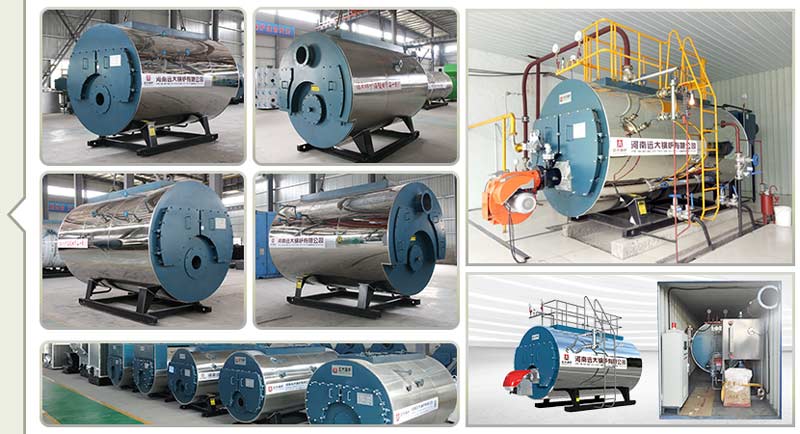

⭐ Product: Horizontal Fire tube Gas Boiler
Gas hotwater boiler & Gas steam generator boiler

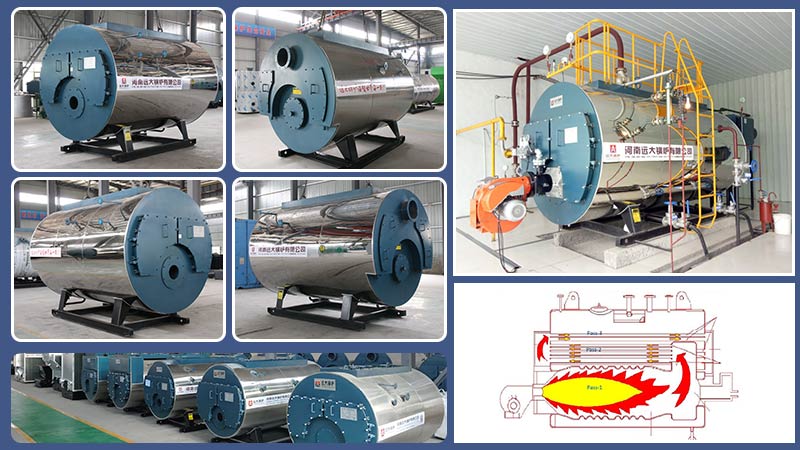

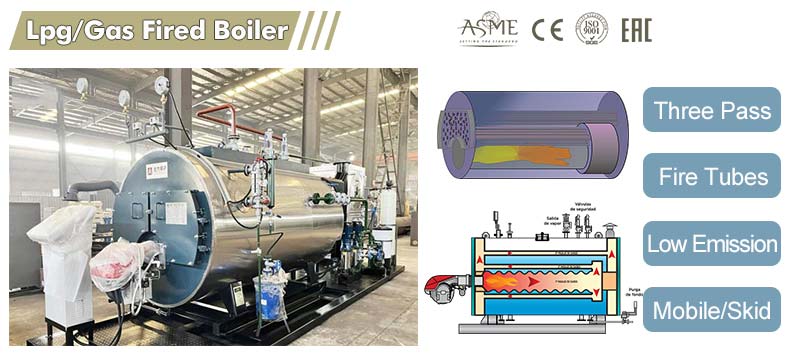

WNS series Gas Lpg Fired boiler, is horizontal three pass fire tube structure boiler, with higher-efficiency up 99% & energy-saving & fully automatic running. Importantly, WNS series boiler has a lower emissions, environmental-friendly. WNS boiler body with characteristics of "fan-shape three pass boiler" "wet-back boiler" "corrugated-furnace" "smoke change chamber" "spirally tube", greatly improve thermal efficiency.

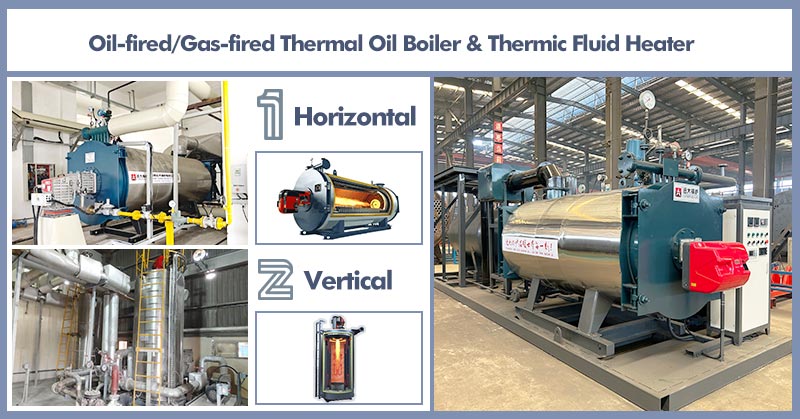

⭐ Product: Gas Thermal Oil Boiler
Vertical Thermal Oil Boiler & Horizontal Thermal Oil Boiler
Thermal Oil boiler widely used in textile, bitumen, plywood, asphalt, foods, heating tanks, heating crude oil, oil refinery, etc.
Thermal power in 120kw-14000kw, heating thermal oil to 300degree, 350degree, 400degree (customized design).

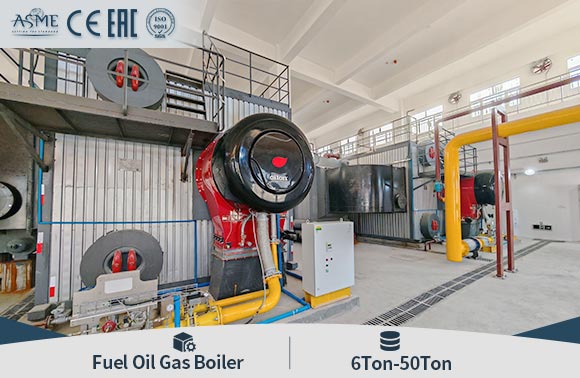

⭐ Product: Water Tube Gas Boiler

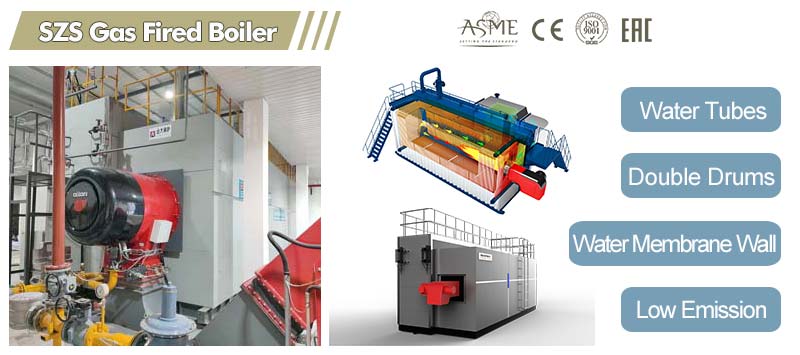

SZS Double Drums Water Tube Boiler 6ton-50ton/hour
※ SZS gas & oil water tube boiler is arranged as drum longitudinal type “D” shape, it’s quickly assembled boiler with water tube, has the characteristics of high steam quality, sufficient output, high thermal efficiency, etc.
※ The structure of furnace water cooling wall and convection gas pass is membrane wall, have good sealability, and effectively reduce refractory brick quantity and maintenance workload.
⭐Yuanda Industrial Heater & Boilers
✅Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
✅Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
✅Heat medium options: saturated/superheated steam, hot water, thermal oil.
✅Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
✅Layout options: Vertical boiler, Horizontal boiler.
Yuanda Oil Gas Boiler
Fuel Oil Gas Consumption
For example, 1ton boiler comsumes 73.53 Nm3 natural gas (heat value 8500kcal). 52kg LPG (heat value 12000kcal). 72 ltrs diesel (heat value 8670kcal).

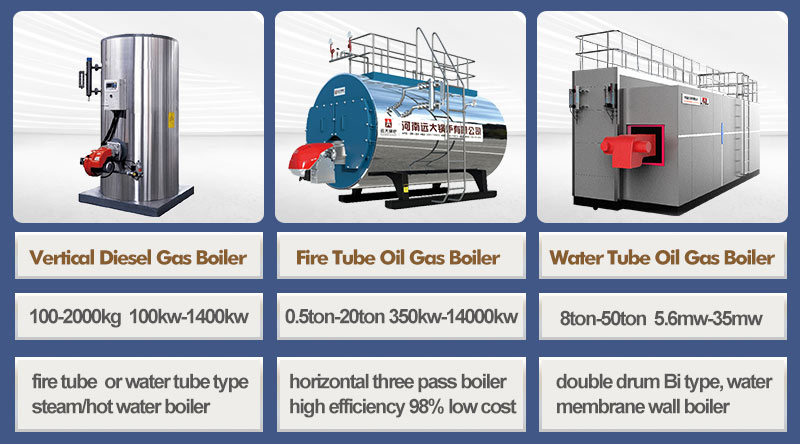

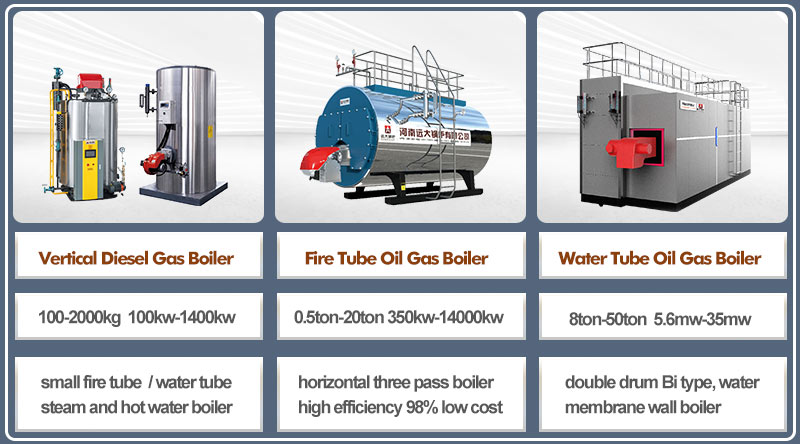

Various of Oil Gas Boilers
Oil gas steam/hot water boiler, thermal oil boiler. Fire tube boiler and water tube boiler. Vertical boiler and horizontal boiler.
Our Company
Yuanda Boiler has 70 years of professional manufacturing experience. With 18 years of export history, sales service cover 132 countries and regions.
Our Certificates
Yuanda Boiler products meet international certification standards, including ISO, CE, ASME, EAC, DOSH, and CRN, ensuring safety, reliability, and quality.
Technical Parameter
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||

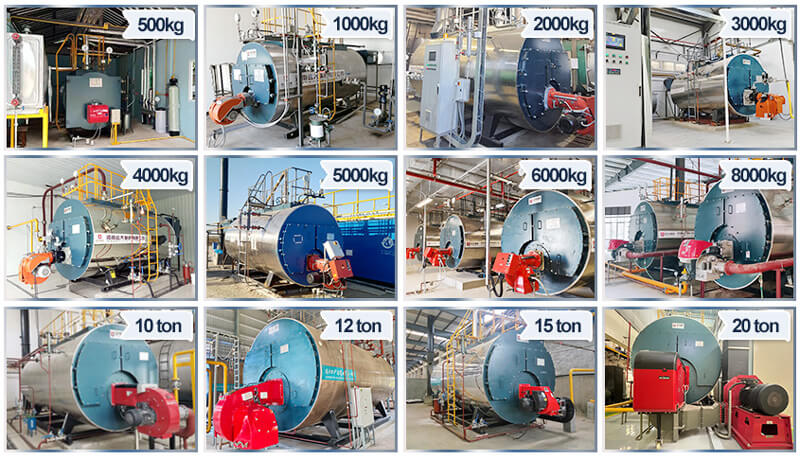

Our Supply Equipment List
WNS Boiler Advantages
100% Safety
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler
Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionYUADNA PRODUCTS
