Steam Generator Boiler

Product capacity: 9kw-7000kw 13kg-10000kg
Working pressure: 1bar-25bar
Available fuel: Heating by electricity, electric steam generator
Available industries: For heating, drying process, such as in foods process, cheese factory, milk factory, poultry, feed mill, garment factory, school, hotel, laundry, kitchen......

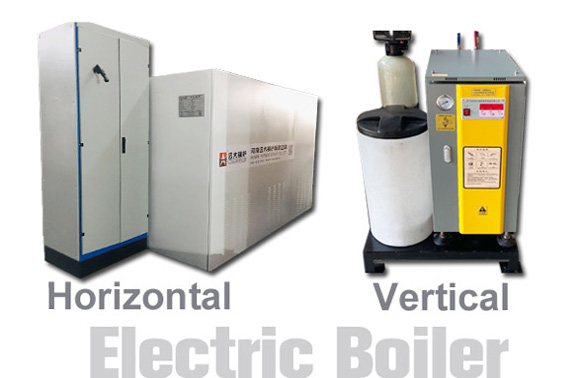

Key selling points:LDR WDR commercial electrical steam generator boiler, vertical steam generator or horizontal package steam boiler, automatic operation & easy install and quick into use & no air pollution boiler

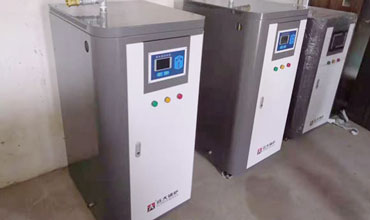

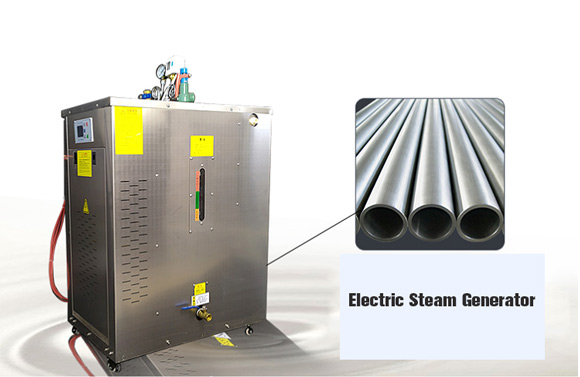

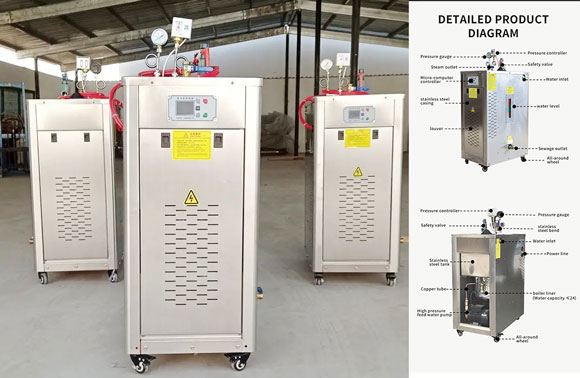

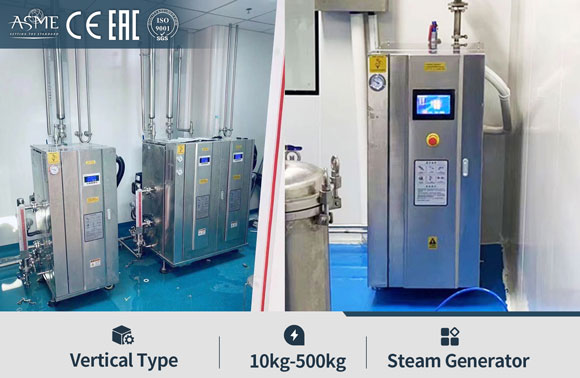

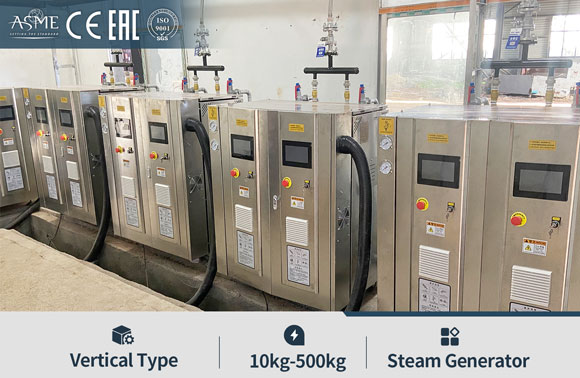

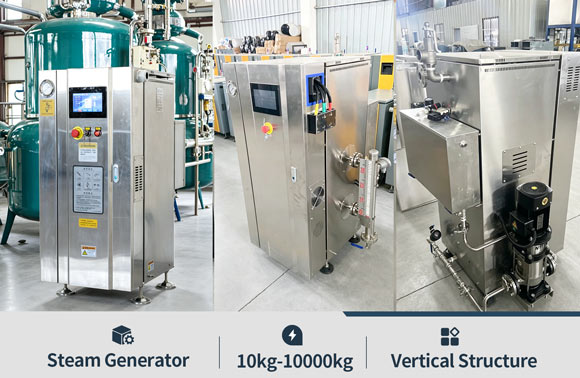

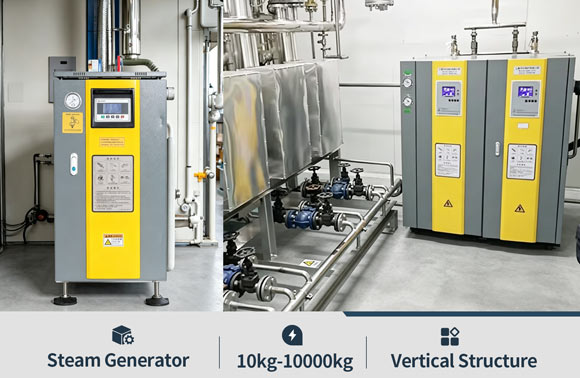

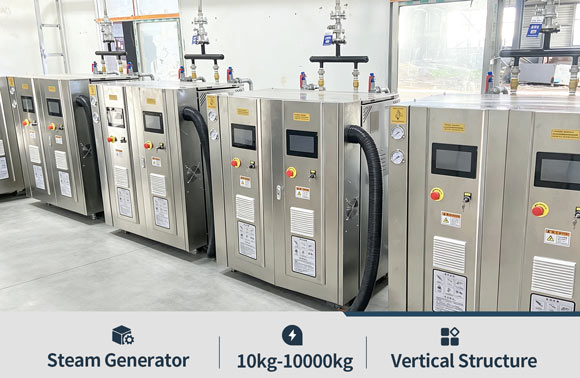

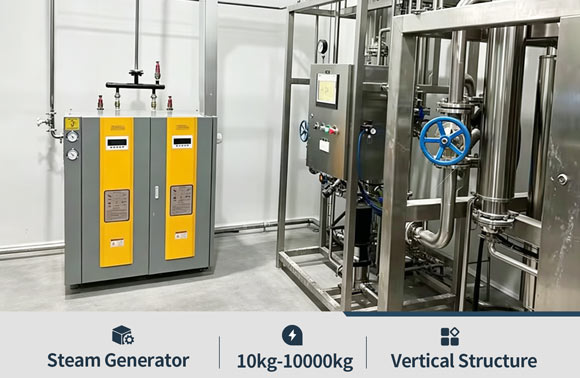

> Electric Steam Generator

Small Footprint | Nearly 100% Efficient | Compact Design | Zero Emissions | Customized Design Voltage < 480V

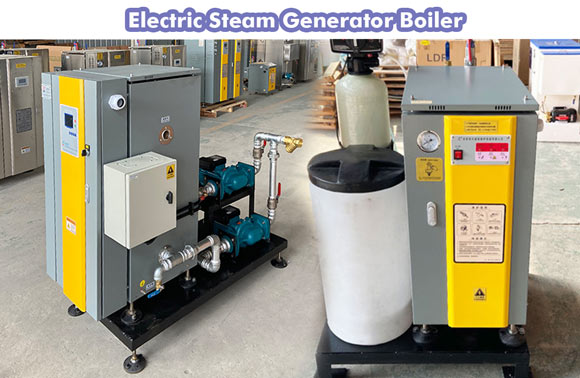

electric steam boiler,electric steam generator,electric boiler

electric steam generator,electric steam boiler,electric boiler

> Features & Advantages

Easy to install and use

The products have passed strict debugging before leaving the factory. The user only needs to connect the power supply and water source, press the start button, and the boiler can enter the fully automatic operation state, without complicated installation;

Operational data LCD display

Equipment operation data including heating pipe operation status, furnace water level status, water pump operation status, pressure status, and equipment failure alarm indicator information are all displayed in liquid crystal, which is intuitive and clear.

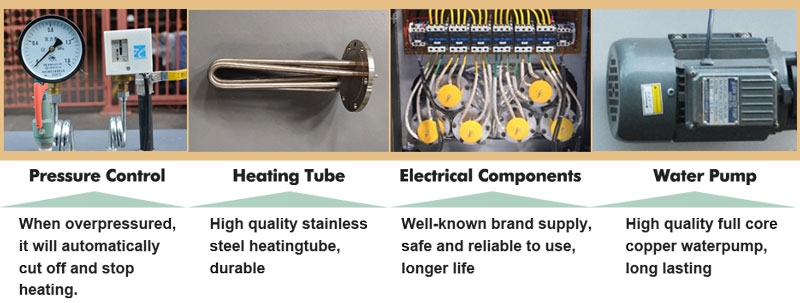

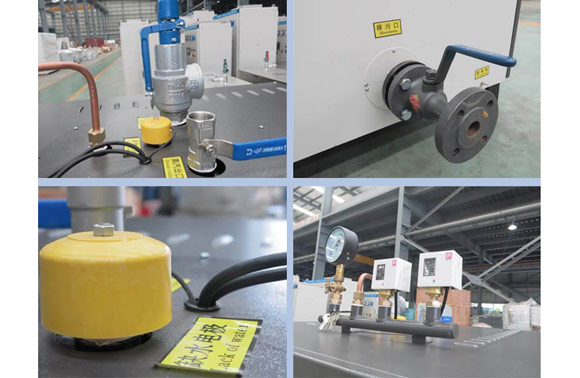

Using high-quality components

1) The electric heating tube is made of thick-walled 316L seamless stainless steel tube, filled with imported high-temperature magnesium powder machine, and the high temperature resistance can reach 1000°C.

2) Flange disassembly is easier to connect and replace;

3) The electrical appliances adopt well-known brands at home and abroad, which are safe and reliable. The air switch adopts Chint brand, and the AC contactor adopts LS brand;

4) The main body and all pipe fittings are treated with anticorrosion

Multiple chain safety protection functions

1) The boiler liquid level is controlled by three groups of liquid levels, high, medium and low, to prevent the equipment from drying out due to water cut-off;

2) The boiler pressure adopts dual pressure control, the working pressure is adjustable, and the protection pressure is set to a specific value. Once the pressure is over, the power will be automatically cut off;

3) The safety valve can be set to a set pressure, and once the pressure is over, it will automatically release the pressure;

4) The furnace wall of the inner tank of the boiler is equipped with a temperature protection device. When the temperature of the furnace wall exceeds 165 degrees, the power supply is automatically cut off and an audible and visual alarm is given.

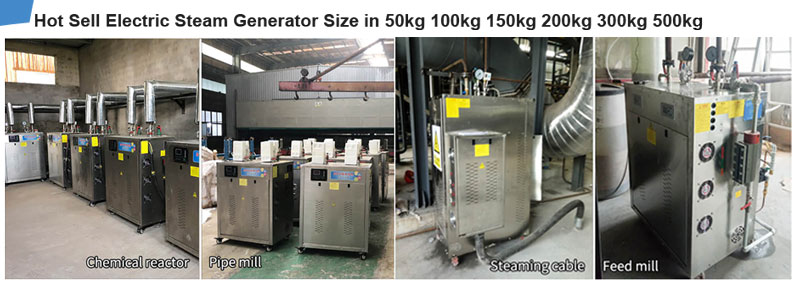

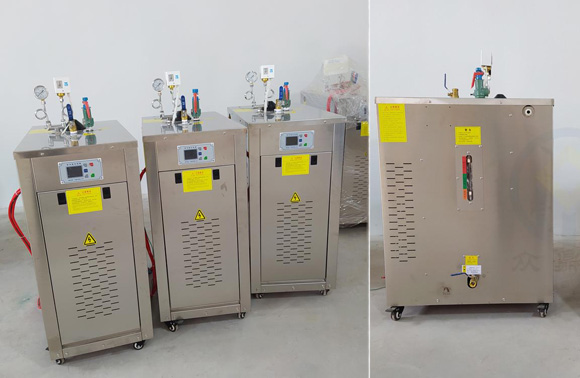

electric steam generator 50kg 100kg 150kg 200kg 300kg 500kg

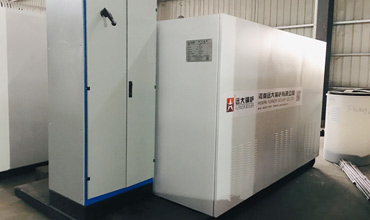

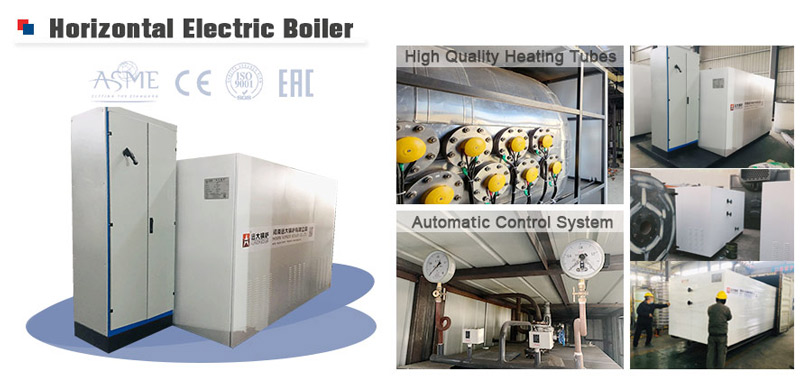

> Related: Horizontal electric bioiler

horizontal electric steam boiler,horizontal electric boiler,electric steam boiler price

Technical Parameter

Model Types Thermal capacity (kg/h) Thermal capapcity (kw) Working pressure  Steam temperature Thermal efficiency Dimension (mm) Weight (kg)
LDR0.013 Vertical 13 9 0.3Mpa-1.5Mpa
(Customized design)
(Customized design)
98%-99.5% 650*390*750 70
LDR0.017 17 12 650*390*750 75
LDR0.025 25 18 750*450*1050 90
LDR0.035 35 24 750*520*1050 95
LDR0.05 50 36 750*580*1150 101
LDR0.065 65 48 800*580*1200 115
LDR0.075 75 54 800*580*1300 140
LDR0.085 85 60 800*600*1300 145
LDR0.1 100 72 860*650*1390 172
LDR0.11 110 80 860*650*1390 185
LDR0.125 125 90 860*650*1430 190
LDR0.15 150 108 920*760*1600 245
LDR0.18 180 126 920*760*1600 260
LDR0.2 200 144 1130*750*1780 450
LDR0.25 250 180 950*900*1830 650
LDR0.3 300 216 1320*1040*1920 760
LDR0.4 400 288 1380*1040*2070 890
LDR0.5 500 360 1020*890*2350 1020
WDR0.5 Horizontal 500 360 1755*1180*1510 1400
WDR1.0 1000 700 2530*1380*1480 1730
WDR2 2000 1400 2530*2000*2080 2730
WDR3 3000 2100 2630*2210*2160 3420
WDR4 4000 2800 3680*2360*2380 4320
WDR5 5000 3500 3980*2580*2560 5130
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Our Supply Equipment List

Steam generator proper
Inner control cabinet
Electric heating rod
Bottom valve
Water pump
Valves & Instruments
Steam flow meter
Electrode sensor
Steam seperator
Safety valve
Pressure controller

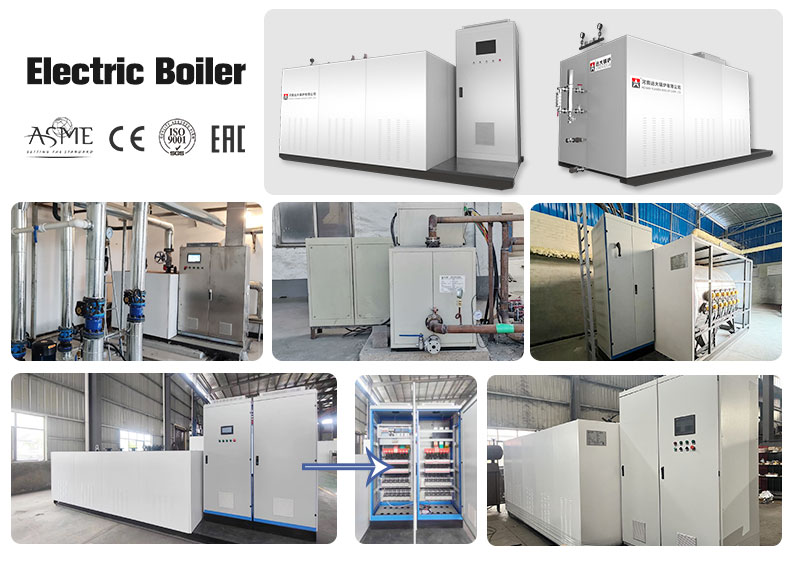

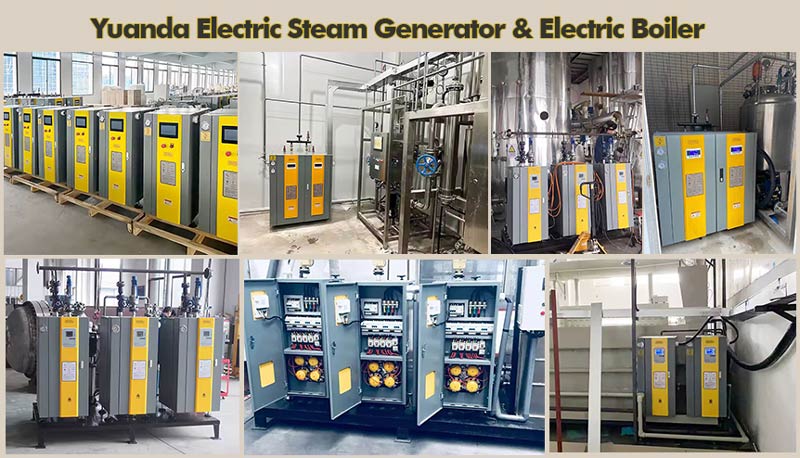

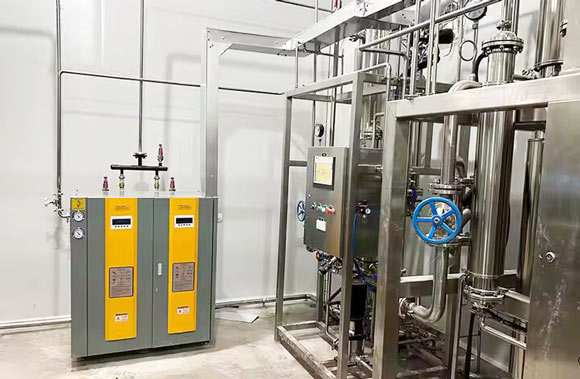

Electric Boiler Application

electric steam boiler

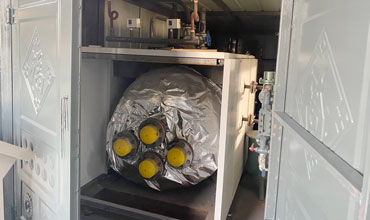

1ton Electric Boiler

Horizontal electrical heated steam boiler, for milk pasteurization

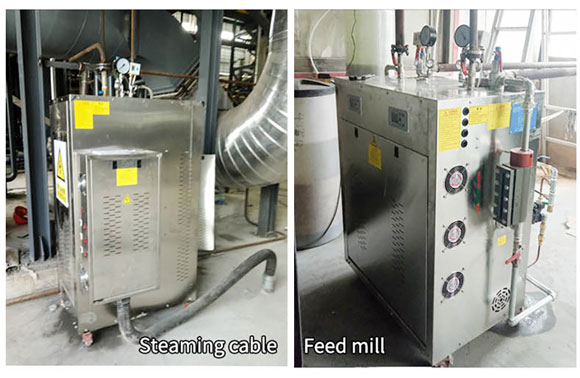

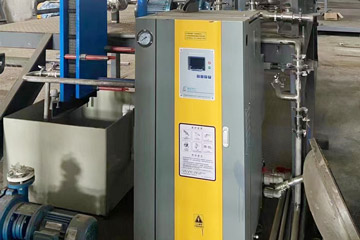

50kg electric steam generator

50kg Electric Steam Generator

Small electric steam generator for food processing factory
electric hot water boiler

300kw Electric Hot Water Boiler

Containerised electrical hot water boiler for buildings center heating

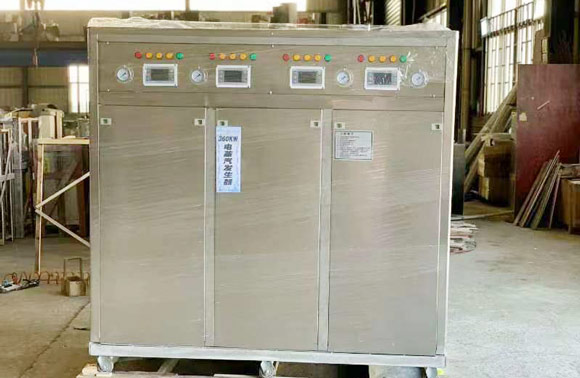

360kw electric steam generator

360kw Electric Steam Generator

Vertical electric steam generator 360kw, for dairy products

Global Sales & Service

Global Sales & 15Years Export Experience

Till now, our products already sold to 102 countries all over the world. Products Certified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, ensuring high quality and compliance with international standards.

Factory Outlet & Direct Sale Price

Our company established since 1956, more than 65 years experience in boiler design, manufacturing, install service. Factory direct sale price make good sense for your business.

Global Service Team For Boiler

Our Engineer have arrived more than 50Countries for boiler installation, guiding, commissioning and training operators, that make our boiler work perfect during using life, nice after-sale service.
