LSG Biomass Water Tube Boiler
 Product capacity: |
100kg-2000kg 50kw-1400kw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Wood, biomass, coal, jute, solid waste... |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Key selling points:Vertical wood biomass fired boiler, inner water tube structure boiler & manual feed fuel burning boiler & strong steam power & easy installation and quick into use
Introduction
Biomass Boiler
Certified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, ensuring high quality and compliance with international standards.

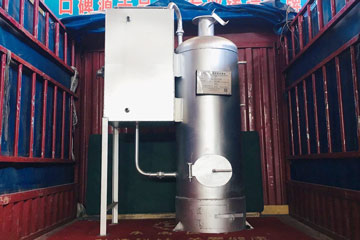

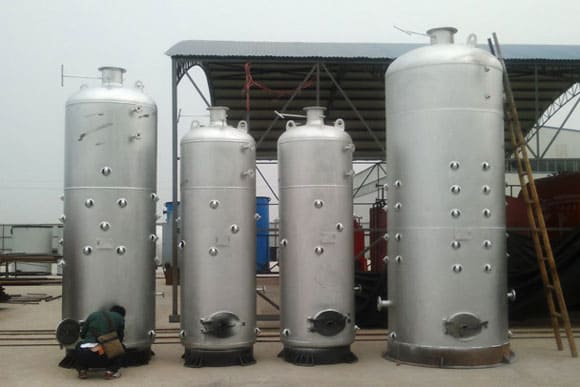

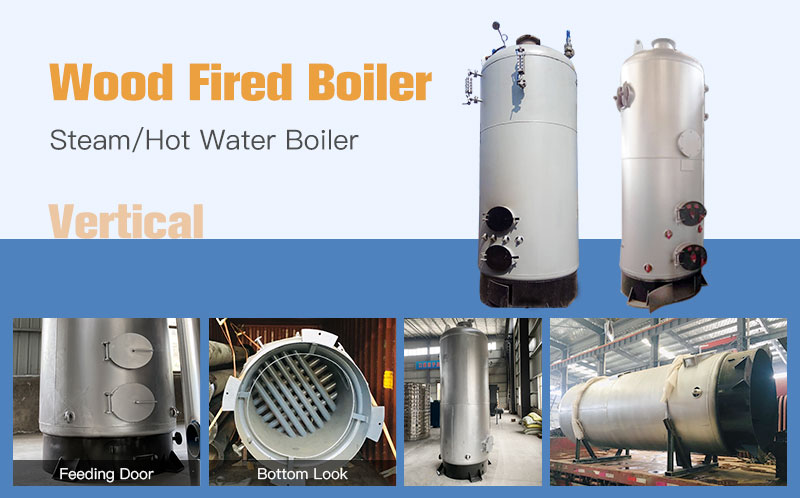

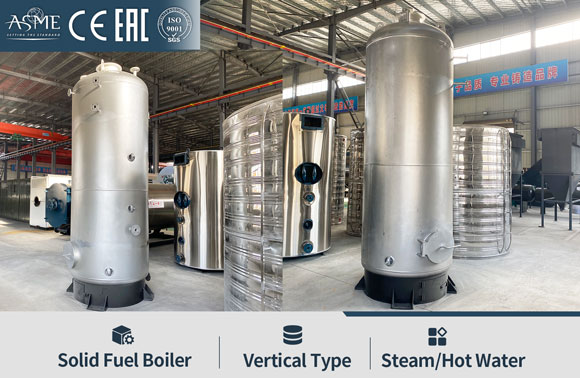

Vertical wood/biomass fired boiler
Small vertical biomass wood boiler, adopt water tube structure, coal/wood/biomass fuel/solid material burning boiler. Heating capacity in 100kw-1400kw or 200kg-2000kg.

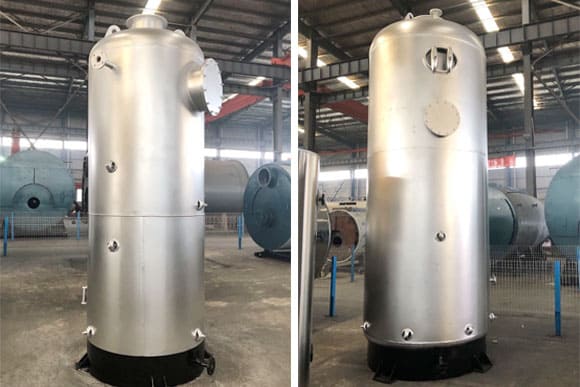

Structure: Vertical manual feeding coal/wood fired boiler, the boiler body mainly made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes, pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Advantages: vertical boiler in 300kg 500kg 800kg 1000kg, it's more easier to install, has smaller occupied area, lower price for boiler body.

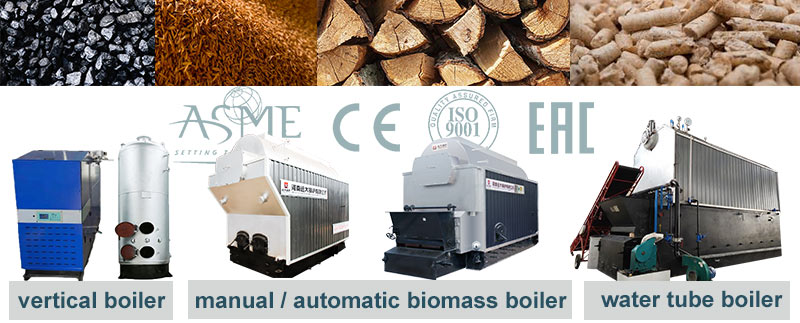

Others Models for Biomass/Wood Boiler
1. Chain grate biomass boiler,
2. Travelling grate biomass boiler
3. Fixed grate biomass boiler
4. Water tube biomass boiler

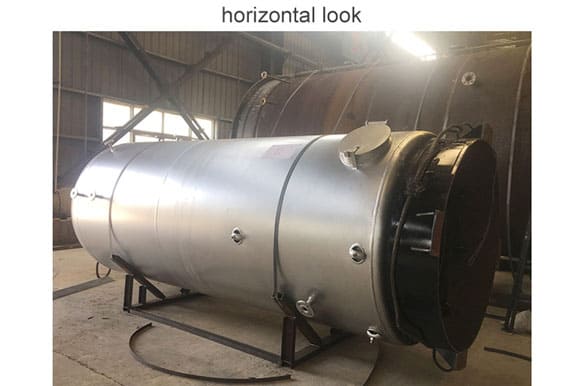

5. Horizontal biomass boiler

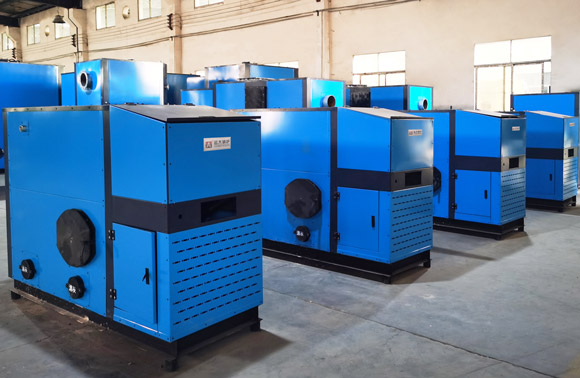

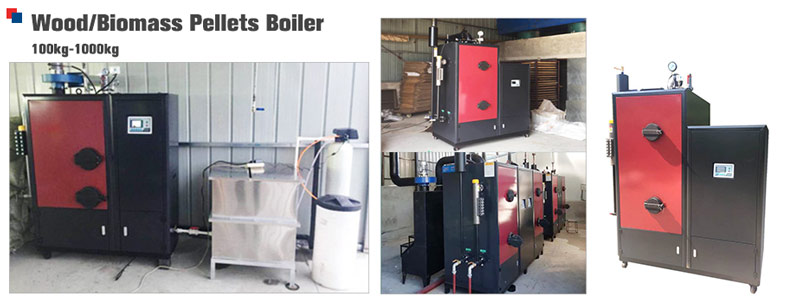

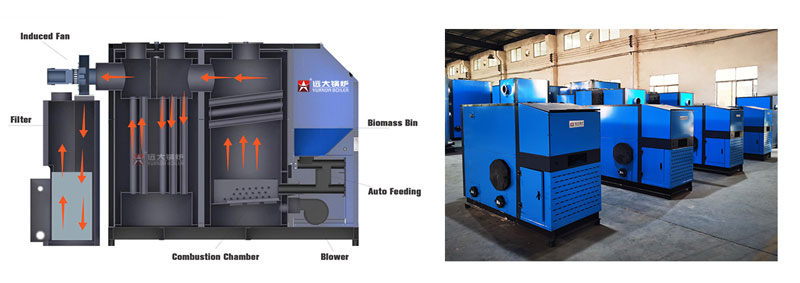

6. Biomass pellets steam generator
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| Biomass Steam Generator Technical Parameter Table | |||||||
| Model | Rated evaporation(T/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Thermal efficiency(%) | Water capacity(L) | Fuel consumption(Kg/H) | power supply(V) |
| LSG0.08-0.7 | 0.08 | 0.7 | 170 | ≥90 | 29.5 | 12 | 220 |
| LSG0.12-0.7 | 0.12 | 0.7 | 170 | ≥90 | 29.5 | 17 | 220 |
| LSG0.16-0.7 | 0.16 | 0.7 | 170 | ≥90 | 29.5 | 25 | 220 |
| LSG0.23-0.7 | 0.23 | 0.7 | 170 | ≥90 | 29.5 | 33 | 220 |
| LSG0.30-0.7 | 0.3 | 0.7 | 170 | ≥90 | 47.5 | 50 | 220 |
| LSG0.50-0.7 | 0.5 | 0.7 | 170 | ≥90 | 29.5 | 75 | 220 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||

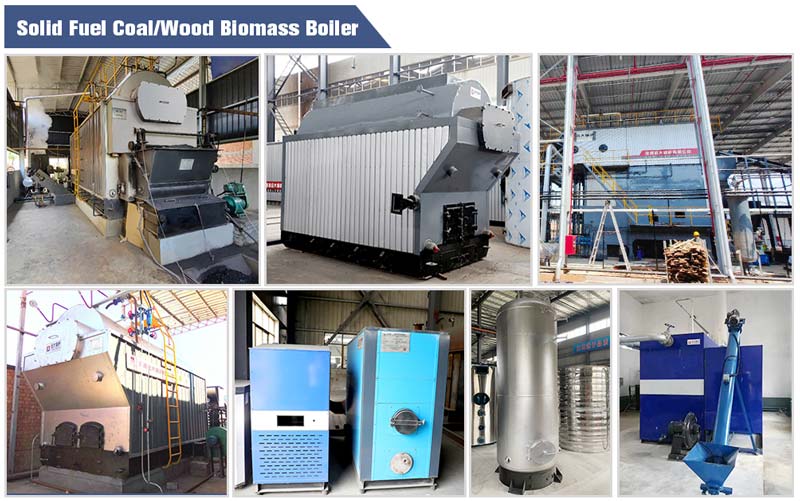

Our Supply Equipment List
Design Features

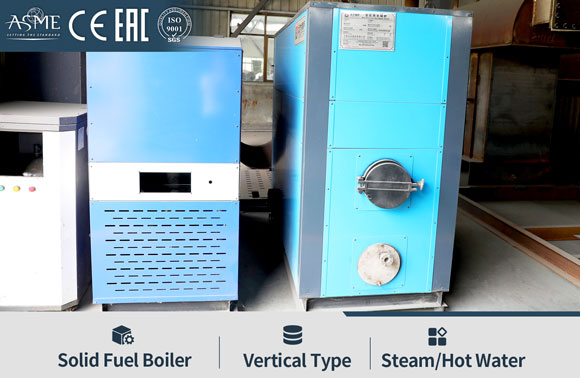

Hand-Feeding Boiler
LSG series vertical type boiler, help saving occupy area. Need Hand feeding biomass/wood into combustion, easy installation & operation
Inner Water Tube Structure
Water tube coal boiler, larger heating area, make water temperature heat up quickly. Also it has low maintenance rate, low running cost
100% Safety & Easy Control
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
Longer Using Lifespan

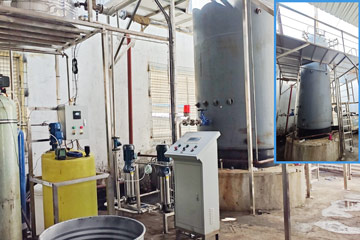

Equipped with water softener, could remove Mg+, Ca+ in water and improve water quality. Prevent hurt to boiler tube, entend the boiler using life timePRODUCT LIST
