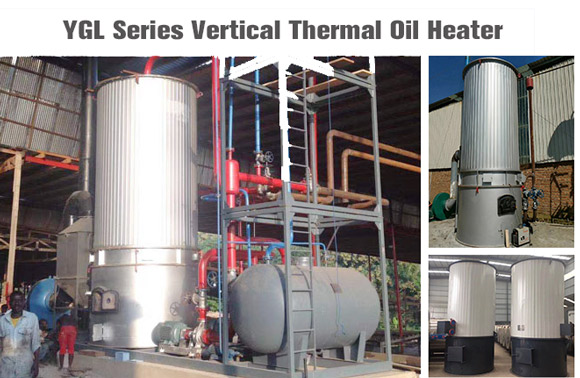

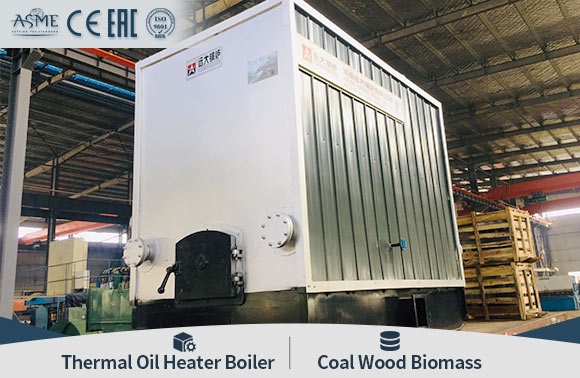

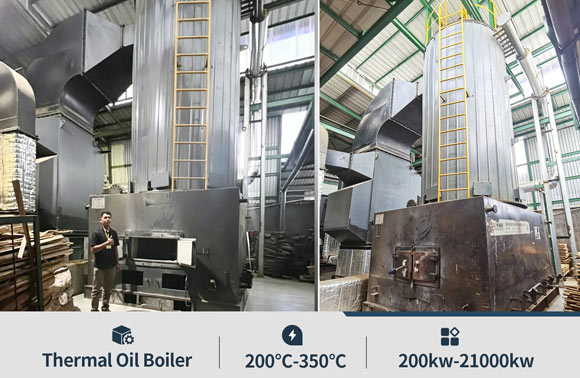

Vertical Coal/Wood Thermal Oil Heater

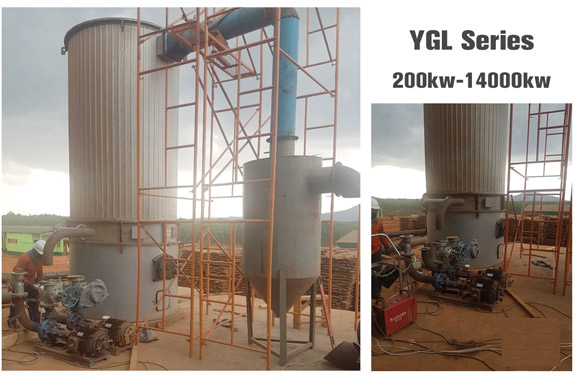

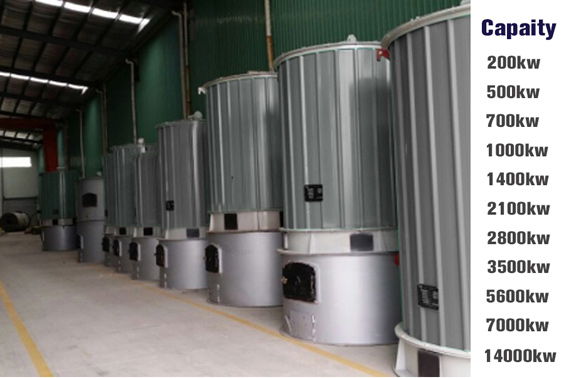

Product capacity: 200kw-14000kw
Working pressure: 0.1Mpa-3.8Mpa 1bar-38bar
Available fuel: Wood, coal, biomass, solid waste
Available industries: For heating oil, such as in Food industry, Textile industry, Packaging industry, Bitumen, Plywood factory, Refineries...

Key selling points:YGL vertical coal biomass fired thermal oil boiler, consist of upper drums & combustion device, scientific design for thermic oil flowing circulation system, heating thermic oil efficiently 100% safety


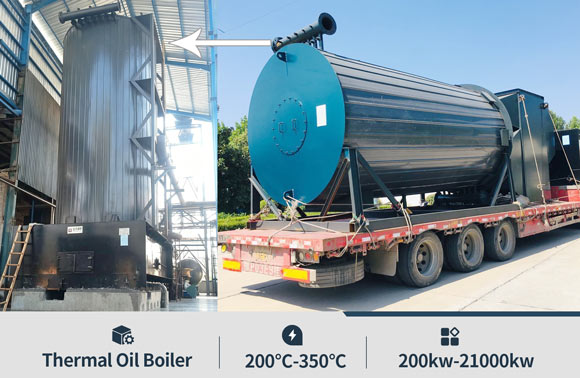

YGL Vertical Thermal Oil Boiler | Use coal, wood, biomass, agro waste

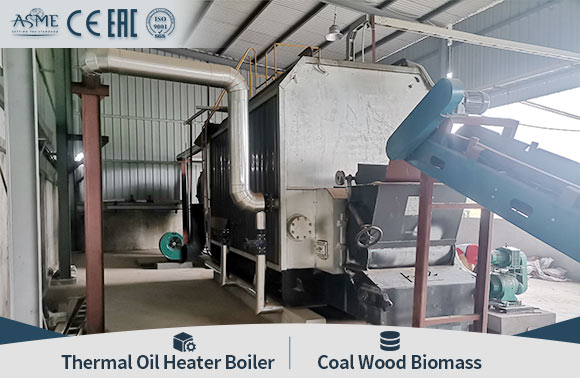

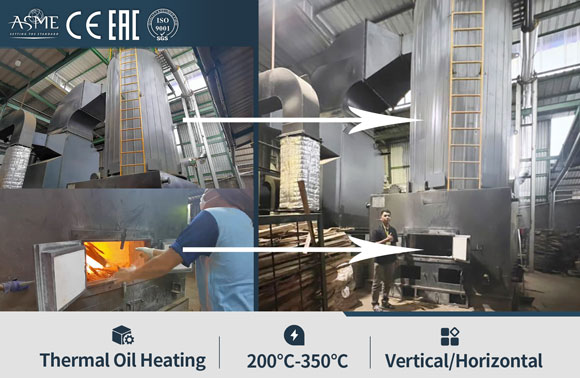

It is vertical type, manual feeding boiler, consist of boiler drum & combustion stoker, smaller occupied area.

YGL wood thermic fluid heater,YGL vertical thermal oil boiler,vertical wood thermal oil boiler

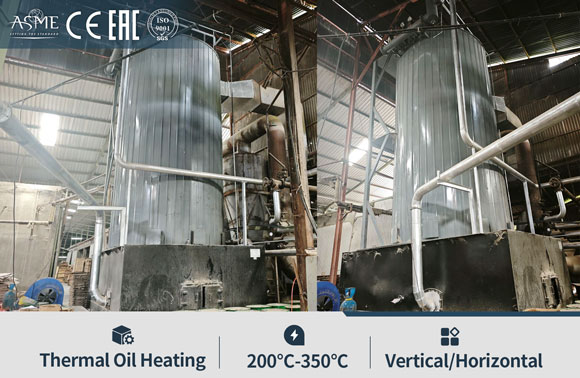

Introduction: YGL series thermal oil boiler, is vertical type boiler working at low pressure, heating thermal oil temperature up to 200°C-350°C. In thermal oil boiler, thermal oil as heat medium, using the circulating pump to force the liquid thermal oil circulation, then transportingthermal oil though pipes into customers' thermal equipment, do successful heat exchange. Then, thermal oil return back the thermal oil boiler.

Whole System including thermal oil heater boiler proper, stoker, control cabinet, oil expansion tank, oil storage tank, oil circulating pumps, ID fan, forced fan, economizer, chimney, pipes, valves, gauges, etc.

YGL thermic fluid heater,wood thermal oil boiler,vertical wood oil boiler

Energy efficient

1. Close packed disc tube heating surface, heating surface layout adequacy, multi-backhaul heat exchanger.

2. Furnace size match with burning flame, radiation heat transfer efficiency.

3. Positive pressure combustin, so that combustion efficiency is  greatly improved.

4. Boiler quality insulation materials and special construction technology, less heat loss, ther exhaust gas temperature is low, the high thermal efficiency of ther boiler.

5. By fully rational surface layout, boiler warming fast start.

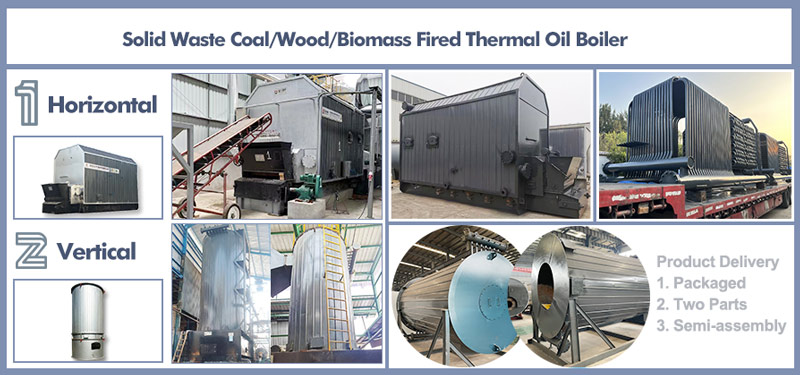

vertical thermic fluid heater,vertical thermal oil boiler,vertical hot oil boiler

Safe and reliable

1. Close-packed disc tube heating surface heating surface arrangement sufficient to reduce the tube sheet heat load, conducting oil safer to use.

2. The boiler operation monitor remote and nearly complete automatic control and monitoring instrumentation, safe, reliable, easy to operate

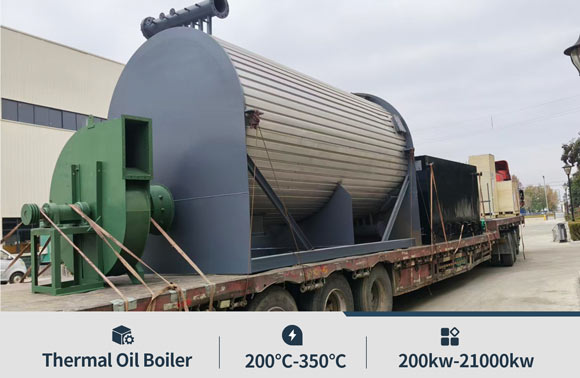

Easy to install

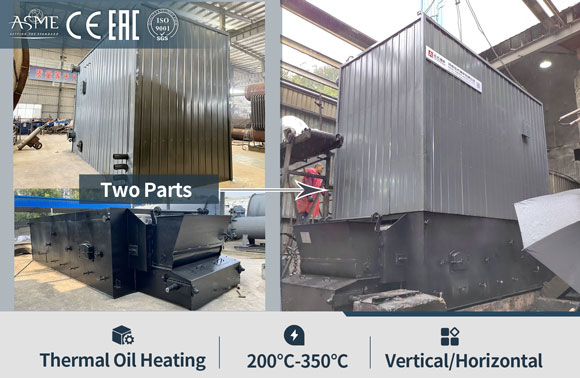

Boiler full assembled, compact structure, small footprint, is extremely easy to install and flexible, as long as the boiler is located based on.

Smaller Occupy Area

Compare to horizontal boiler, YGL thermal oil heater boiler body, only occupy a small area in boiler room, help saving space.

Controller Functions

Thermal oil boilers are assembly structure design, it's easy for installation by connecting system device by pipes. Equipped with intelligent control system makes thermal oil boiler operation easier and more simple. Screen display controller has functions of auto igniting, burning, circulation pumps controlling, alarming.

YGL vertical wood thermal oil boiler,YGL biomass thermal oil boiler,YGL thermal oil heater

Application of thermal oil boiler

1. Fuel applicable: Electric, Gas, Lpg, Diesel, Heavy Oil, Coal, Wood, Biomass, Agro Waste.

2. Application industry: Cement industry, Chemical/petrochemical industry, Polymer industry, Textile industry, Leather industry, Oil industry, Glue industry, Food processing industry, Metal industry, Tyre industry, Bitumen & Tar processing industry, Paper mills industry, Wood industry, Soap Detergent industry, Pharmaceutical industry, Paint Varnish industry Packing Packaging industry, Glass industry, Industrial Laundries. etc.

china thermal oil boiler,bitumen thermal oil boiler,gas diesel fired thermal oil boiler

Technical Parameter

Model Reted capacity(kw) Thermal efficiency(%) Rated pressure (Mpa) Woking pressure (Mpa) Woking temp.(℃) Dimension(mm) Weight(t)
YGL-350MA 350 80 0.1-3.8 0.1-3.8 350 1873×1683×3358 3.4
YGL-700MA 700 80 0.1-3.8 0.1-3.8 350 2276×2100×3840 4.8
YGL-1000MA 1000 80 0.1-3.8 0.1-3.8 350 2900×2500×4785 7.4
YGL-1200MA 1200 82 0.1-3.8 0.1-3.8 350 2900×2500×5133 10.2
YGL-1400MA 1400 82 0.1-3.8 0.1-3.8 350 3000×2900×5430 12.8

Our Supply Equipment List

Boiler Body
Control Cabinet
ID/Forced Fan
Dust Collector
Circulating Oil Pumps
Oil Storage Tank
Oil Expansion Tank
Oil Gas Separator
Oil header

Technical Design

thermal oil heater boiler, coal thermal oil boiler

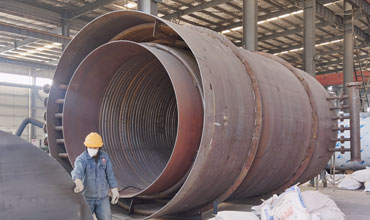

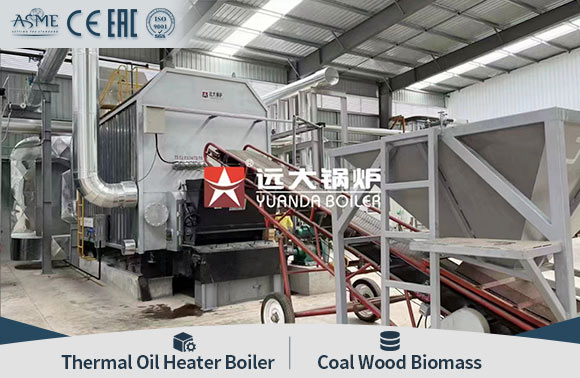

Multi-loop coil design

Adopts square coil horizontal sturcture, chain grate automatic fuel feeding combustion device, increase heating surface and easier to operate.
biomass fired hot oil heater boiler, coal thermal oil boilers

Countercurrent heat transfer process

After rediation heat transfer by rediation heating surface, it enters the convection heating surface for convection heat transfer.
Thermic Fluid Heater Boiler

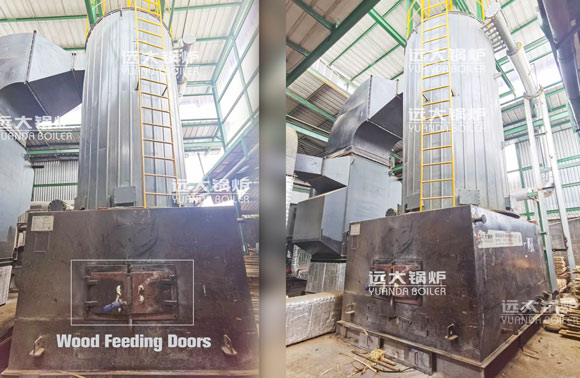

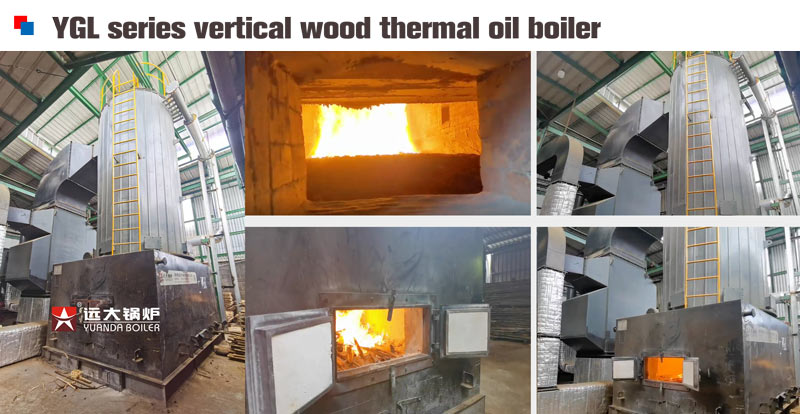

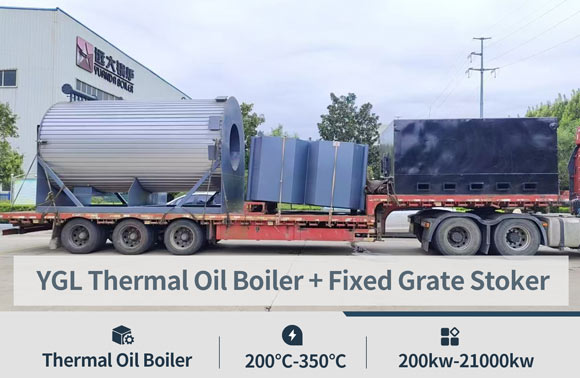

Fixed grate combustion

Use fixed grate combustion equipment. It needs labor hand feeding into coal/wood. It has advantages of low-failure rate, longer life span
environmental friendly thermal oil boiler

Economizer & Dust collector device

Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollution

FAQ of YGL Boiler

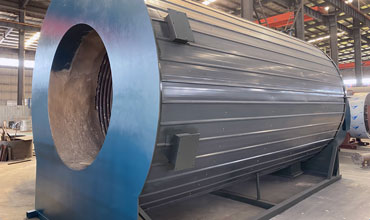

Question: What's structure of thermal oil boiler?

Vertical thermal oil heater, inside three pass coil & combustion chamber.

Quetion: What's the combustion device of YGL boiler?

Because of vertical type structure, YGL boiler adopt fixed grate device.

Quetion: How we get help when the boiler need install ?

The boiler has been assembly before the delivery, if possible, our engineer will go to your site for installation, or guiding the installation work by video online.
