Small Biomass Wood Hot Water Steam Boiler

Product capacity: 40kw-7000kw 65kg-10000kg
Working pressure: 0.1-3.8Mpa
Available fuel: Biomass, Wood, Pellets, Solid waste
Available industries: For Factory production line, Commercial usage, Central heating & District heating...

Yuanda Products:#Steam-Boiler #Hot-Water-Boiler #Steam-Generator #Thermal-Oil-Heater-Boiler #Hot-Air-Furnace #Exhaust-gas-boiler

Introduction

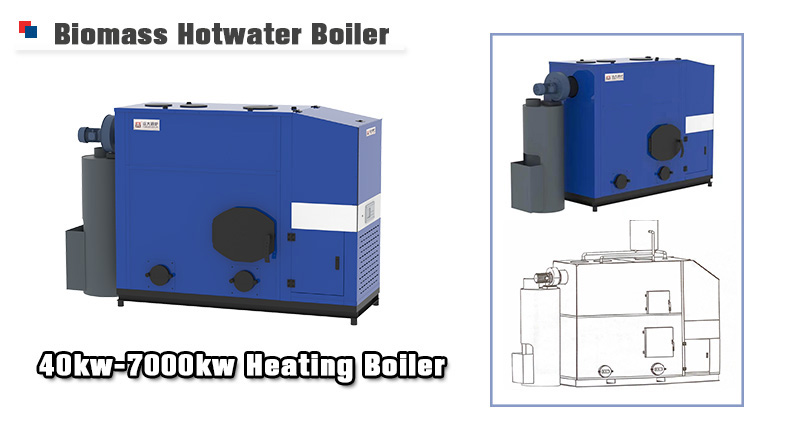

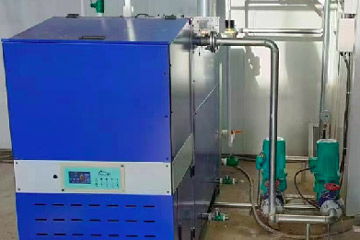

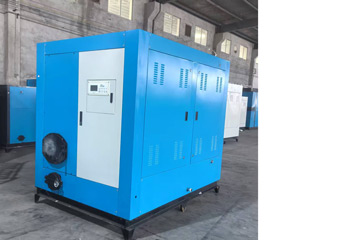

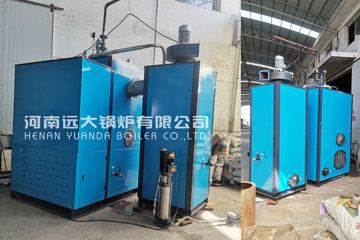

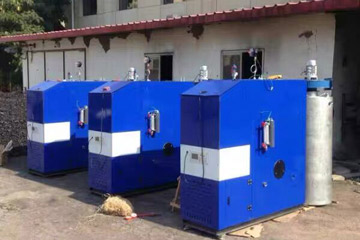

Biomass Wood Fired Boiler

Capacity: 40kw-7000kw 65kg-10000kg

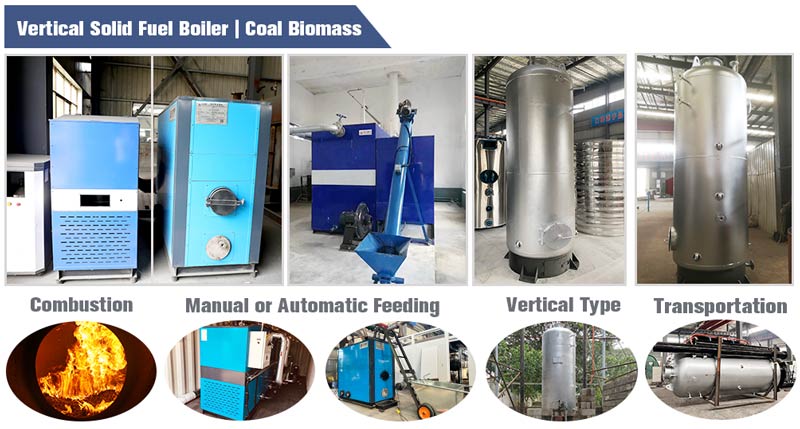

Vertical biomass wood fired hot water & steam boiler, including fixed grate type & reciprocating grate type. It adopts water-tubes & fire tubes design for heat transferring. Thermal efficiency is about 85%.

biomass hot water boiler,biomass heating boiler,central heating boiler

Product Advantages

1. Energy Saving

Compared to expensive electricity power, biomass energy will help saving cost, with a low biomass consumption cost.

2. Efficienct Heat Exchange

Inner structure using water-tube & fire-tube transferring heat, thermal efficiency up tp 85%.

3. Flexible Assembly

Cause its small size appearance, available for nearby installation, it will help save little heat loss in pipelines.

4. Easy Into Use

It don't need set a boiler room, simple to install, one-botton start up/off, automatic ignition, auto-control system.

5. Intelligent Control

Automatic control system for work-pressure, water-level, biomass fuel feeding, combustion stage.

6. Modular Integrated Design

Compact structure, beauty appareance, light weight, available to move everywhere.

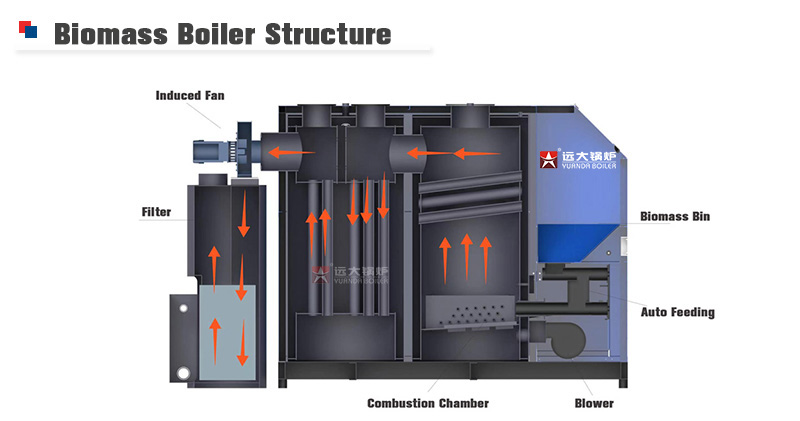

steam generator structure,biomass pellets steam generator,wood pellets steam generator

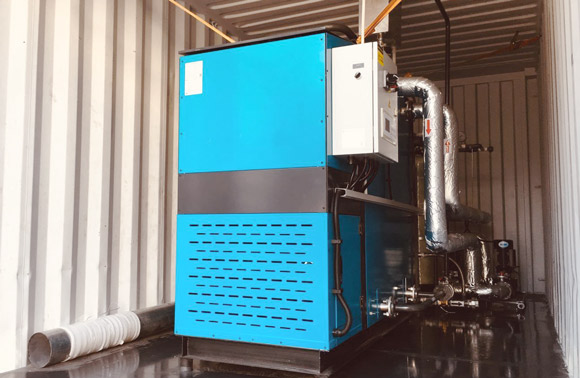

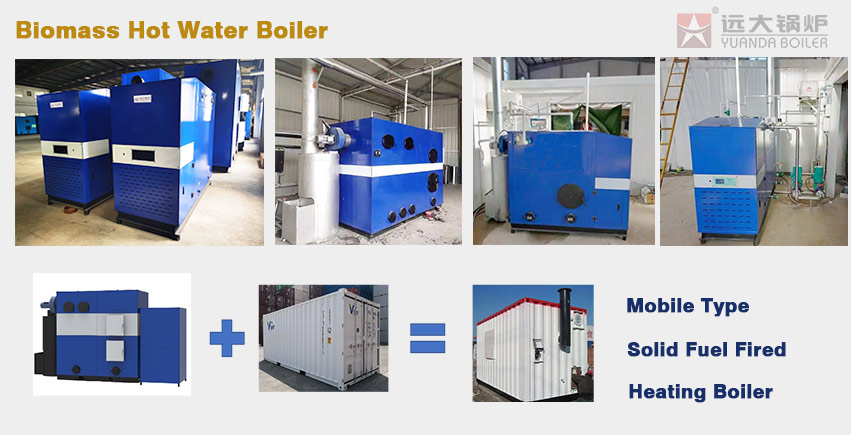

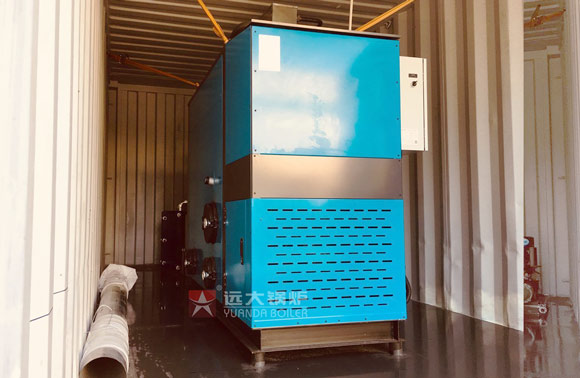

Customized Mobile Biomass Boiler

Portable type biomass hot water boiler in container. (Heating system customized for any customer needs.)

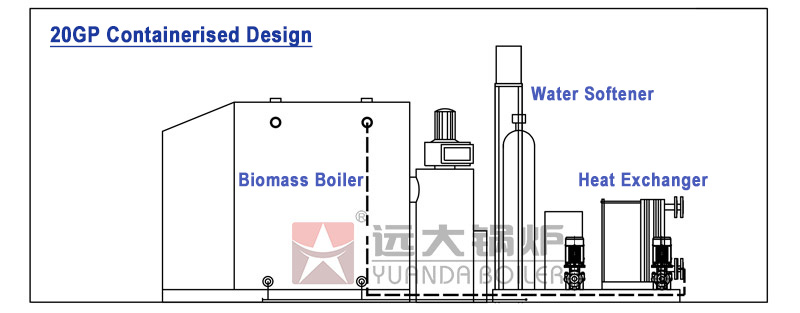

mobile biomass boiler diagram,containerised biomass boiler diagram,biomass central heating boiler

1. Biomass hot water boiler in a container, which is specially prepared for buildings - where there is no enough space for the boiler and fuel room.

2. Containerised mobile type biomass boiler plants are fully operational biomass heating systems built inside a custom made container with fire-resistant walls. They include a silo, a boiler, the automation and all the electrical works and plumbing already made in the factory. They are easy to install and easy to relocate.

mobile biomass heating boiler,containerised biomass boiler,mobile central heating boiler

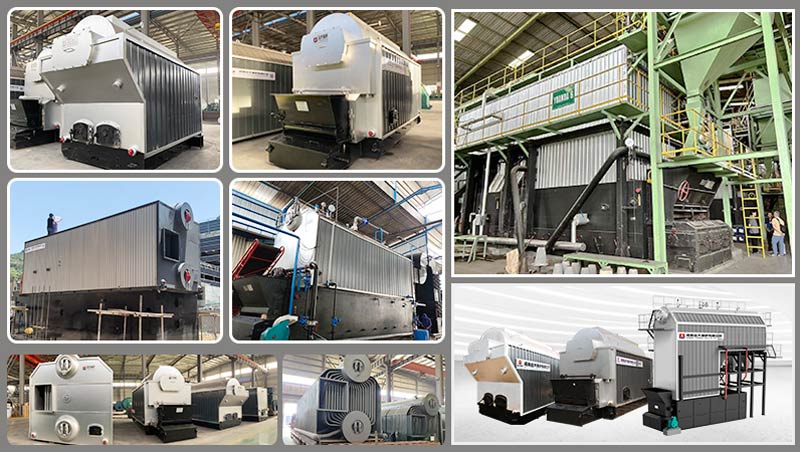

> Related Biomass Fired Boiler

Biomass steam boiler, Biomass hot water boiler. 1ton-50ton, 0.7mw-35mw.

biomass fired boiler,industrial biomass boiler,biomass steam boiler

> How to Choose A Suitable Boiler

1. Basic Boiler Information For Your Project

Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.

Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)

Heat medium options: saturated/superheated steam, hot water, thermal oil.

Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler

Layout options: Vertical boiler, Horizontal boiler.

Operating-mode options: Automatic, manual

Note: please feel free to send all requirements, we could help you better.

2. Calculating Running Cost

Specific consumption analysis report

Different types boiler running consumption comparison analysis report

(Note: Report is based on your local energy source price)

3. Boiler Accessories (essential or optional)

Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.

Note: Any special request, please send all details.

yuanda boiler,china boiler supplier,industrial boiler supplier

Technical Parameter

Model CWHS-0.041 CWHS-0.058 CWHS-0.088 CWHS-0.12 CWHS-0.175 CWHS-0.24 CWHS-0.35 CWHS-0.54 CWHS-0.7 CWHS-1.05 CWHS-1.4 CWHS-1.75 CWHS-2.1 CWHS-2.8 CWHS-4.2 CWHS-5.6 CWHS-7.2
Working pressure Atmospheric TYPE
Thermal efficiency 0.93
Rated out put (×10⁴kcal) 3.5 5 7.5 10 15 20 30 45 60 90 120 150 180 240 360 480 600
Heating area 350 500 750 1000 1500 2000 3000 4500 6000 9000 12000 15000 18000 24000 36000 48000 60000
Rated voltage(V) 220V 380V
Induced fan power(W) 120 180 250 250 370 550 750 1100 1500 2200 3000 4000 7500 11000 18500 18500 21000
Fd fan power(W) 85 120 240 240 320 400 500 550 550 2200 2200 3000 5500 7500 11000 15000 15000
Chimney Diameter(mm) 114 140 165 165 165 165 165 273 273 273 273 325 325 375 700 800 900
Circulating water volume(T) 0.875 1.25 1.875 2.5 3.75 5 7.5 11.25 15 30 30 37.5 45 60 90 120 150
Water inlet and outlet diameter(mm) 39 51 51 51 68 68 76 89 89 108 108 140 140 140 180 203 228
Dust collector Φ380×1050 Φ380×1050 Φ400×1170 Φ400×1170 Φ460×1220 Φ460×1300 Φ480×1600 Φ700×1750 Φ700×1800 Φ800×2100 Φ800×2040 Φ800×2085 Φ900×2090 Φ900×2095 Φ1000×2180 Φ1000×2250 Φ1000×2300
Fuel consumption(kg/h) 6.7 9.5 14 19 29 38 57 86 114 171 229 286 343 457 686 914 1143
Boiler size L(mm) 1725 1780 1950 1965 2135 2230 2330 2735 2935 3260 3110 3750 4010 4340 5200 5600 6300
W(mm) 700 700 800 763 850 975 1100 1170 1300 1470 1560 1720 1850 1980 2500 2800 3250
H(mm) 1335 1420 1370 1460 1600 1890 2100 2200 2400 2270 2245 2535 2600 2880 3380 3500 3800
Fuel silo size L(mm) Integrated design of boiler and silo 1250 1250 1600 1600 1500 1500 1700 1980
W(mm) 1160 1160 1200 1200 1450 1450 1650 1700
H(mm) 2110 2110 2330 2330 2980 2980 3380 3680
Shipping weight(kg) 350 450 700 850 1100 1300 1800 2400 3000 4000 5000 5800 6800 12000 15000 18000 20000

Our Supply Equipment List

Biomass Boiler
Water Tank
Water Softener
Heat Exchanger
Water Pump
Valves
Gauges
Induced Fan
Chimney
Pipes
......
......

Boiler Features

biomass heating boiler

Combustion Show

Automatic ignition & combustion stage. Show biomass pellets combustion, burning at high efficiency, strong power.
biomass boiler,central heating boiler

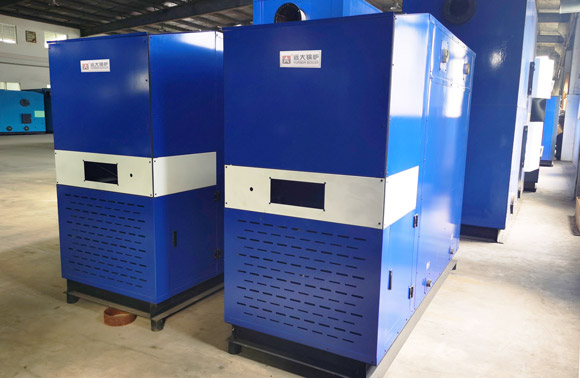

Modular Integration

Compact structure and light weight; One-button start up/off; Automatic control system; Available to move everywhere.
water treatment device,water softener,water softener device

Water Treatment Device

Hard water is softened by removing the hardness minerals in the water through a process called ion exchange.
biomass boiler contral cabinet

Controller Cabinet

Support customized service on control system, pls send your requirements.
