Industrial Boiler For Electricity

Product capacity: 10ton to 50ton
Working pressure: 0.7Mpa-3.8Mpa
Available fuel: coal, biomass, woodwaste, bagasse, ricehusk, coconuts, palm shells, biomass solid waste
Available industries: For steam turbine electricity generating and supply heat for productions in factory

Key selling points:Industrial steam boiler generate electricity 0.5mw 1mw 2mw 3mw 4mw 5mw


Industrial Steam Boiler, for turbine generating electricity

Notice: if you have inquiry, pls send to service@yuanda-boiler.com

Question 1: what capacity mw or kw/kv electricity generation for your need? such 500kw, 1mw, 2mw, 3mw, 4mw, 5mw

Question 2: are there some requirements on technical details ? such capacity, pressure, temperature, etc.

Question 3: do you need boiler for electricity only ? or you use part steam for productions in factroy, part for electricity ?

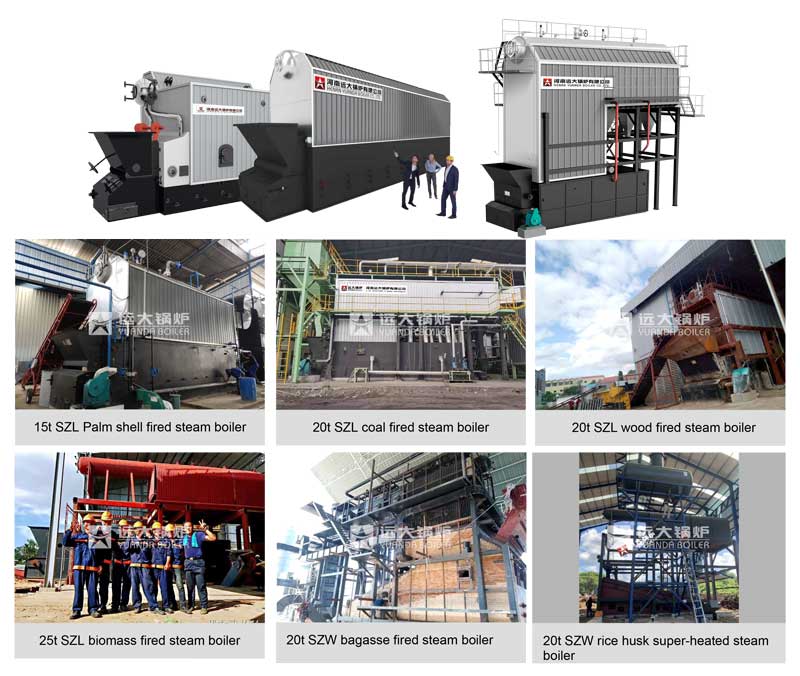

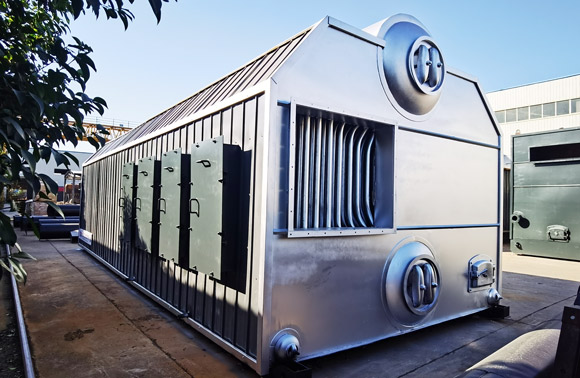

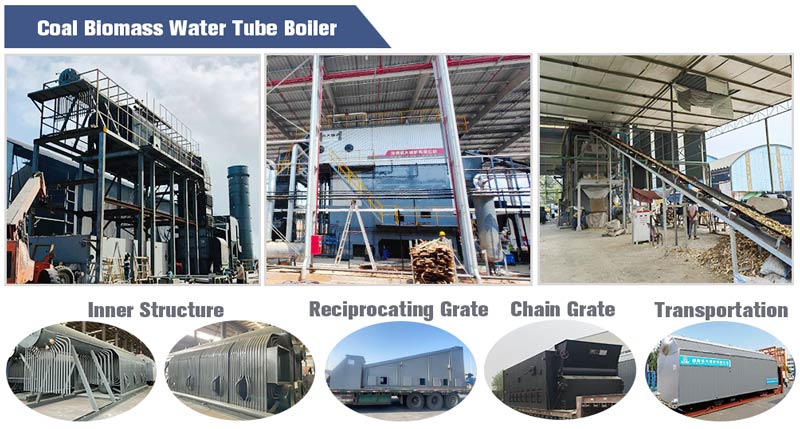

Water Tube Biomass/Coal Boiler 10ton to 40ton

Yuanda SZL series water tube boiler, water membrane walls design & double drums layout "A"  type structure, equipped with combustion device: chain grate/reciprocating grate.

szl biomass boiler,szl steam boiler,szl water tube boiler

industrial boiler use biomass,biomass fuel boiler,biomass steam boiler

SZL Water Tube Boiler Advantages

1. Cyclone chamber structure, high-temp flue gas through high-speed rotation/mixing combustion/dust separation, achieving dust removal & energy saving & environmental protection.

2. Indenpend wind chamber structure, make air regulation sensitive and make wind uniformly, resolve the wind plug, wind channeled, partial burn phenomenon.

3. Membrane water wall construction, structure advantages of high heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness of furnace wall.

biomass boiler,biomass wood boiler,palm shells boiler

Related: SZS Water Tube Gas Oil Boiler

10ton-50ton Gas/oil fired boiler, superheated steam boiler for steam turbine generating electricity.

szs gas oil boiler,szs steam boiler,water tube gas oil boiler

> How to Choose A Suitable Boiler

1. Basic Boiler Information For Your Project

Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.

Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)

Heat medium options: saturated/superheated steam, hot water, thermal oil.

Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler

Layout options: Vertical boiler, Horizontal boiler.

Operating-mode options: Automatic, manual

Note: please feel free to send all requirements, we could help you better.

2. Calculating Running Cost

Specific consumption analysis report

Different types boiler running consumption comparison analysis report

(Note: Report is based on your local energy source price)

3. Boiler Accessories (essential or optional)

Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.

Note: Any special request, please send all details.

yuanda boiler,china boiler supplier,industrial boiler supplier

Technical Parameter

SZL Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
SZL2 2 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >83.13 6.76 130.7 385.8 22
SZL4 4 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.23 5.1 142 807 29
SZL6 6 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.81 8.4 142 1209 34
SZL8 8 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >85.02 9.4 149.1 1563.9 40.5
SZL10 10 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.2 8.35 152.7 2149.3 24
SZL12 12 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.56 12.8 148.7 2399.7 37
SZL15 15 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.29 15.2 149.8 2568.4 24.7
SZL20 20 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.8 15.5 147.4 4266.9 26
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Our Supply Equipment List

Fuel Feeder
Grate Speed Reducer
Slag Remover
Water Treatment Device
Water Pumps
Water Tank
Forced/Induced Fan
Smoke Clean Equipment

Boiler Features

biomass palm shells boiler,chain grate boiler

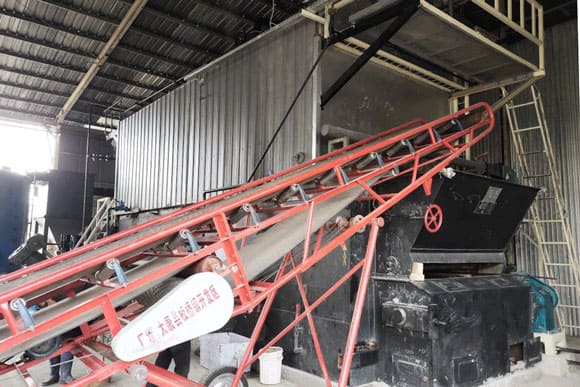

Unique warehouse and auto feeding

The big speed bin design could control fuel transmit mass automatically according to the thermal energy, isolate flame and flue to prevent tempering
water tube biomass boiler, palm shells water tube boiler

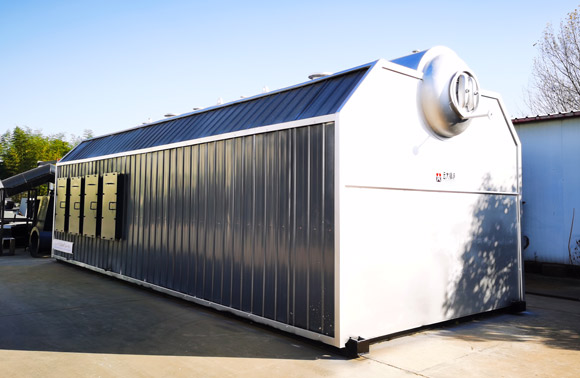

Whole membrane water wall

Increased 50% heating area than traditional, refractory brick furnace wall will reduce weight and transport cost, improve efficiency and energy saving
automatic biomass boiler,biomass plam shell steam boiler

Security guaranteed & Automation

With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
environmental friendly biomass boiler,water tube biomass boiler

Economizer & Dust collector device

Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollution

FAQ of SZL Boiler

Question: what's thermal efficiency of SZL biomass boiler?

Answer: SZL biomass boiler has higher efficiency than other old design boiler, take 10ton palm shells boiler example, thermal efficiency>86.2%

Question: Are there other biomass boiler models ?

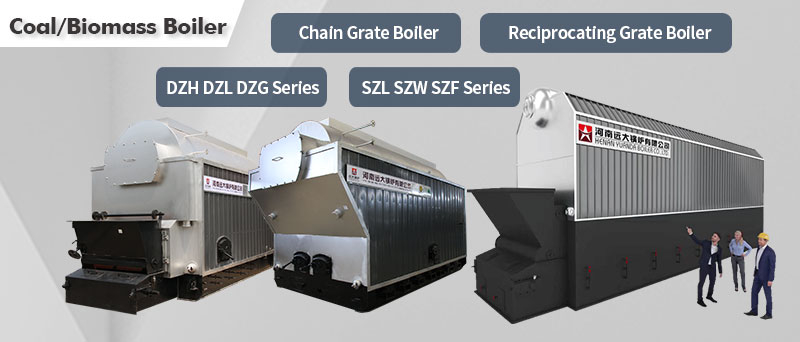

Answer: Yes, including dzl chain grate biomass boiler, dzh biomass boiler, vertical biomass boiler, chain grate boiler, reciprocating grate boiler...

Question: Do you support customized boiler service for projects?

Answer: Yes, we have technique research center team, make unique boiler solution. Tell about your requirements, let's have more discuss.

Question: Do you supply complete accessories for boiler system?

Answer: Yes, we supply all accessories such water treatment device, economizer, ID fan, forced fan, slag remover, sawdust collector...

Question: Do you supply installation services ?

Answer: Our senior engineer Mr.Gao already arrived 50+countries for boiler services. Now, we adapt online video guidance for quick services.
