Wood Fired Boiler
 Product capacity: |
0.1t/h-50t/h 100kw-35000kw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Wood, wood chips, wood logs, woodwaste, biomass fuel, solid waste |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Key selling points:Automatic or manual wood fuel (chips, waste, pellets, dust) burning boiler, easy operation & sufficient steam output & high quality steam & lower investment & long using life 20+ years
Introduction
Wood Steam Boiler | Wood Hotwater Boiler

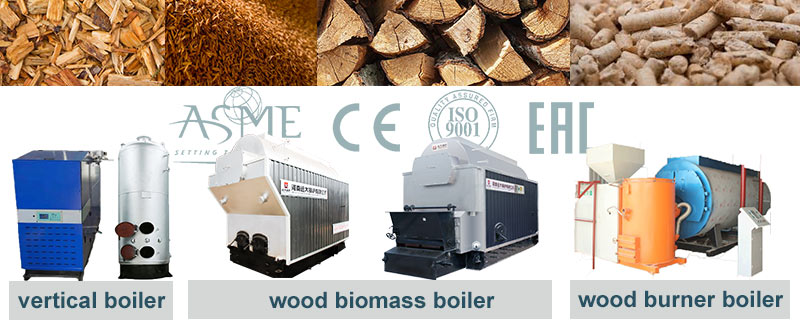

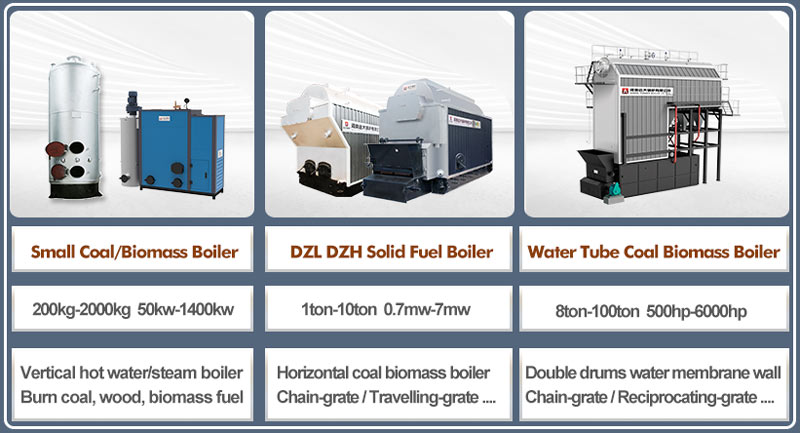

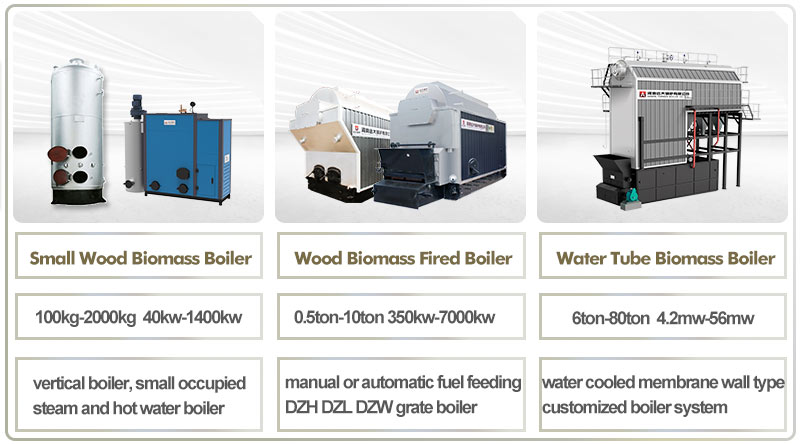

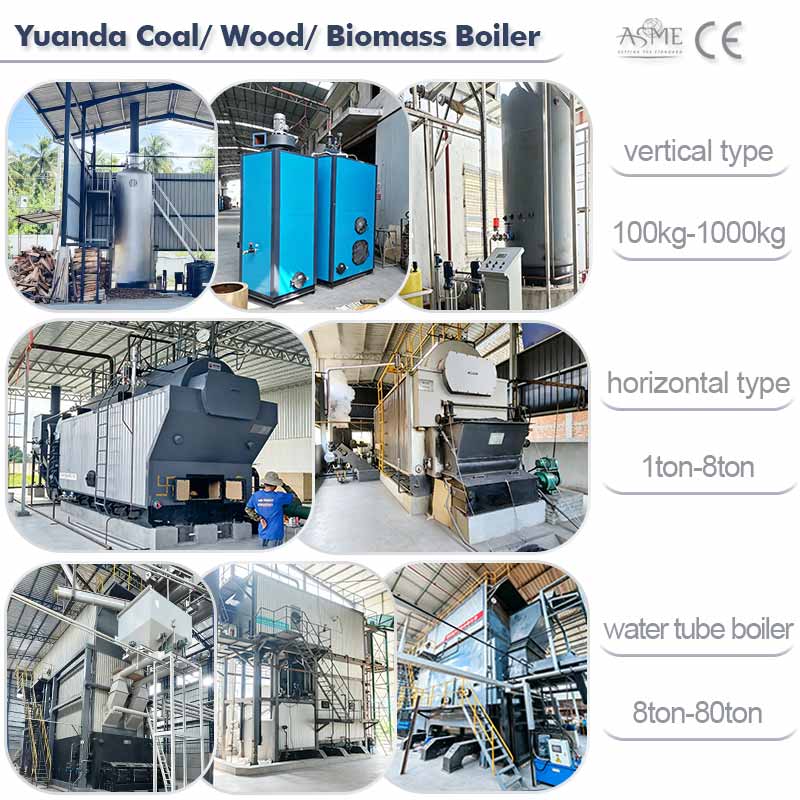

We manufacture kinds of wood fired boilers, to satisfty customers' demand. Available capacity in 300kg to 50,000kg | 300kw to 35000kw.

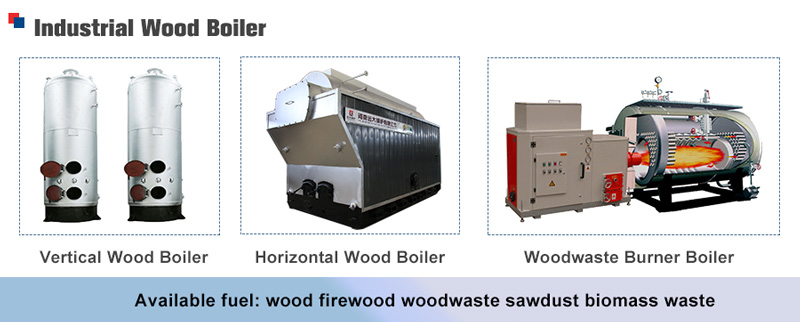

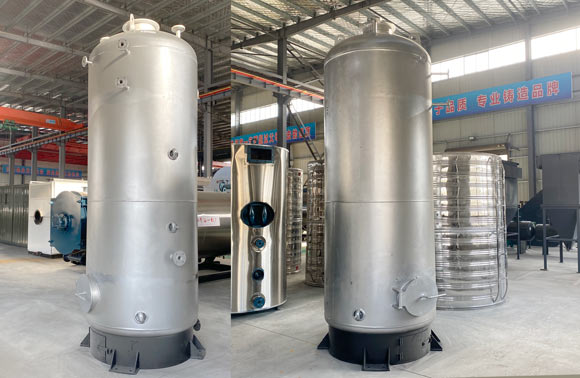

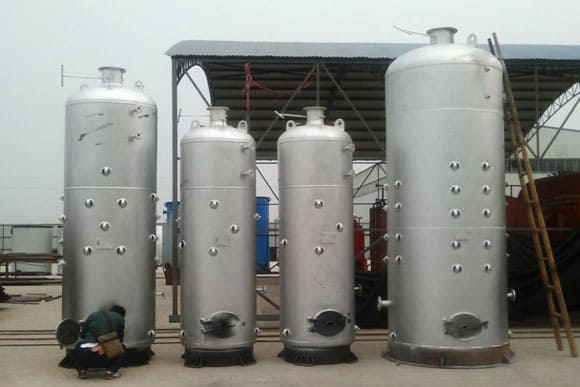

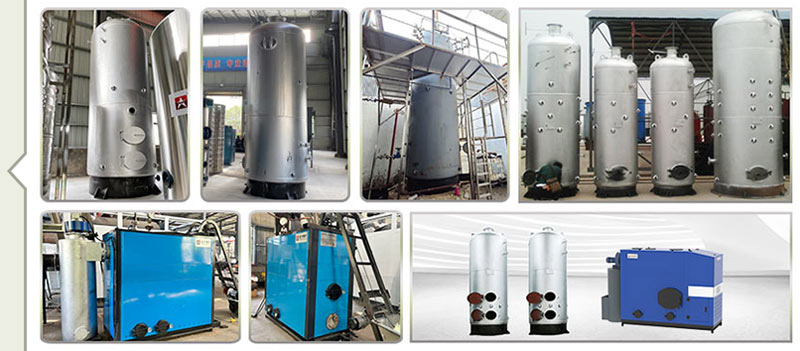

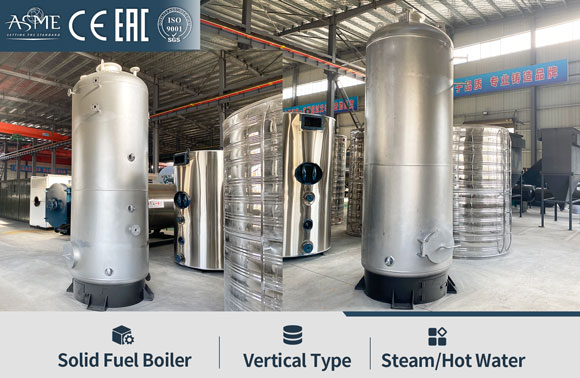

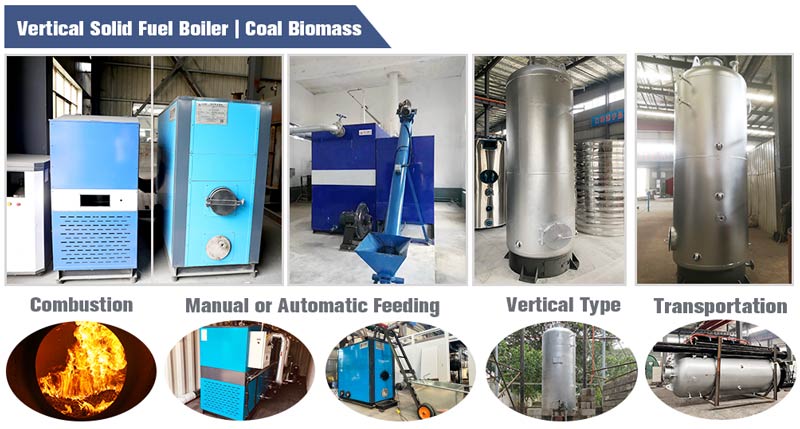

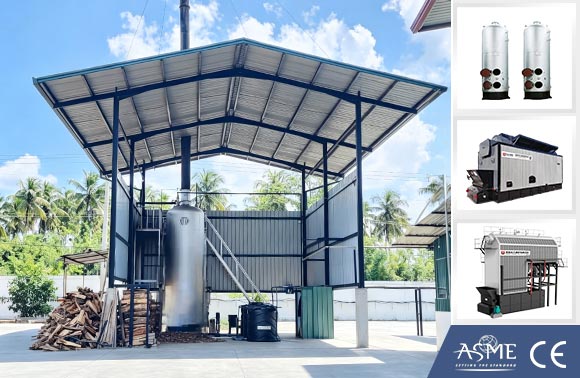

1. Vertical wood boiler, capacity in 300kg to 1000kg | 200kw to 700kw
2. Horizontal wood boiler, capacity in 1ton to 10ton | 0.7mw to 7mw
3. Wood burner boiler, capacity in 0.5ton to 10ton | 0.35mw to 7mw

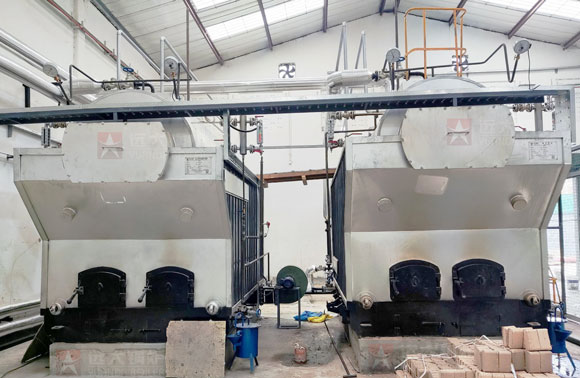

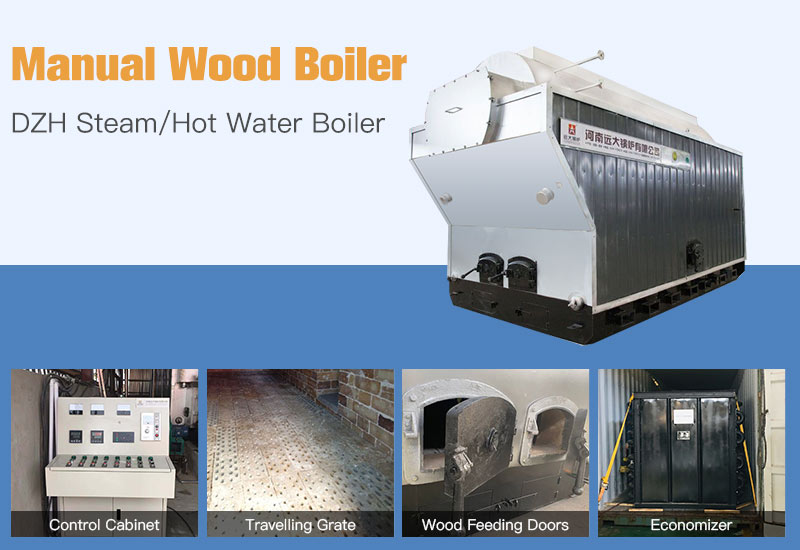

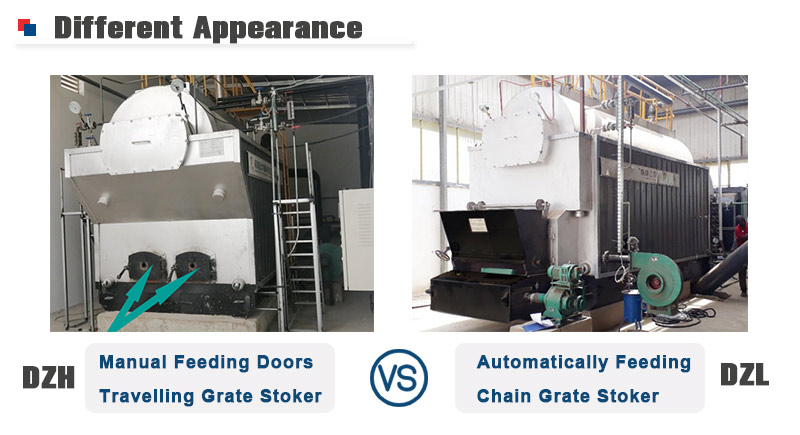

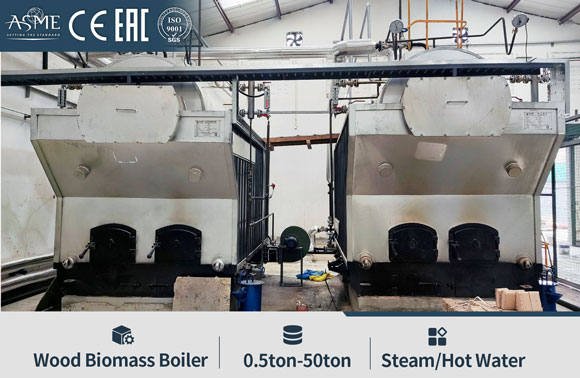

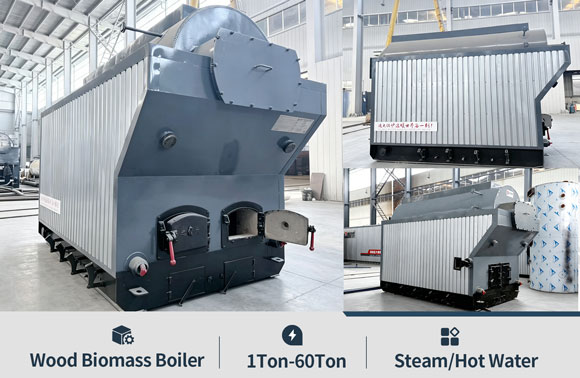

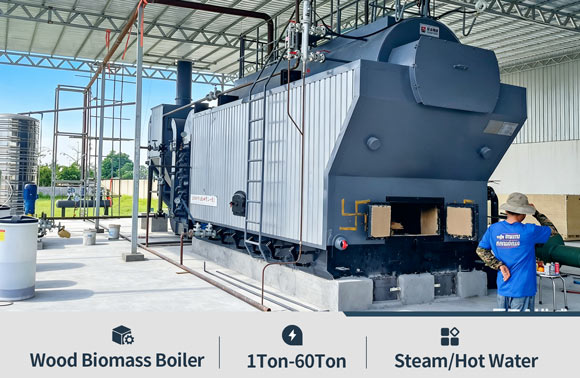

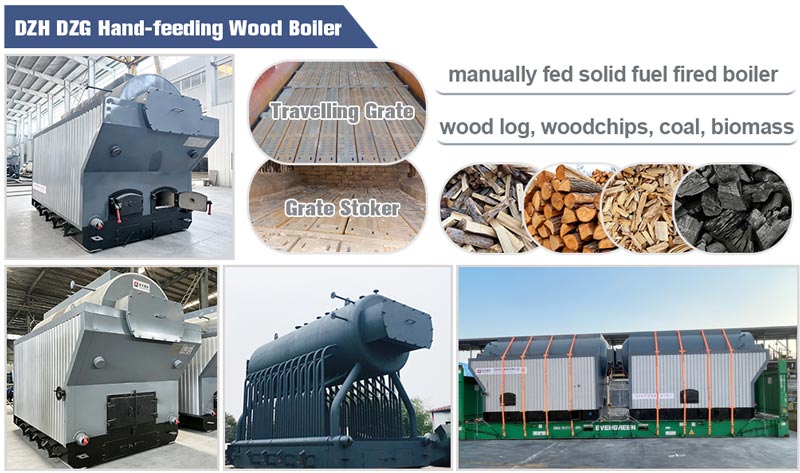

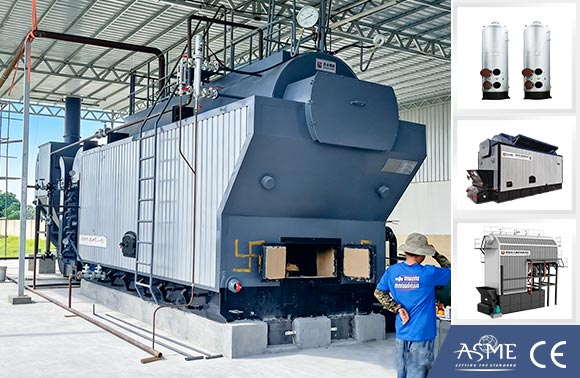

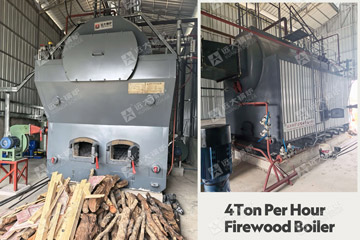

Most popular-DZH Horizontal Wood Boiler

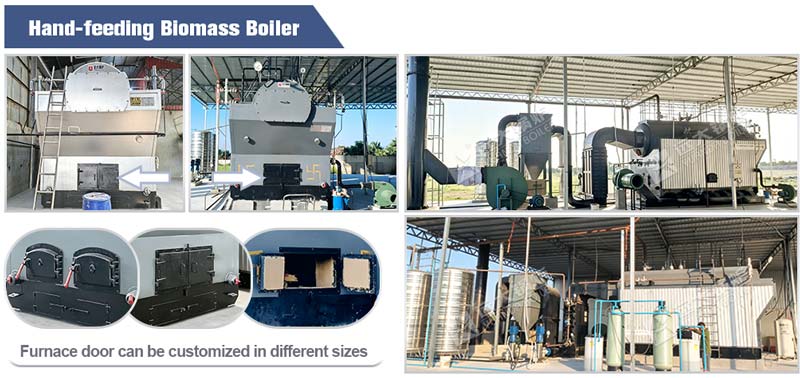

1. DZH is kind of manual wood boiler, water-fire tubes & wing shape flue structure . Sufficient steam power, steady boiler running for 24 hours' work consistantly.
2. Equipped energy-saving device, eco-friendly emission strandard, low original dust discharge concentration, environmental protection and energy conservation.
3. Generate high quality steam quality, equipped water treatment device and economizer devices. Long life span than 25Years, offer whole life service for boiler.

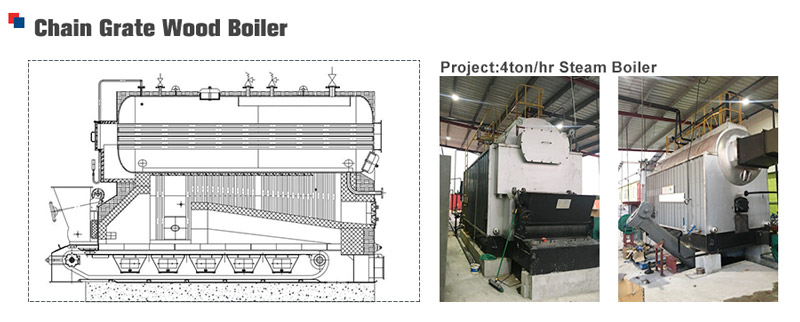

Related: Automatic Chain Grate Wood Boiler

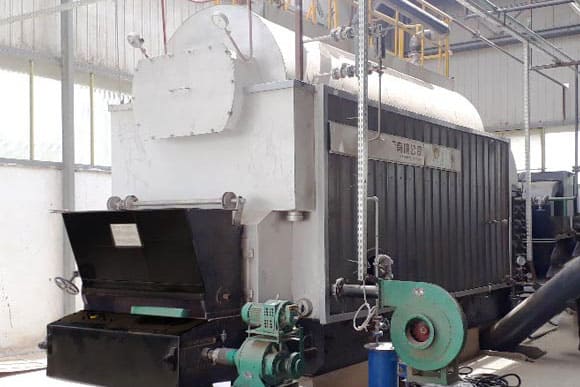

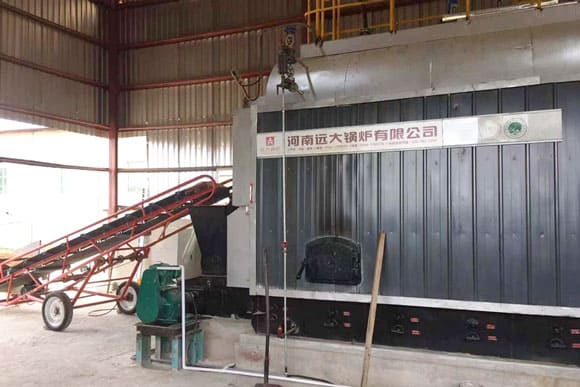

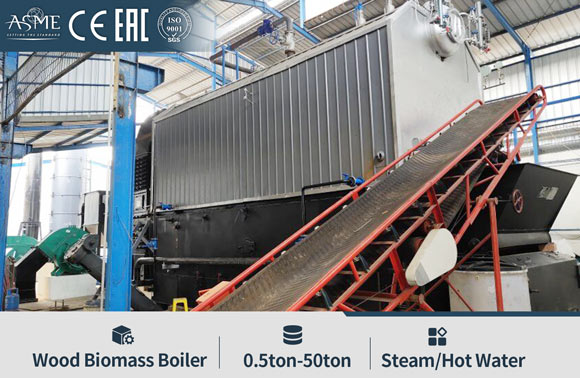

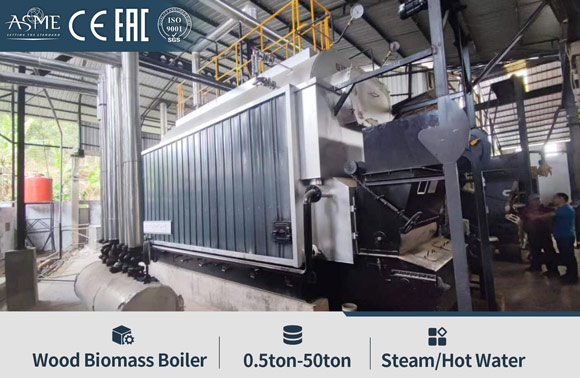

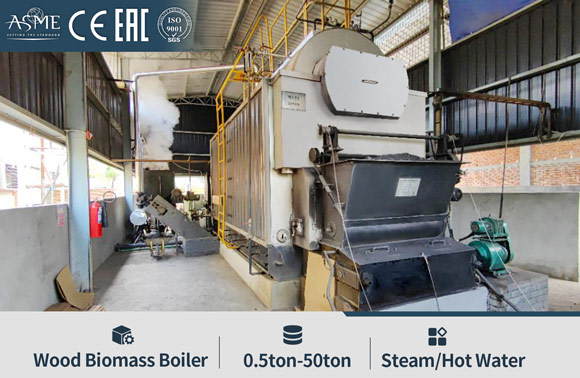

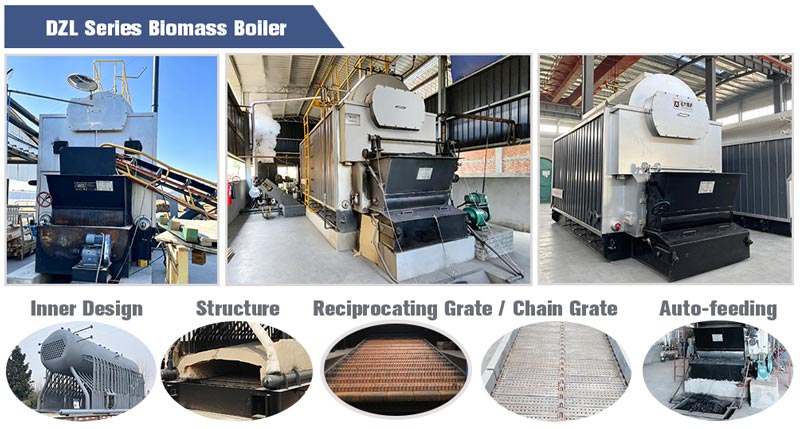

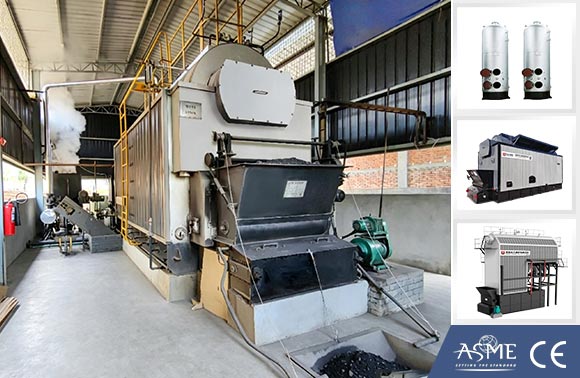

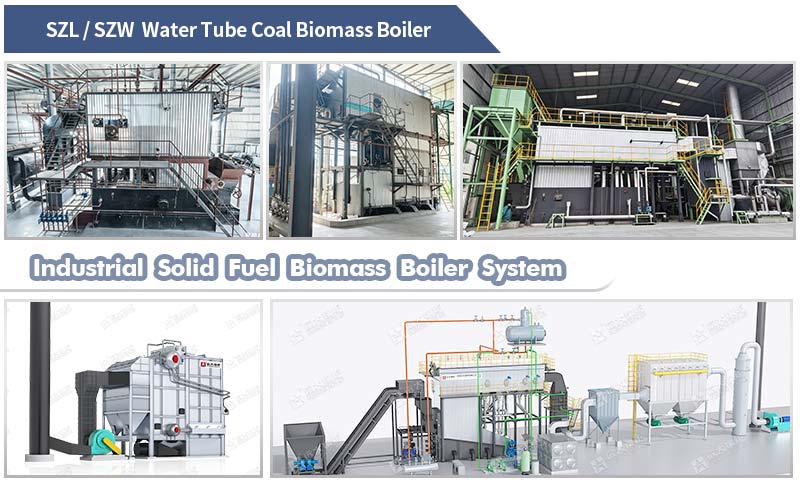

Yuanda DZL series wood biomass boiler, it's kind of chain grate boiler with auto feeding system, work automatically & higher efficiency.
Technical Parameter
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||

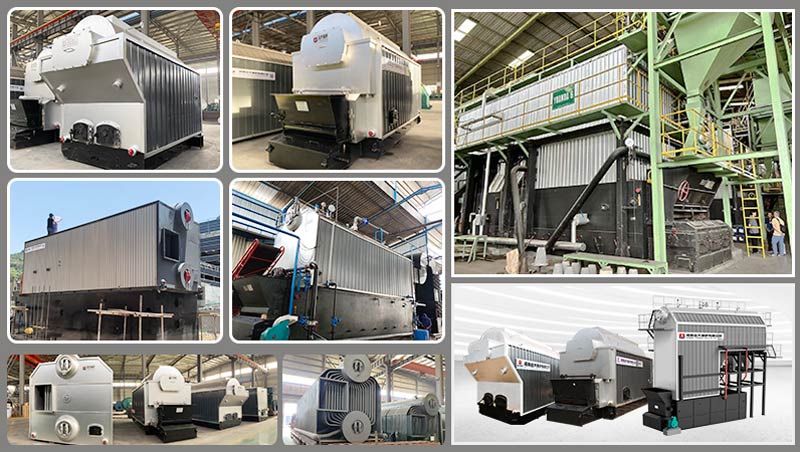

Our Supply Equipment List

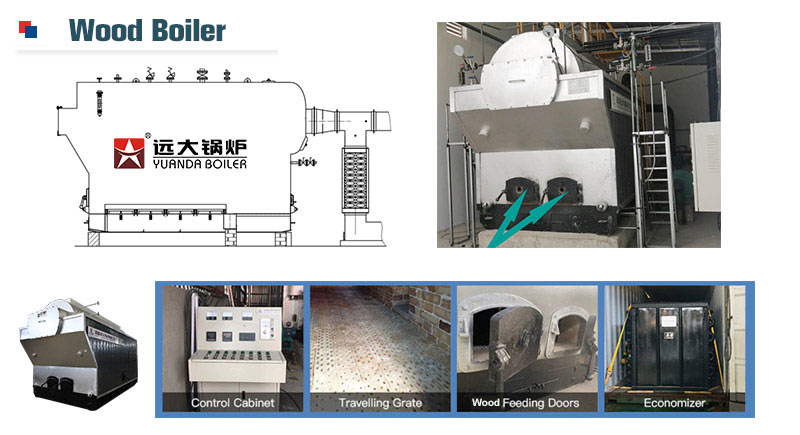

Boiler Features
Chain grate/Reciprocating grate
Auto-feeding type burning system, avoid problem of air leakage, fuel leakage and uneven ventilation. Easier operation compared to traditional grate.
Fire tubes & Wing shape structure
Strengthening heat transfer, eliminating welding stress, enhance heat transfer bility, reduce heat stress of pipeline seam, prevent pipeline cracking.

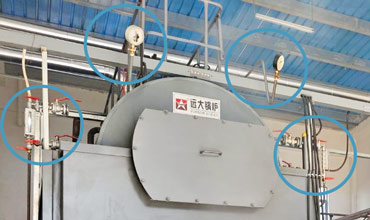

Security guaranteed & Automation
With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly

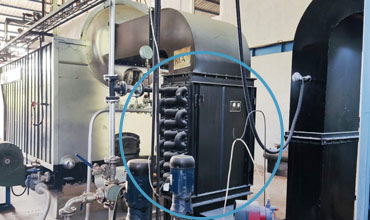

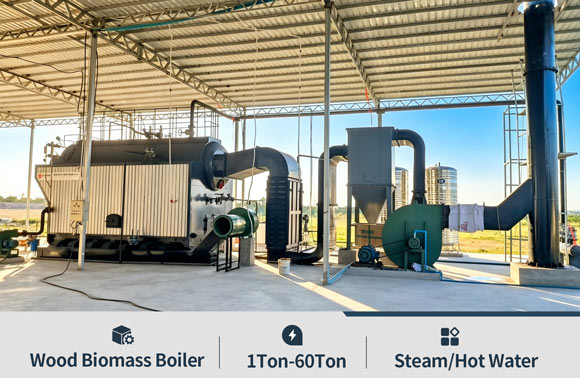

Economizer & Dust collector device
Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollutionPRODUCT LIST
