Biomass Hot Water Boiler
 Product capacity: |
100kw-35000kw 10,0000Kcal-24millionKcal |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Biomass, coal, wood, sawdust, shells, husk, peanuts, jhute, waste fuel |
 Available industries: |
Heating Water, Center Heating For Buildings, Greenhouse, Hospital, School, Hotels, Drying, Washing.... |
Key selling points:DZL DZH automatic or manual biomass wood (chips, waste, pellets, dust) fired hot water boiler, easy operation & quick strong heating & lower investment & long using life 20+ years
Introduction
Biomass Hot Water Boiler
Available fuel: biomass waste, woodchips, sawdust, pellets, palm shells, ricehusk, coconuts, palm fibre, solid waste.

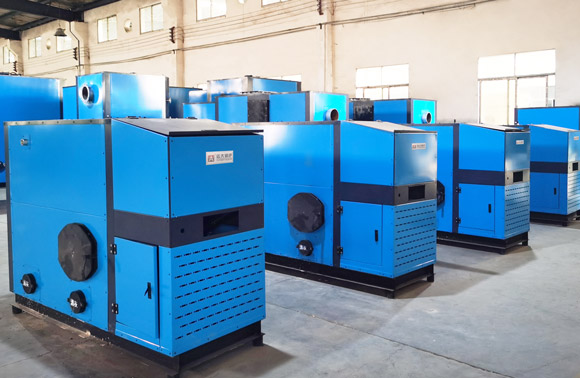

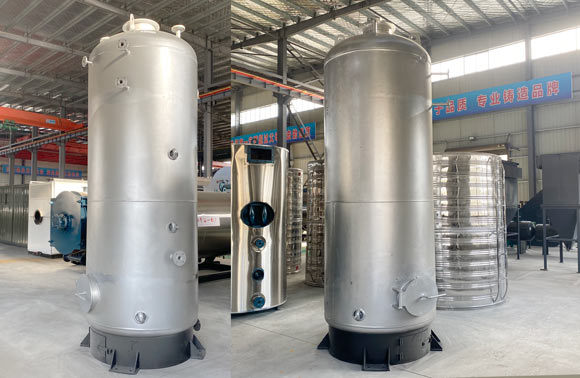

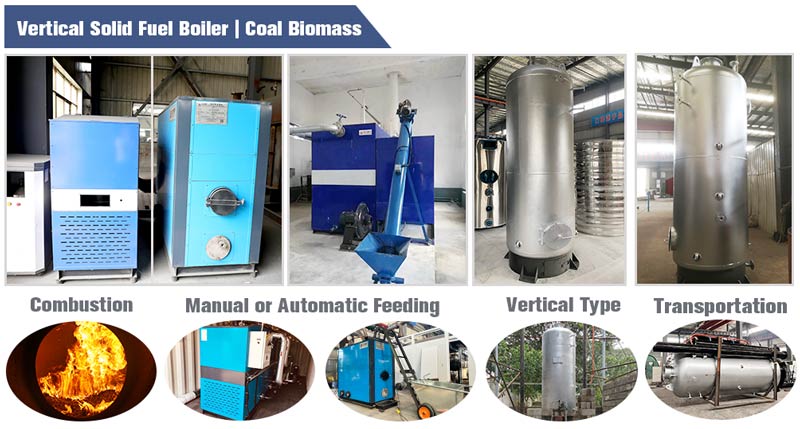

1. Small vertical biomass boiler, suitable for 100kw to 1400kw thermal capacity boiler.

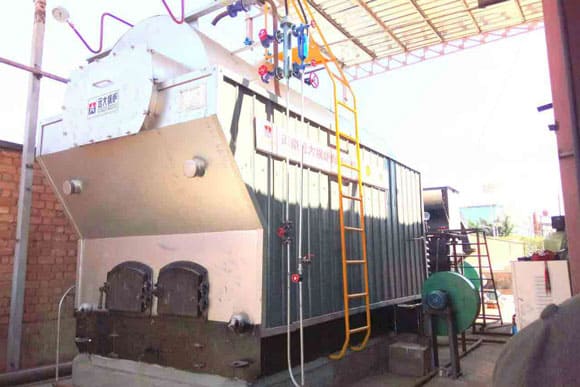

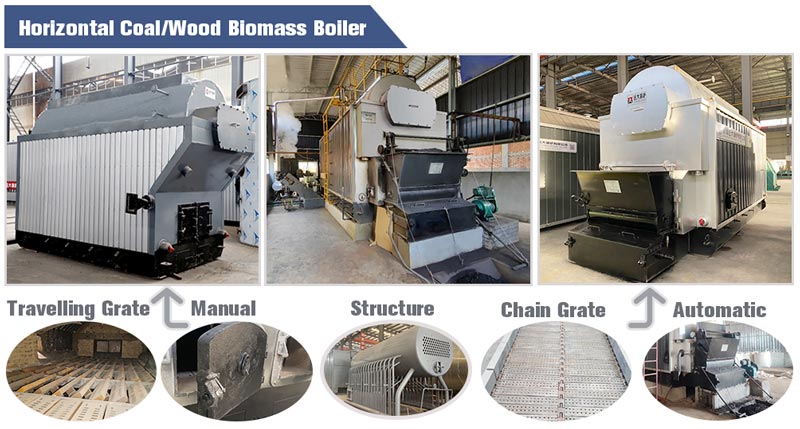

2. Horizontal biomass boiler, including manaul type biomass boiler and automatic type biomass boiler, capacity in 0.7mw to 35mw.

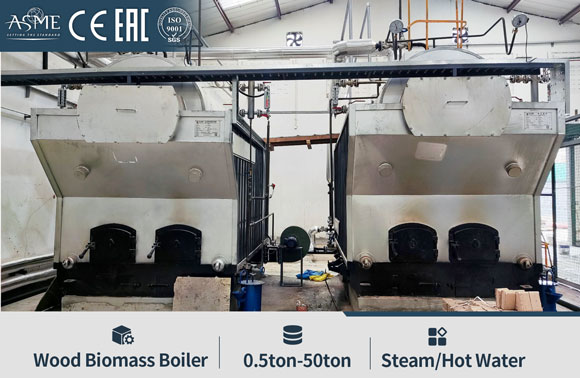

Most Popular Biomass Boiler DZL

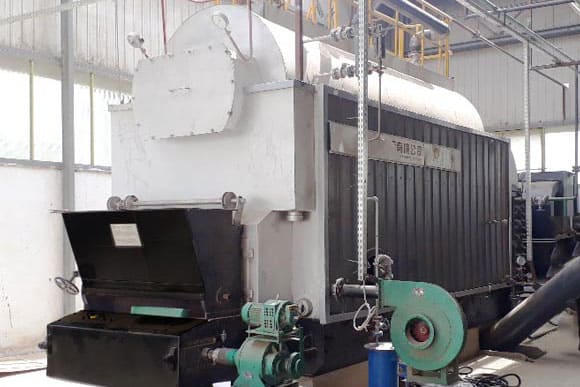

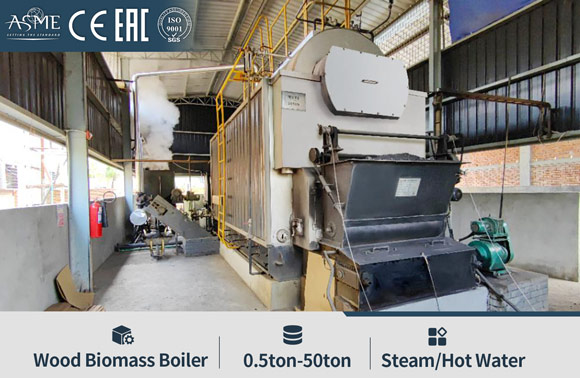

1. DZL biomass fired stoker boiler, it's automatic type biomass boiler, use chain grate stoker furnace.
2. Design features: Three pass sturcture help improve heat efficiency. Boiler inner use water tubes and fire tubes for heat conduction. Large combustion space in furnace with specifical husk burning furnace design, ensures higher burning efficiency. Automatic biomass feeding system, saving labor work and time cost.
DZL Biomass Boiler Advantages
1. DZL automatic chain grate biomass boiler, we could adjust the hand lever and button to control the feeding/combustions condition, can operate easily efficiently.
2. DZL biomass boiler, is famous with features "water-tube & fire-tube structure" "wing-shape flue" "unique boiler arch" "customized furnace according the biomass"
3. Make it environment-friendly, we will arrange devices such air-preheater/economizer/exhaust gas boiler, reuse the heat energy from high-temperature.
Related: Water Tube Biomass Boiler

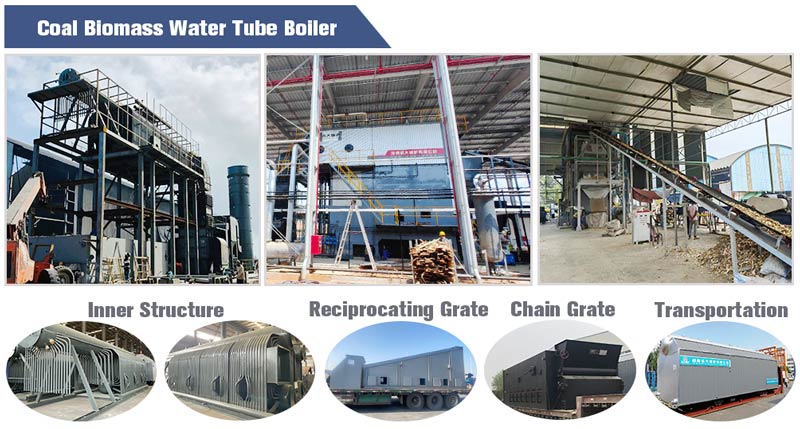

SZL double drums water tube biomass boiler in 2.8mw to 35mw
Related: Fire Tube Biomass Boiler
Automatic husk burner boiler, consist of husk burner & fire tube furnace.
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| DZL Series Biomass Hot Water Boiler Technical Parameter Table | ||||||||
| Model | Rated capacity(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Fuel comsumption（Kg/h） | Exhaust temperation(℃) | max transportation weigh(t) |
| DZL0.7 | 0.7 | 0.7 | 95/115 | 70 | ＞80 | 181 | ＜130 | 10 |
| DZL1.4 | 1.4 | 1.0 | 95/115 | 70 | ＞80 | 370 | ＜130 | 22.5 |
| DZL2.8 | 2.8 | 1.0 | 95/115 | 70 | ＞80 | 727 | ＜130 | 26.5 |
| DZL4.2 | 4.2 | 1.0 | 95/115 | 70 | ＞80 | 1080 | ＜130 | 35.7 |
| DZL5.6 | 5.6 | 1.0 | 95/115 | 70 | ＞80 | 1390 | ＜130 | 40.2 |
| DZL7.0 | 7.0 | 1.0 | 95/115 | 70 | ＞80 | 1726 | ＜130 | 25.6 |
| DZL10.5 | 10.5 | 1.0 | 95/115 | 70 | ＞80 | 2530 | ＜130 | 18 |
| DZL14 | 14 | 1.0 | 95/115 | 70 | ＞80 | 3390 | ＜130 | 19.9 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
Our Supply Equipment List
Boiler Features
Chain grate/Reciprocating grate
Auto-feeding type burning system, avoid problem of air leakage, fuel leakage and uneven ventilation. Easier operation compared to traditional grate.
Fire tubes & Wing shape structure
Strengthening heat transfer, eliminating welding stress, enhance heat transfer bility, reduce heat stress of pipeline seam, prevent pipeline cracking.
Security guaranteed & Automation
With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
Economizer & Dust collector device
Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollutionPRODUCT LIST
