Vertical Hot Water Boiler
 Capacity: |
60 kw-35 000 kw |
 Fuel: |
Natural gas, lpg, diesel, cng |
 Temperature: |
60°C-115°C |
 Application: |
Hotel, Greenhouse, Workshop, School, Buildings Central Heating, Factory heating process |
| Certificates: |
ISO, CE, ASME, DOSH, EAC, CRN |
Yuanda Products:steam boiler, steam generator, hot water heater boiler, thermal oil boiler.
Introduction

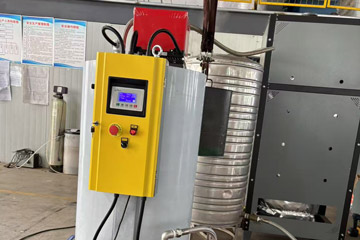

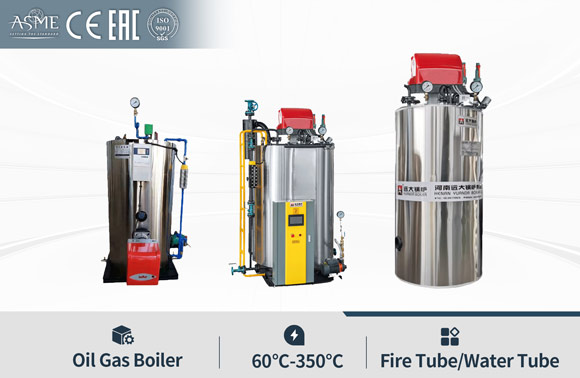

> Vertical Hot Water Boiler
LHS/LSS series vertical burner boiler, inner structure fire-tube/water-tube, two pass design.
Structure: Vertical, Water-tube or Fire-tube
Capacity: Min 60kw to Max 1400kw
> Vertical Boiler Features
1. Adopt multi-pass structure with top-fired burner. The flame can completely spread from the top to the bottom and burn sufficiently.
2. High thermal efficient 99%, fuel burning sufficiently, energy-saving and environment protection.
3. Adopt latest technology for big volume combustion room design, with worldly-class brand burner.
4. Corrugated furnace design, increases heat transfer area and thermal efficiency, prevent furnace cracking.
5. Low pressure operation, safety and quick steam generation.
6. Vertical type, small area occupied, low investment cost.

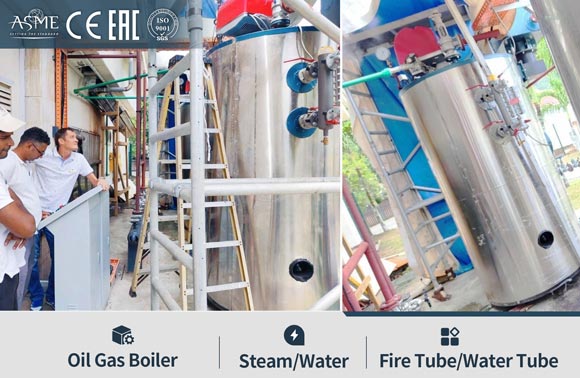

Why Choose Vertical Boiler
1. Meet the request for engineering and design

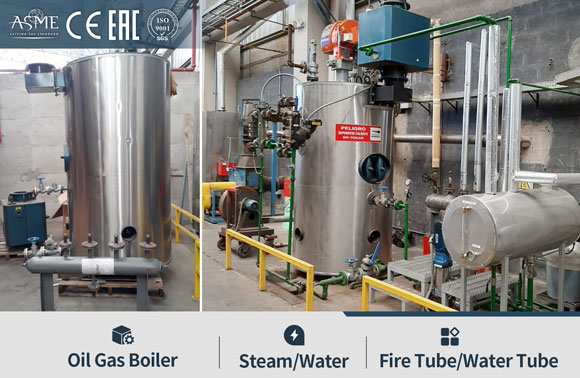

It covers a small area with the compact layout, the system is safe and reliable, and it can be installed in the narrow spaces such as basement, floor and roof. It has many functions like low failure rate and convenient maintenance.
2. Quick start hot water generating and supply load stability
Using the unique drum, high level design, large water capacity, the boiler has soft drinks plenty of room, it will take only 6~8 minutes from cold to full load status, has the function of stable supply load.
3. Delivery as self packaged, easy to install
Ready run products factory, small vibration, low noise, no equipment foundation, can be freely positioning, easy installation.

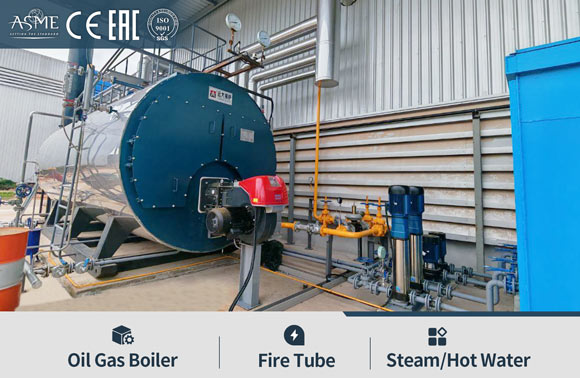

> Related: Horizontal Oil Gas Fired Boiler

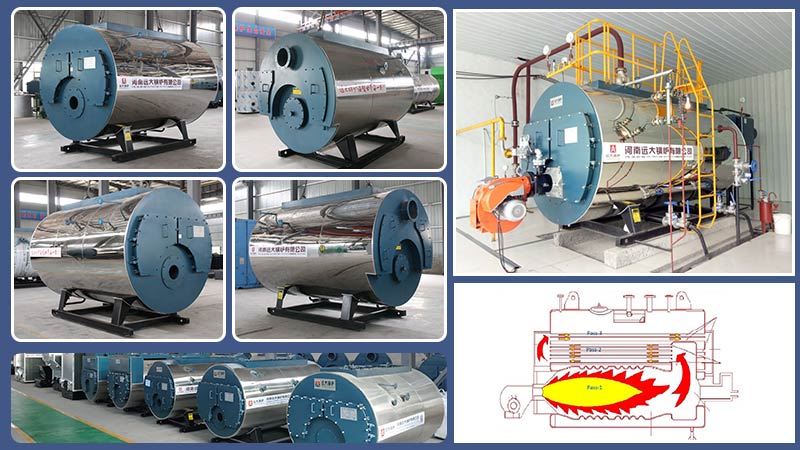

WNS series horizontal three pass boiler. Steam generator boiler & Hot water boiler.
Boiler Features
100% Safety
Strict quality control-ultrasonic flaw detection and water pressure test. Boiler equipped with good quality double gauges & safety valves.

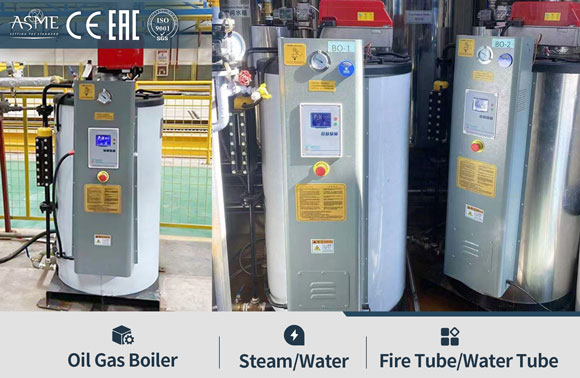

High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler.
Small Occupied Area
With small size footprint, Vertical boiler would not occupy much area, suitable for limited space
Easy Installation & Quick use
Vertical gas lpg diesel boiler, simple structure and clear boiler system, make installation work easier by remote guidance.Technical Parameter
| Model | Rated Power (kw) | Heat (104kcal) | Rated working pressure | Hot water temperature (℃) | Fuel comsumption | Net weight (kg) | ||
| diesel (kg/h) | natural gas(m³/h) | lpg (m³/h) | ||||||
| CLSS 0.06 | 60 | 5 | Customized | Customized | 5.4 | 5.8 | 2.5 | 390 |
| CLSS 0.12 | 120 | 10 | 10.8 | 11.7 | 5 | 420 | ||
| CLSS0.18 | 180 | 15 | 16.2 | 17.5 | 7.5 | 460 | ||
| CLSS 0.24 | 240 | 20 | 21.6 | 23.4 | 10 | 530 | ||
| CLSS 0.36 | 360 | 30 | 32.5 | 35 | 15 | 790 | ||
| CLSS 0.48 | 480 | 40 | 43.2 | 46.8 | 20 | 960 | ||
| CLSS 0.58 | 580 | 50 | 54 | 58.5 | 25 | 1460 | ||

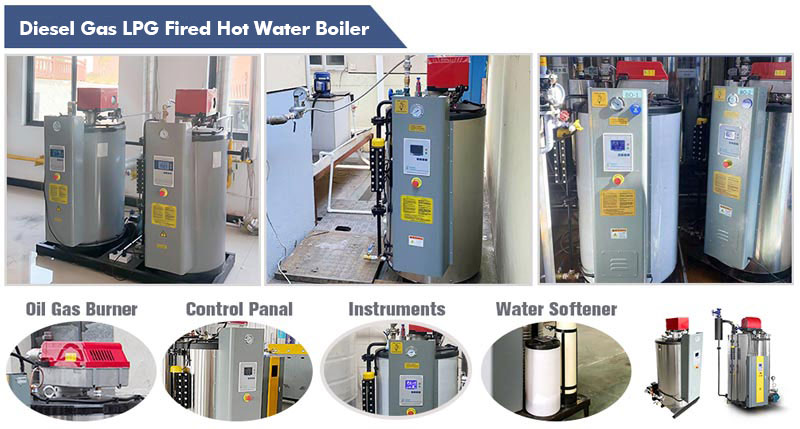

Supply Boiler & Accessories
Boiler Solution
Solutions for Various Industries
Provide customized hot water boiler solutions for hotels, hospitals, residential buildings, food processing plants, and industrial facilities requiring reliable hot water or central heating.
Customized for Your Hot Water Demand
Customize boiler capacity, hot water output, and supply temperature according to heating load, water consumption, and application requirements.
Energy Consumption & Operating Cost Analysis
Estimate fuel consumption and operating costs based on heating demand, operating hours, return water temperature, and local energy prices to help identify a suitable heating solution.
Complete Hot Water System Configuration
Integrate circulation pumps, expansion tanks, water treatment equipment, storage tanks, and temperature control systems according to project requirements.
Why Choose us
Complete Boiler Solutions – Customized boiler systems based on your required capacity, fuel type, working pressure, and application.
International Certifications – Manufacturing capabilities supported by ASME, ISO 9001, CE PED, EAC, DOSH, and CRN certifications, as applicable to the specific model and market.
Global Project Experience – Boiler equipment supplied to over 135 countries and regions, with installation and commissioning services completed in more than 60 countries.
Direct Manufacturer Support – Professional technical assistance from project consultation and equipment selection to installation and after-sales service.
Henan Yuanda Boiler Corp Ltd
We are a fully integrated manufacturer specializing in the design, engineering, manufacturing, installation, and after-sales service of industrial boilers and incinerators. Our products are available with internationally recognized certifications, including ASME, CE PED, ISO 9001, EAC, DOSH, and CRN.
With nearly 70 years of manufacturing experience and more than 20 years of export expertise, we supplied industrial heating equipment to over 135 countries and regions across Asia, Europe, Africa, North America, South America, and Oceania.
