Lpg/Gas/Diesel/Fuel Oil Fired Boiler
 Product capacity: |
0.1t/h-50t/h 10hp-3000hp |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Nature gas, lpg, diesel, heavy oil, waste oil, dual fuel, biogas, exhuast gas... |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Key selling points:10hp-3000hp WNS series horizontal fire tube boiler, package gas lpg oil boiler. Automatic energy-saving gas oil fired shell boiler, high steam quality, high efficiency >98%
Introduction
> Gas/Diesel/Oil fired boiler
Certified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, ensuring high quality and compliance with international standards.

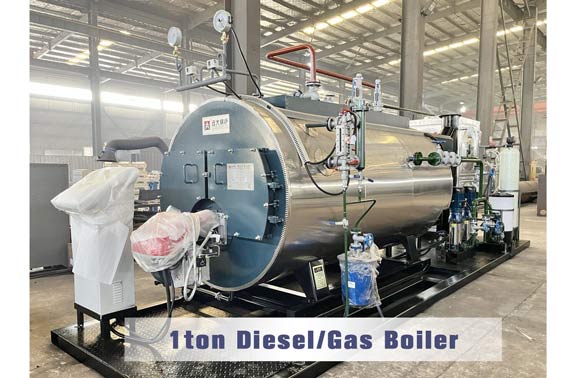

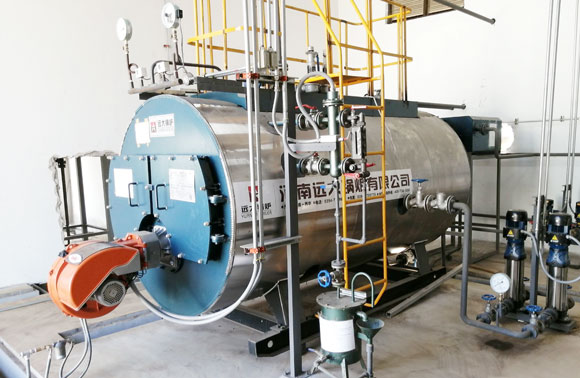

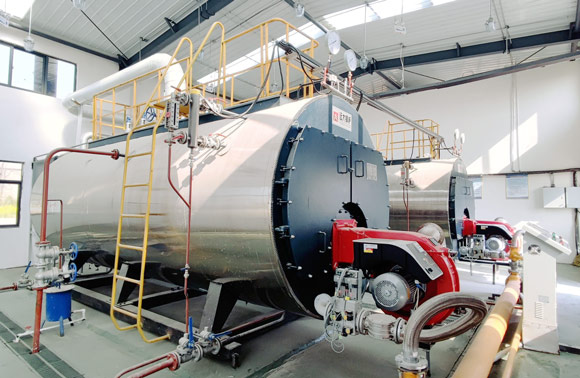

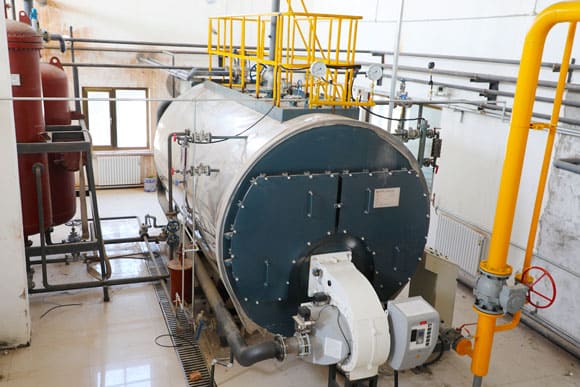

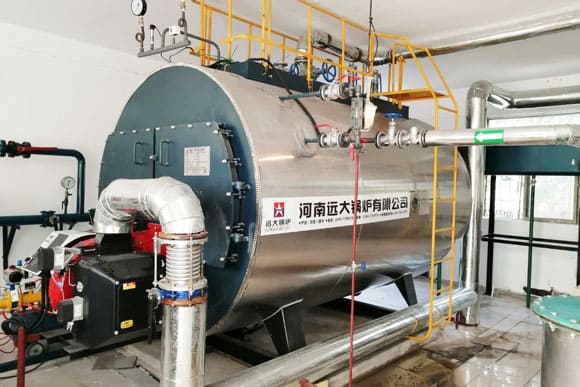

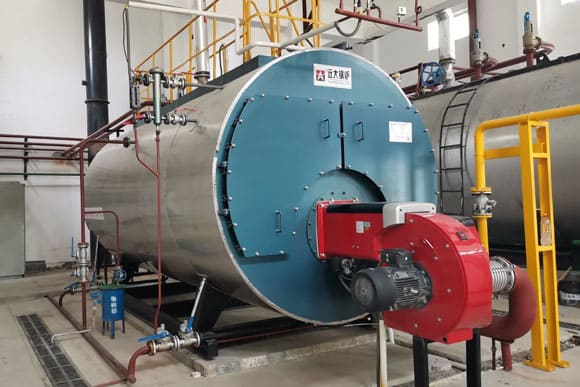

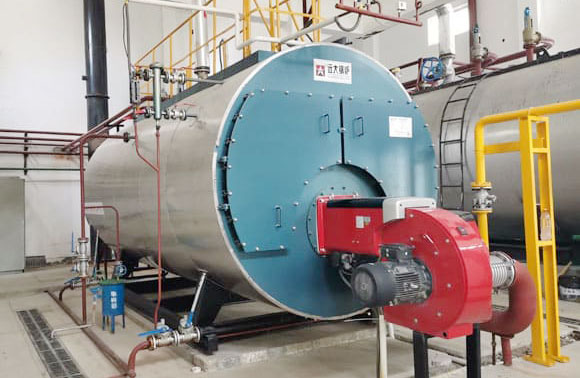

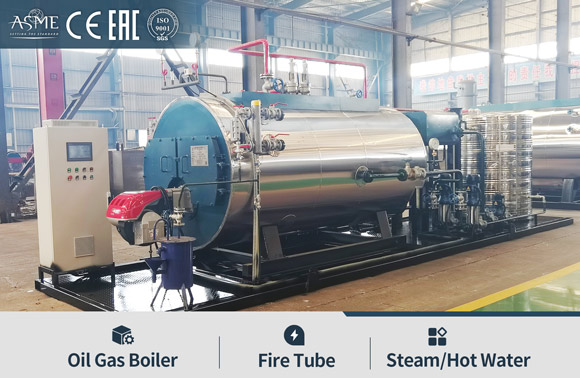

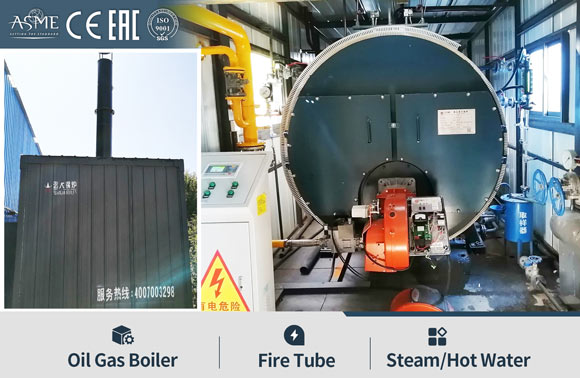

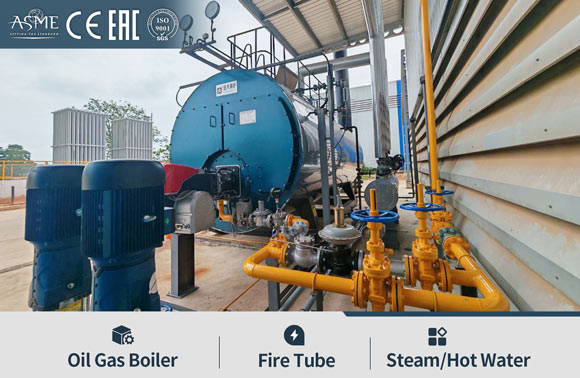

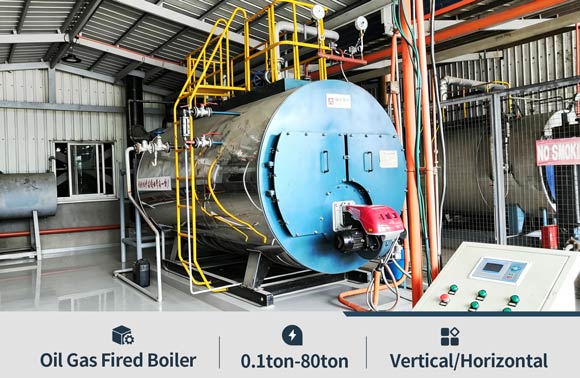

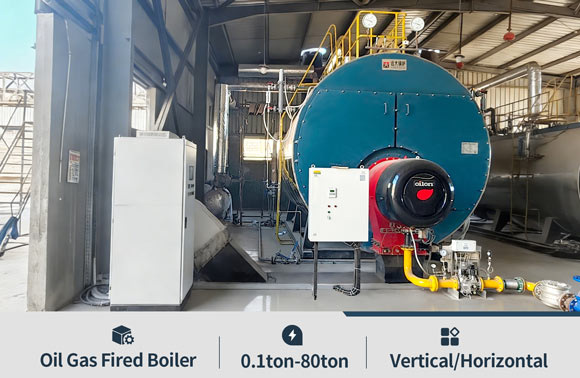

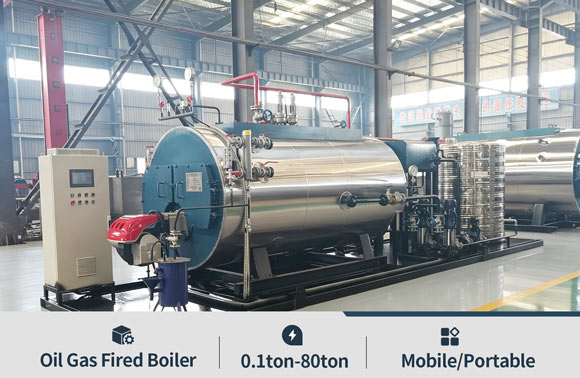

Yuanda gas/oil fired boiler, most popular is WNS series packaged boiler, it's horizontal three pass fire tube structure boiler, with higher-efficiency up 99% & energy-saving & fully automatic running. Importantly, WNS series boiler has a lower emissions, environmental-friendly.

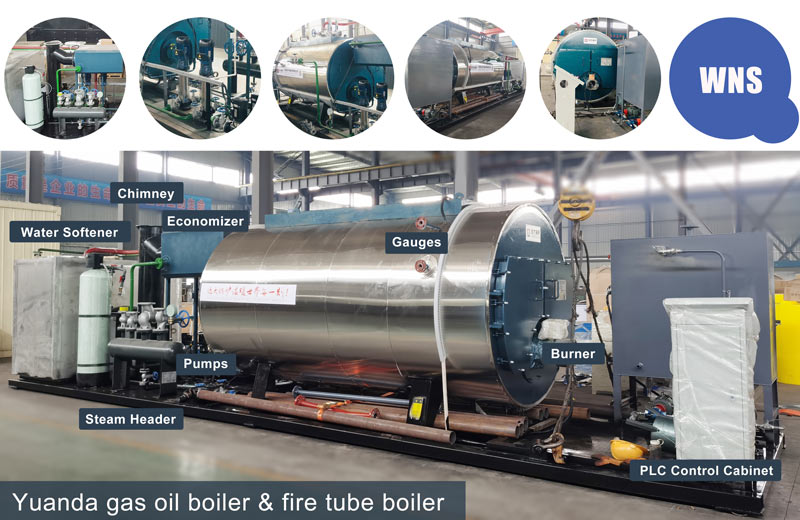

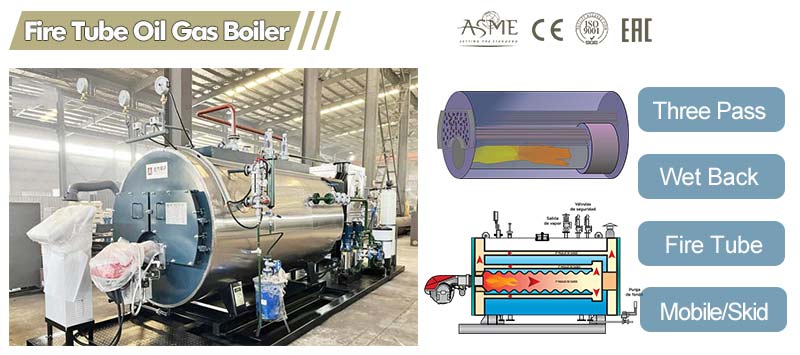

> WNS Gas Oil Boiler Structure
WNS boiler body with characteristics of "fan-shape three pass boiler" "wet-back boiler" "corrugated-furnace" "smoke change chamber" "spirally tube", greatly improve thermal efficiency up to 99%.

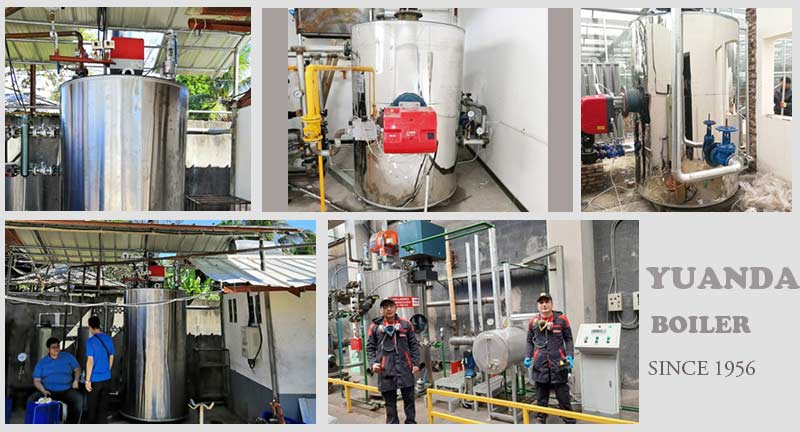

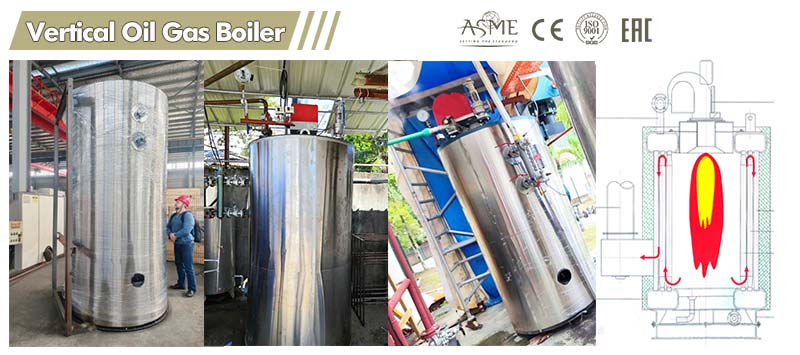

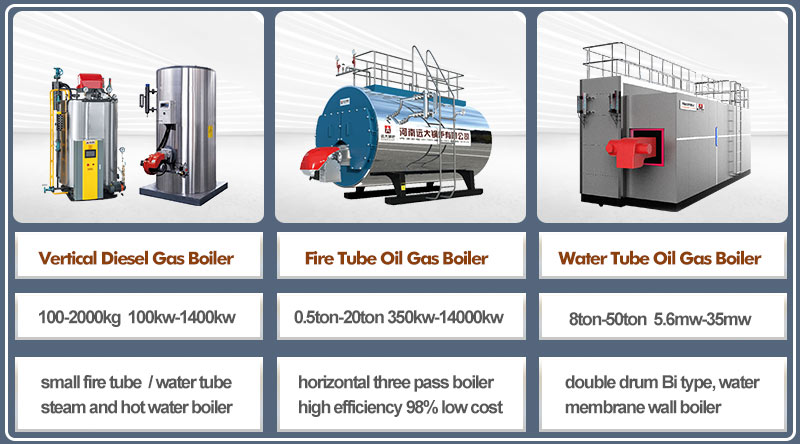

> Related: Vertical Gas Diesel Boiler

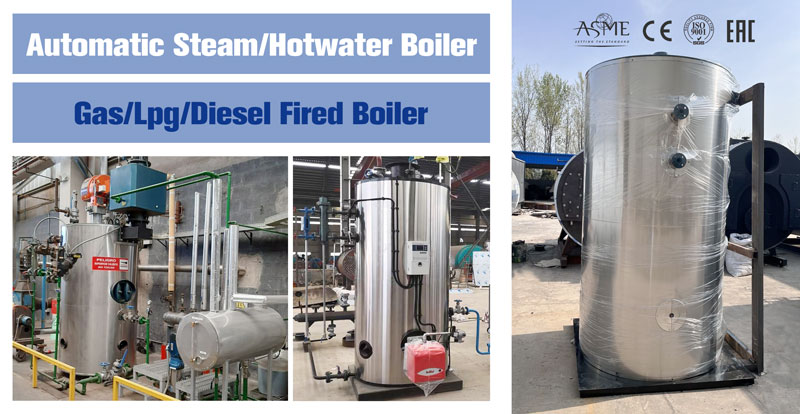

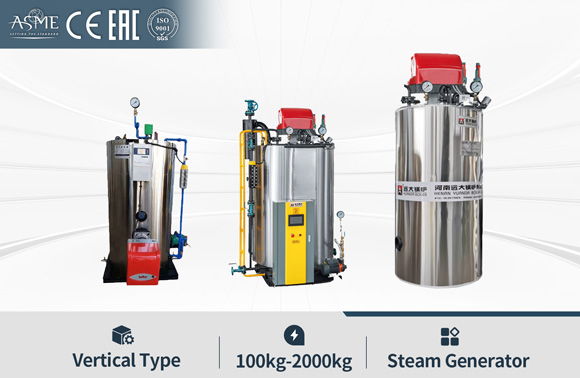

Small capacity 100kg-1000kg 100kw-700kw vertical type boiler use fire-tube/water-tube, packaged simple gas oil burner boiler.
> Applications
WNS steam/water boiler, widely used in industries such as foods, beverage, milk, garments, building materials, chemical, textile, paper, feed mill, chemical, edible oil, rice mill, dairy products, wood processing, refinery, packaging, laundry, hotel...
> Our Products & Global Sales

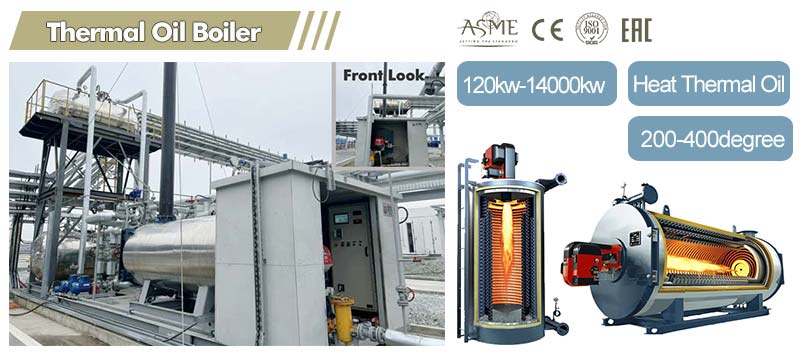

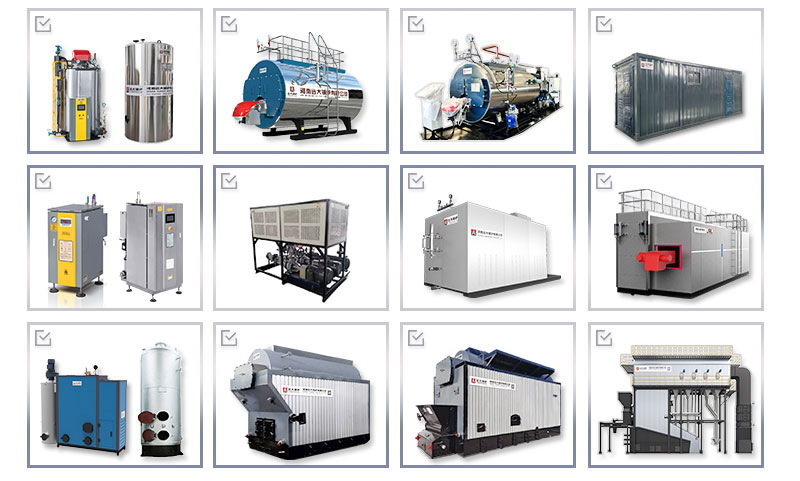

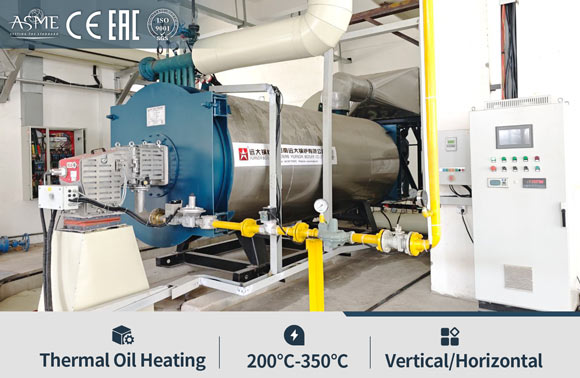

1. Steam Boiler, Hot Water Heater Boiler, Thermal Oil Heater Boiler, Steam Generator, Steam Turbine Boiler.
2. Gas Boiler, Lpg Boiler, Diesel Boiler, Heavy Oil Boiler, Dual Fuel Boiler, Waste Heat Exhaust Gas Boiler.

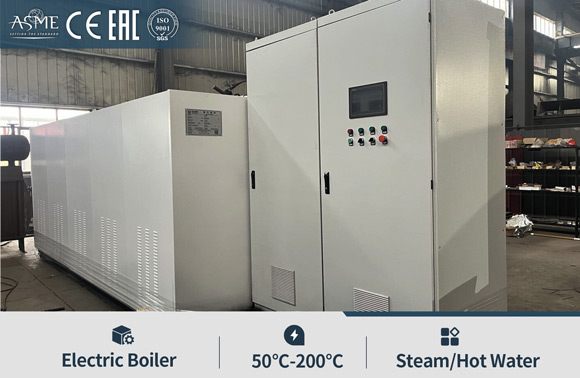

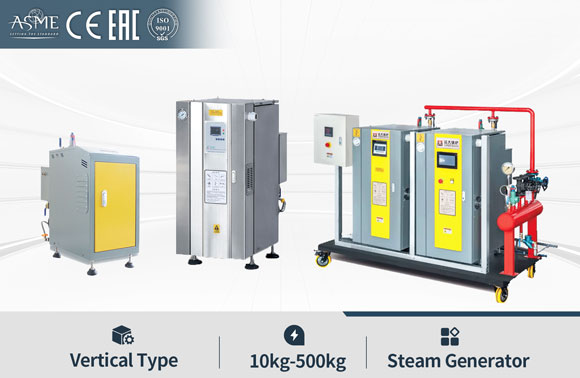

3. Electric Boiler, Electric Steam Generator, Electric Hot Water Boiler, Electric Thermal Oil Heater.
4. Coal Boiler, Wood Boiler, Biomass Boiler, Charcoal Boiler, Briquette Boiler, Pellets Boiler, Solid waste Boiler
5. Husk Boiler, Palm Kernel Shells Boiler, Coconuts Shells Boiler, Agro Waste Boiler, Thermal Heat & Power Boiler

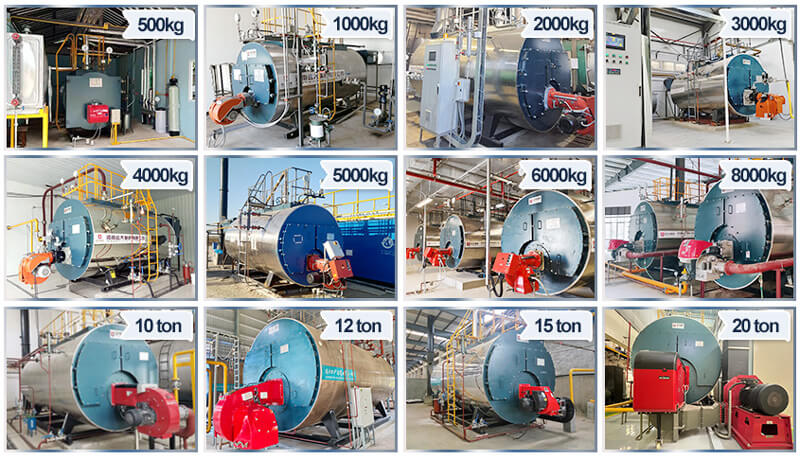

Technical Parameter
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Our Supply Equipment List
WNS Boiler Advantages
100% Safety
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler
Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionFAQ of WNS Boiler
Question: what the fuel comsumption of gas boiler, diesel boiler, lpg boiler...
Answer: generally, when boiler into full load operation, 1ton gas boiler gas comsumption 70 cubic meter per hour, 1ton diesel boiler diesel comsumption 60kg per hour...further fuel comsumption calculate, pls contact us.
Question: what the thermal efficiency of your WNS boiler?
Answer: firstly, WNS series boiler design with advantage of energy-saving. second, we add the economizer and condenser in end of boiler system, enhance the thermal efficiency, up to 99%.
Question: what's the structure of WNS boiler?
Answer: horizontal boiler, fire tube boiler, wet back boiler, three pass boiler, package boiler, automatic boiler, shell boiler, economizer boiler.
Question: Do you have vertical gas oil boiler?
Answer: Yes, our vertical boiler LHS series gas/lpg/diesel boiler, suitable in 100kg-2000kg/hr. Vertical water tube oncethrough boiler, vertical fire tube boiler.
Question: Do you have SZS water tube double drum boiler?
Answer: Yes, our szs water tube boiler suitable for steam capacity in 10ton-100ton, if you interest more, send your message to service@yuanda-boiler.com
Question: Do you supply after-sale install services?

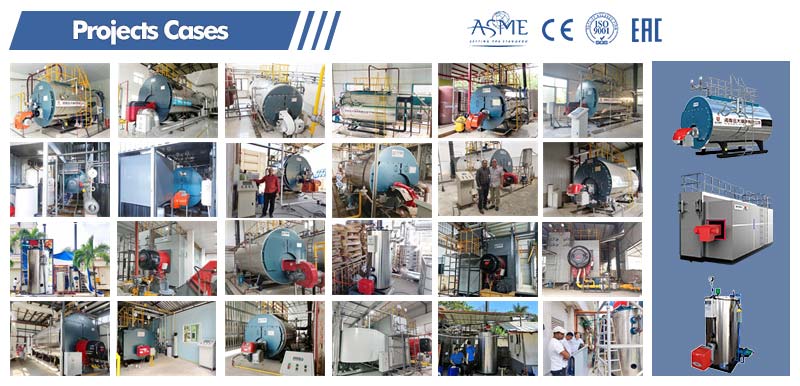

Answer: Yes, our boilers have been used in 90 countries all over the world, if you need after-sale service, consult us for more communications.
