Biomass Boiler
 Capacity: |
0.3ton-100ton |
 Heat: |
40kw-50000kw |
 Fuel: |
biomass wood briquette pellet ricehusk sawdust bagasse palm-kernel-shell palm-fibre... |
 Application: |
For various industries like foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
We supply:biomass steam boiler, biomass hot water boiler, biomass thermal oil boiler, biomass hot air furnace
Introduction
Biomass boiler uses agricultural and forestry waste as fuel to generate steam or hot water.
It helps you saving fuel cost, offering stable operation, simple structure, and strong fuel adaptability. They are suitable for long-time continuous operation in industrial plants.
Feeding system: manual, automatic
Structure: fire tube, water tube
Type: vertical, horizontal
Combustion: wood biomass coal

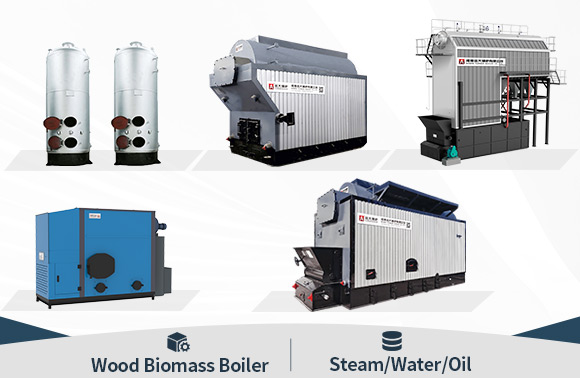

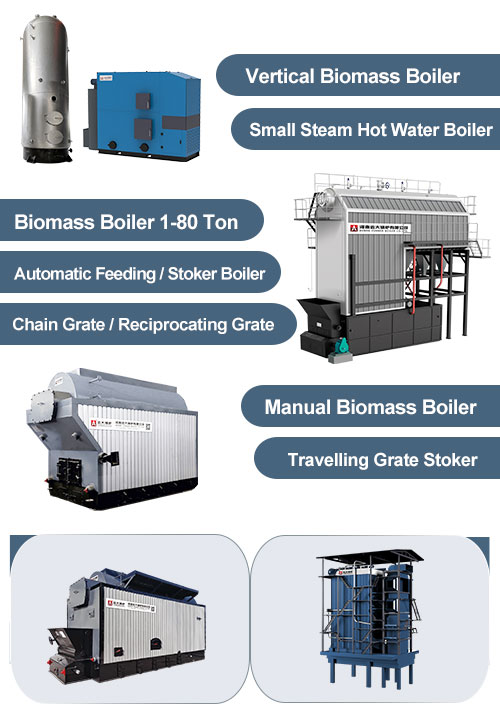

> Biomass Fired Boiler

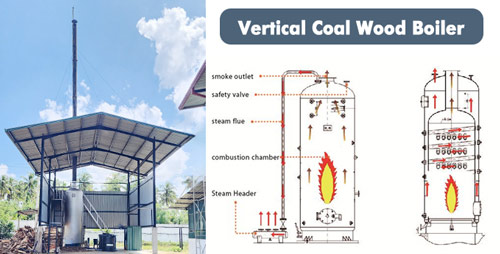

LHS LSS Series Solid Fuel Biomass Boiler

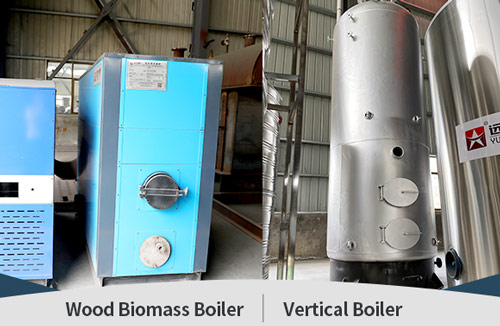

Vertical biomass fired steam/hot water boiler, widely use in industrial heating system, small factory production heating drying, commercial laundry.

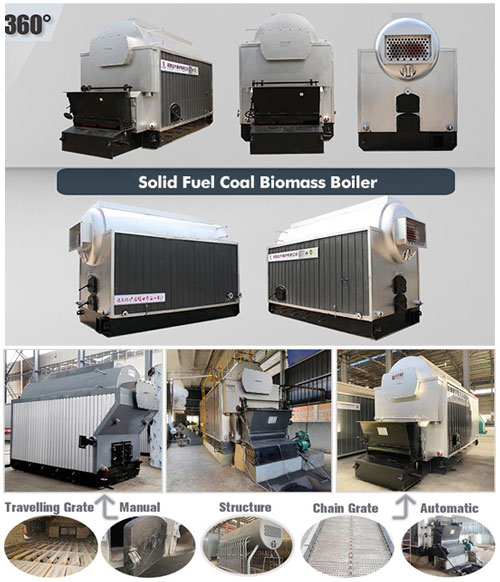

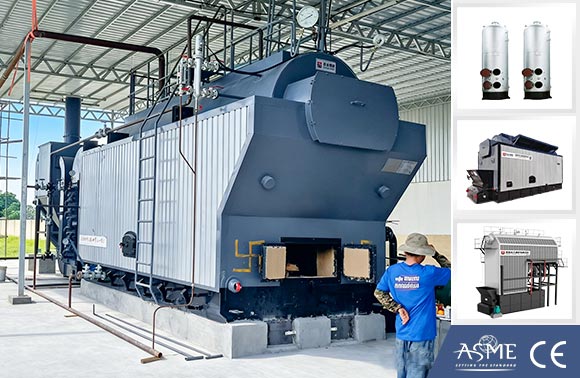

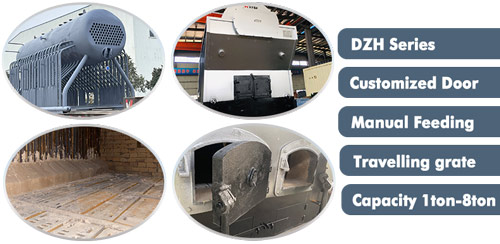

DZH DZG Series Manual Wood Biomass Boiler

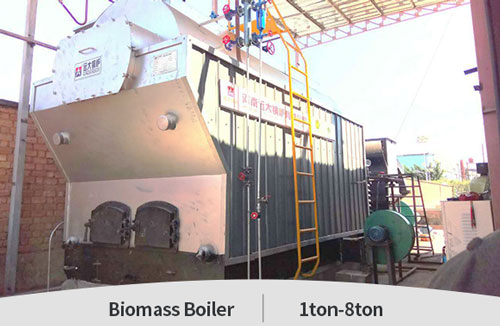

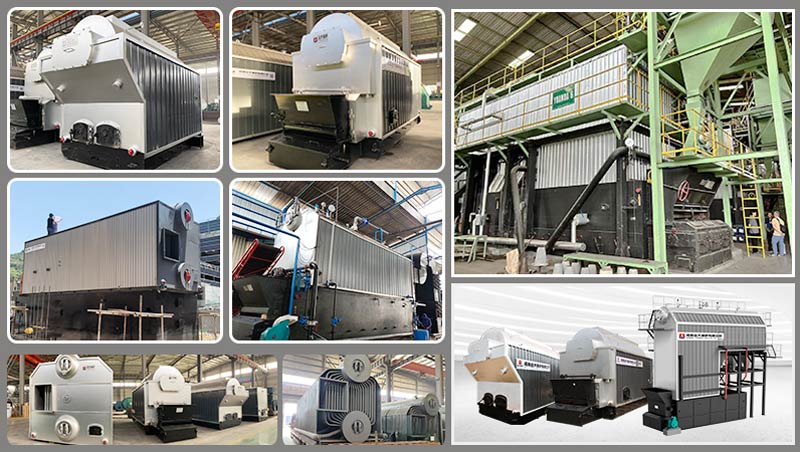

Horizontal structure water-tube fire-tube boiler. Manual feeding wood combustion in travelling grate or fixed grate stoker.

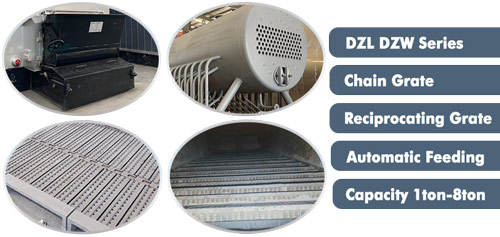

DZL DZW Series Automatic Wood Biomass Boiler

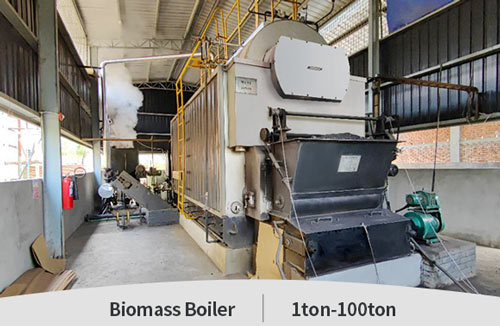

Automatic biomass feeding system, high combustion efficiency for wood biomass. Optional chain gate and reciprocating grate stoker.

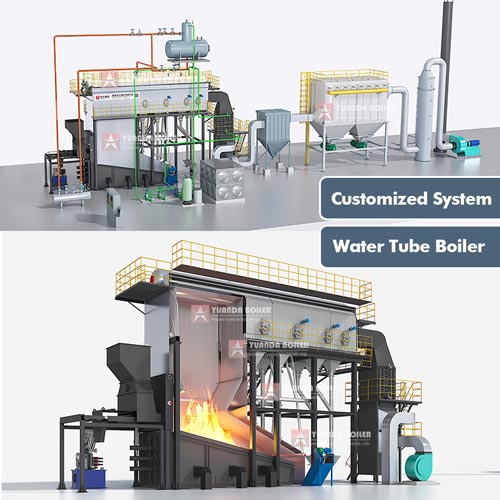

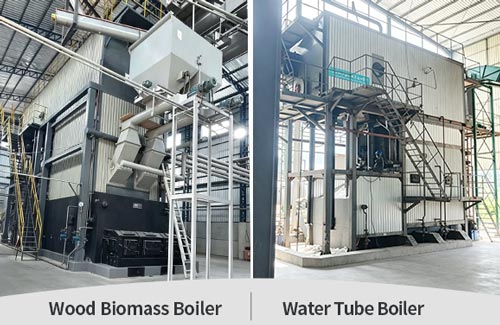

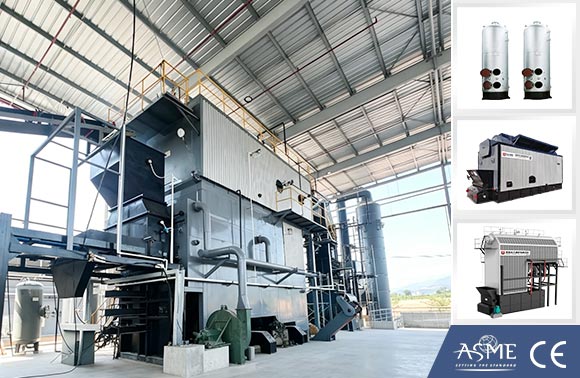

SZL Series Water Tube Wood Biomass Boiler

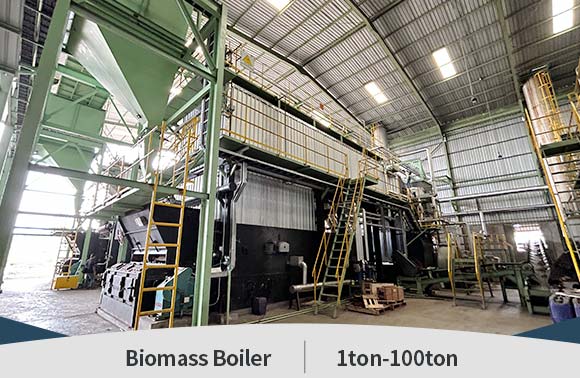

Water tube boiler with double drums. water membrane wall design boiler. larger combustion furnace. Combustion use chain grate or reciprocating grate stoker.
> Biomass Boiler Solutions
1. Wide biomass fuel adaptability
2. Stable and continuous combustion
3. Suitable for long-term industrial operation
4. Lower operating cost using renewable fuel

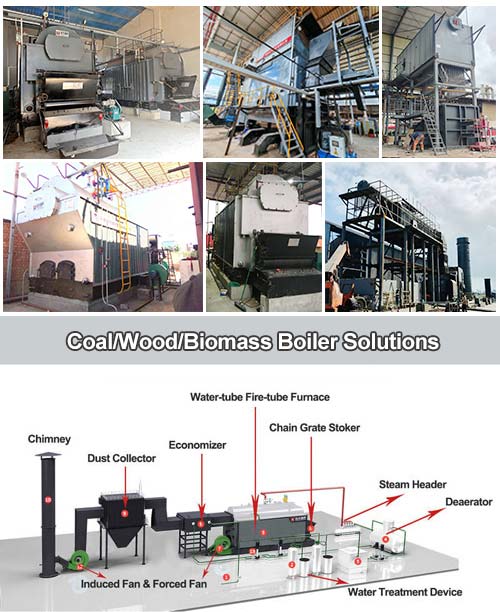

> One Stop Boiler Solution
We offer a one-stop boiler solution including boiler, auxiliary systems, control, and commissioning support, ensuring efficient and reliable operation.
Main Accessories & Systems:
PLC control panel with safety interlock
Boiler water treatment system
Economizer for heat recovery
Dust collection system
Slag removal system
FD fan and ID fan
Steam header and pipeline accessories
Pressure gauges, level gauges, valves, and instruments
Boiler System
Chain Grate / Reciprocating Grate
Fitted with either a chain grate or reciprocating grate, suitable for various types of solid fuels such as coal, biomass, or wood, ensuring full combustion and stable performance.
Water Softener
A complete water treatment system is included to remove hardness and prevent scale formation, protecting the boiler and improving efficiency.
Security guaranteed & Automation
Multiple safety and monitoring devices — pressure gauge, water level gauge, temperature sensor, and automatic safety protection system — ensure safe and reliable operation.
Economizer for Energy Saving
Equipped with a high-efficiency economizer to utilize waste heat from flue gas, reduce fuel consumption, and improve overall thermal efficiency.Technical Parameter
| DZ Series Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
Boiler Accessories List
About us
Yuanda Products
steam boiler, steam generator, hot water boiler, thermal oil heater boiler, hot air furnace, waste incinerator.

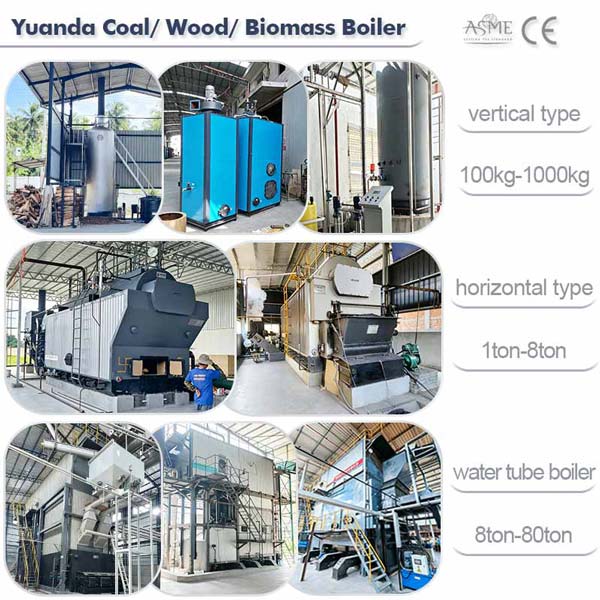

Various Structure
vertical, horizontal, fire tube boiler, water tube boiler, coils heater boiler, water membrane wall structure, sing drum, double drum...
Application
widely in all industries productions heating drying process, building central heating system, electricity generation.
About us
Yuanda Boiler Company established in 1956, qualified by ISO, CE, ASME, EAC, DOSH, and CRN, ensuring safety, reliability, and quality.
Yuanda Service
We provide tailored boiler solutions. Our team shares catalogues, evaluates your working conditions, and recommends the most suitable model for your needs.
✅ Design & Manufacture
Customized boiler design and system diagram. High-standard manufacturing with strict quality control, certified by ISO, CE, ASME, and more.
✅ Boiler Foundation Preparation
Complete foundation drawings, piping layout, and operation documents to ensure smooth installation and operation.
✅ Engineer Service
On-site guidance for installation and commissioning. Professional training for operators to ensure safe and efficient boiler operation.
✅ After-Sales Support
24/7 online technical assistance, spare parts supply, and regular maintenance services — ensuring long-term reliable performance.
