Water Tube Boiler
 Capacity: |
0.1ton-75ton |
 Pressure: |
0.1Mpa-3.8Mpa |
 Fuel: |
Gas Diesel Fuel Oil, Wood, Biomass, Coal, Ricehusk, Bagasse, Solid waste |
 Application: |
For production heat, building central heating, commercial usage, power generation. |
Yuanda Products: steam boiler, steam generator, hot water heater boiler, thermal oil boiler
Introduction
> Various of Water Tube Boiler
Global Sale Service, Qualified with ISO CE ASME EAC DOSH CRN.

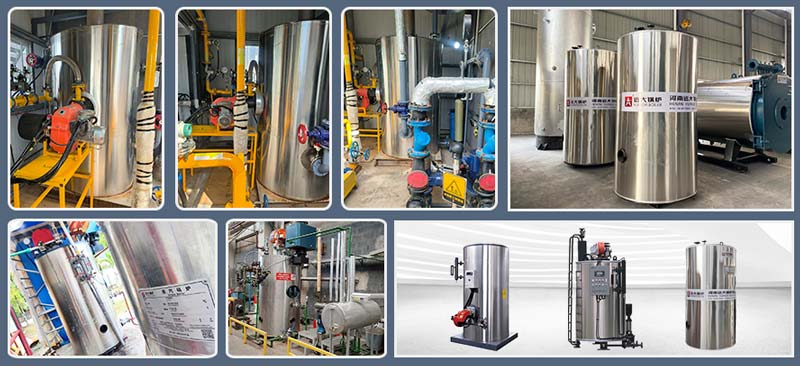

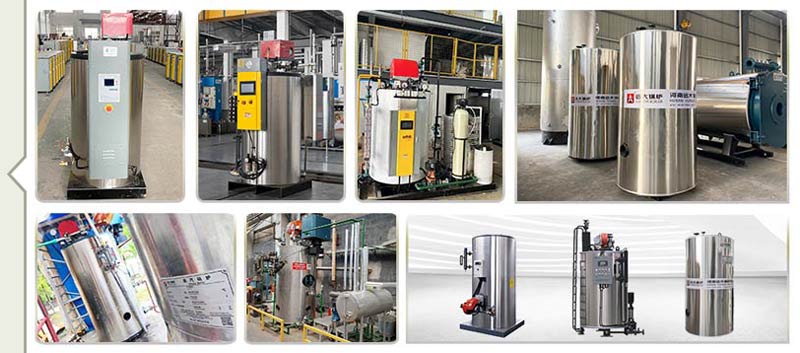

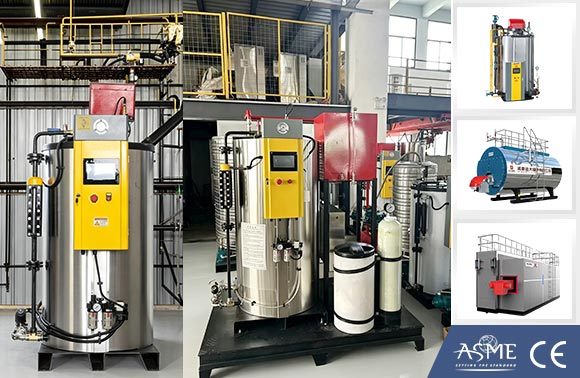

> Vertical Water Tube Boiler

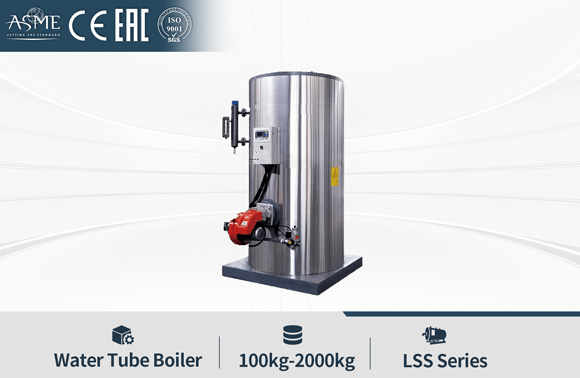

LSS series oil gas fired once through steam generator boiler 100kg 200kg 300kg 400kg 500kg 1000kg 1500kg 2000kg.
1. Vertical structure design reduces floor area and installation space requirements.
2. Fast Steam Generation, High efficiency up to 95%, low NOx emissions and meets strict environmental standards.
3. Equipped with intelligent control system, automatic water feeding, ignition, and pressure control for easy and safe operation.
4. No need for complicated piping or foundations — plug-and-play design simplifies setup and servicing.

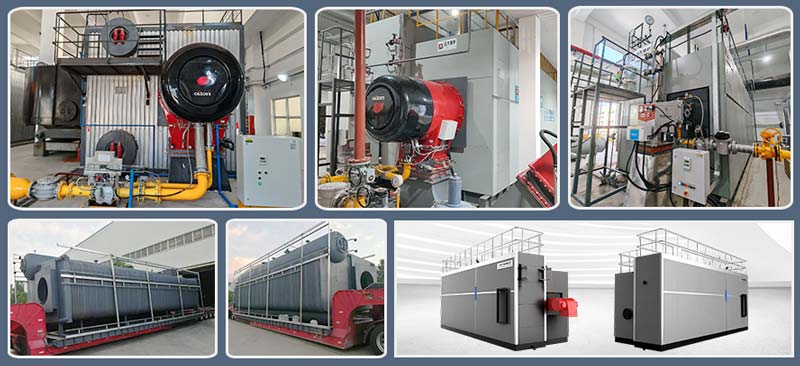

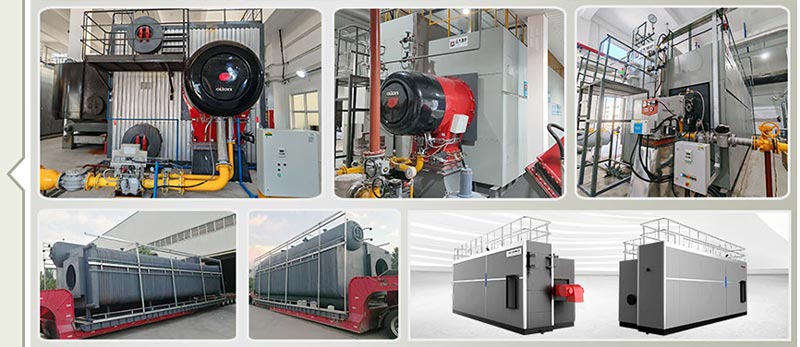

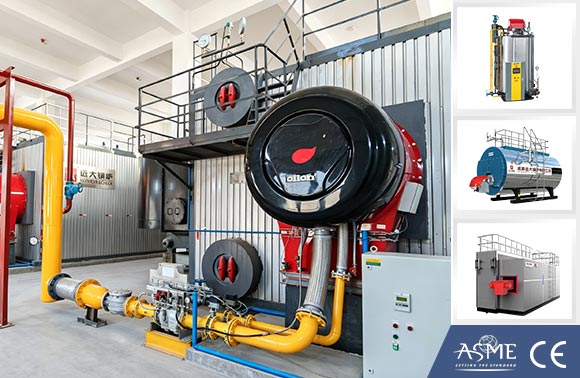

> SZS Water Tube Boiler

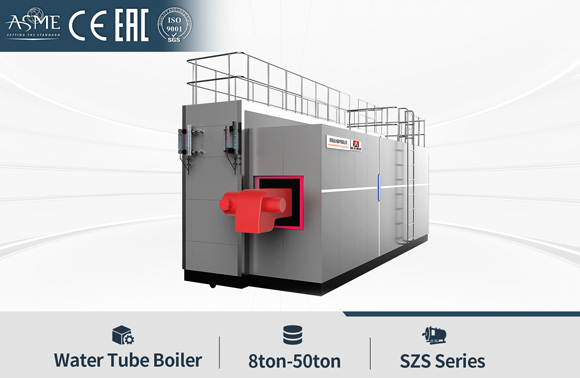

SZS series Oil Gas Double Drums D Type Water Tube Boiler
Water tube boiler, arranged as drum longitudinal type “D” shape, it’s quickly assembled boiler with water tube, has the characteristics of high steam quality, sufficient output, high thermal efficiency, etc.
The structure of furnace water cooling wall and convection gas pass is membrane wall, have good sealability, and effectively reduce refractory brick quantity and maintenance workload.

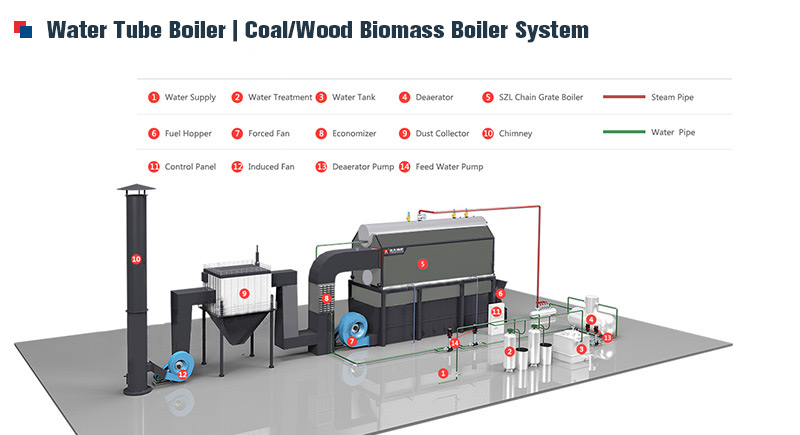

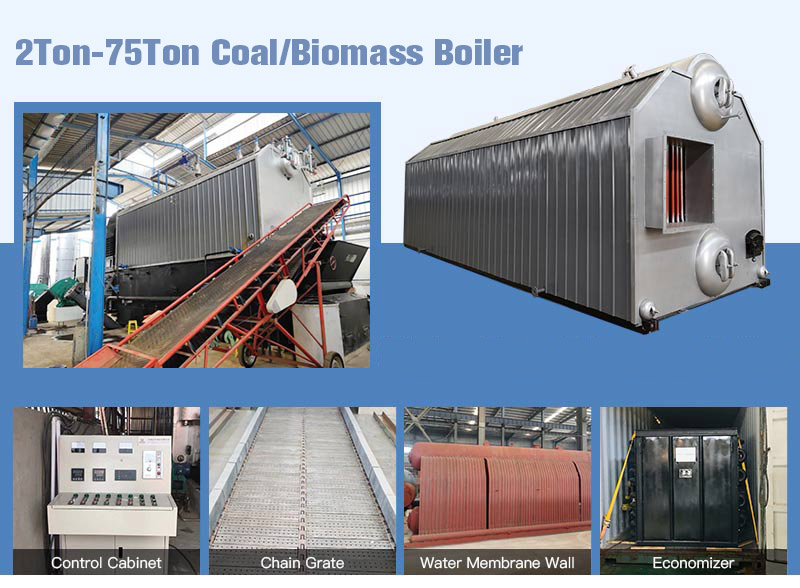

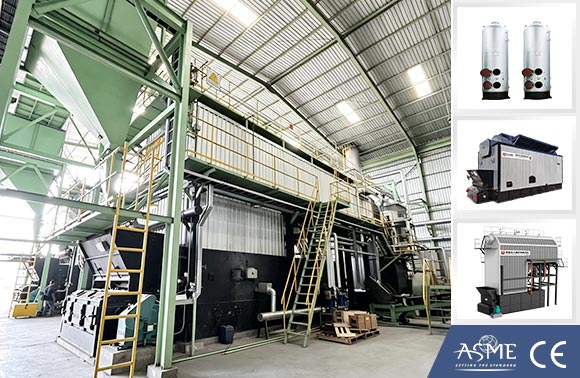

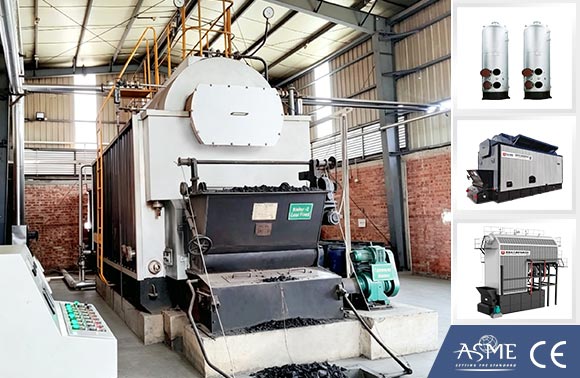

> Coal/Biomass Water Tube Boiler

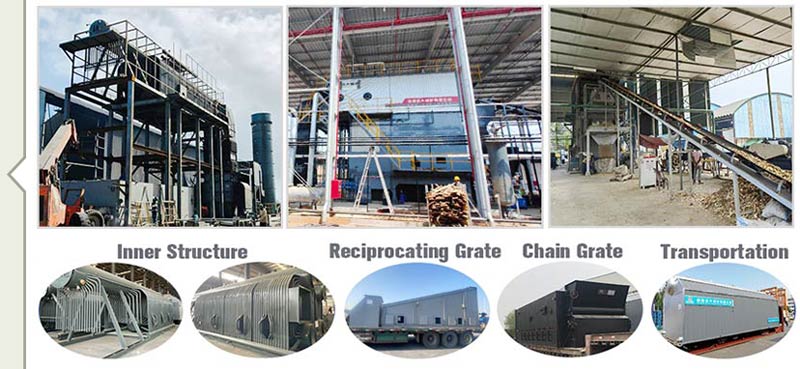

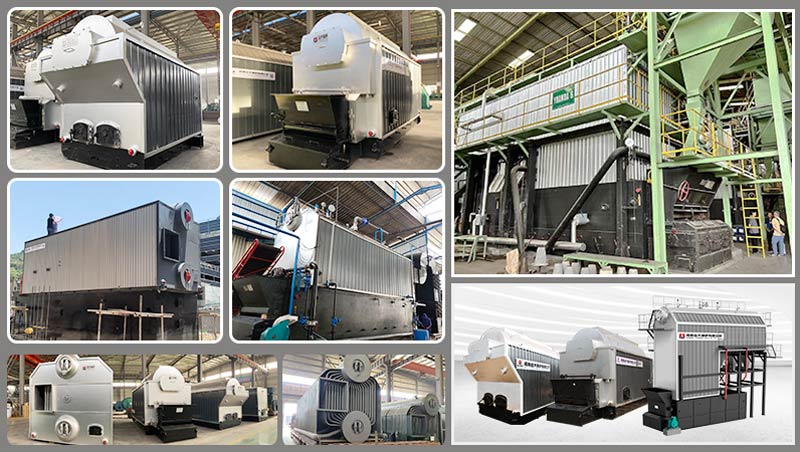

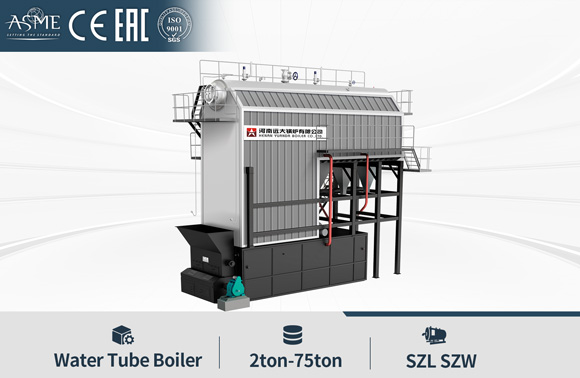

SZL SZW Series Water Tube Biomass/Coal Boiler
Water tube boiler, adopt double water drums and water membrane walls design, double drums layout "A" Or "D" type structure.

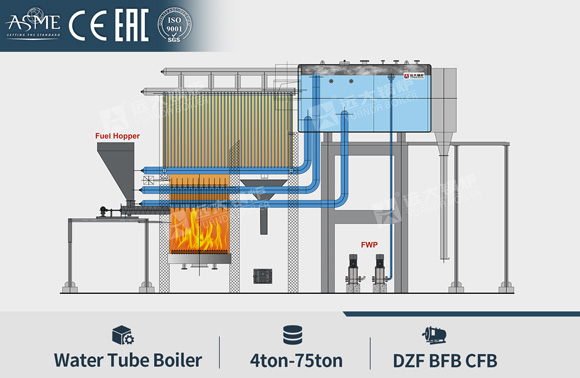

Combustion stoker options: chain grate, reciprocating grate, bubbling bed furnace.

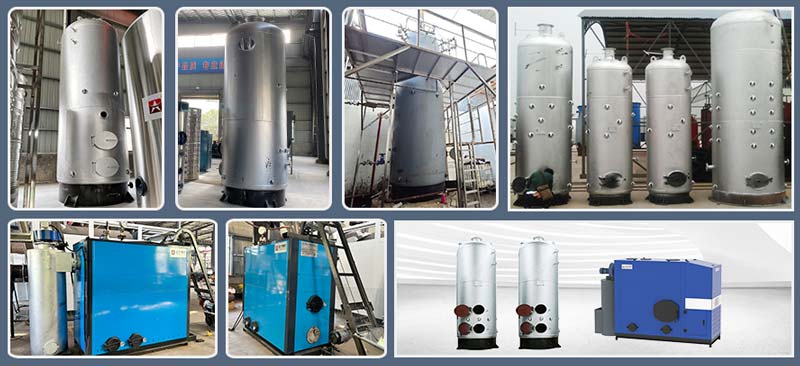

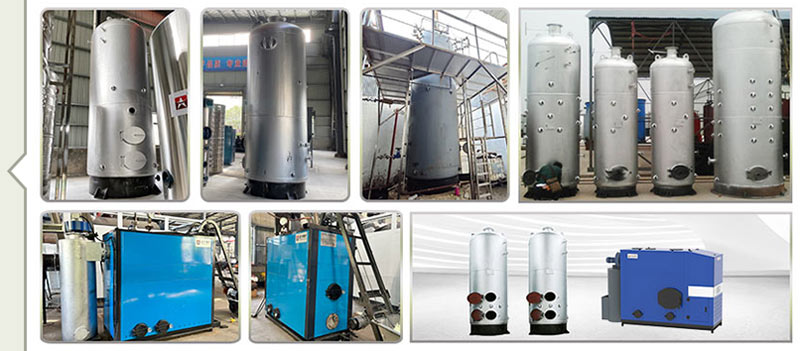

Vertical Water Tube Wood Biomass Boiler
Small steam generator boiler 300kg 500kg 1000kg 1500kg 2000kg.
Hot water boiler 41kw to 1400kw.
SZS Oil Gas Boiler Features
Larger Comubustion furnace
Enough big combusition space, gas/oil burning sufficiently. Quick running, strong power to steam generating with 10minutes.
Membrane type water wall structure
Whole membrane type water wall structure is adopted around the furnace, has good sealing performance, low heat loss, no smoke and smoke leakage.
Higher quality steam generation
Compared with fire tube boiler, szs water tube boiler generating higher quality steam for using. (Moisture content<3%)
Saturated Steam & Superheated Steam
SZS series boiler can generate superheated steam for higher temperature compared with fire tube boiler, to reach different processing demand.Technical Parameter
| SZS Water Tube Oil Gas Steam Boiler Technical Parameter | ||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| SZS10-1.25/1.6/2.5/3.82-YQ | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 618 | 660 | 36 |
| SZS15-1.25/1.6/2.5/3.82-YQ | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 927 | 987 | 45 |
| SZS20-1.25/1.6/2.5/3.82-YQ | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1256 | 1316 | 52.6 |
| SZS25-1.25/1.6/2.5/3.82-YQ | 25 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1545 | 1660 | 55.3 |
| SZS30-1.25/1.6/2.5/3.82-YQ | 30 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1856 | 1981 | 63.7 |
| SZS40-1.25/1.6/2.5/3.82-YQ | 40 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 2470 | 2630 | 77.4 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
Oil Gas Boiler & Accessories
About us
Yuanda Products
steam boiler, steam generator, hot water boiler, thermal oil heater boiler, hot air furnace, waste incinerator.
Various Structure
vertical, horizontal, fire tube boiler, water tube boiler, coils heater boiler, water membrane wall structure, sing drum, double drum...
Application
widely in all industries productions heating drying process, building central heating system, electricity generation.
About us
Yuanda Boiler Company established in 1956, qualified by ISO, CE, ASME, EAC, DOSH, and CRN, ensuring safety, reliability, and quality.
Yuanda Service
We provide tailored boiler solutions. Our team shares catalogues, evaluates your working conditions, and recommends the most suitable model for your needs.
✅ Design & Manufacture
Customized boiler design and system diagram. High-standard manufacturing with strict quality control, certified by ISO, CE, ASME, and more.
✅ Boiler Foundation Preparation
Complete foundation drawings, piping layout, and operation documents to ensure smooth installation and operation.
✅ Engineer Service
On-site guidance for installation and commissioning. Professional training for operators to ensure safe and efficient boiler operation.
✅ After-Sales Support
24/7 online technical assistance, spare parts supply, and regular maintenance services — ensuring long-term reliable performance.
