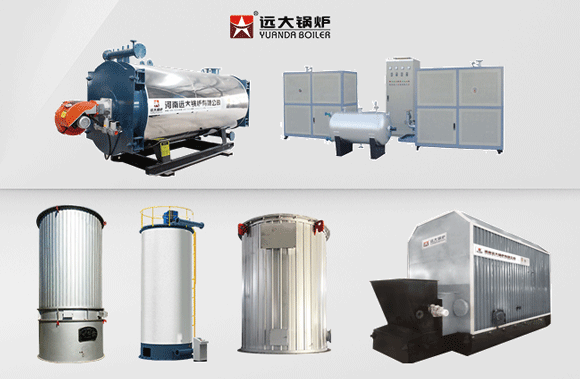

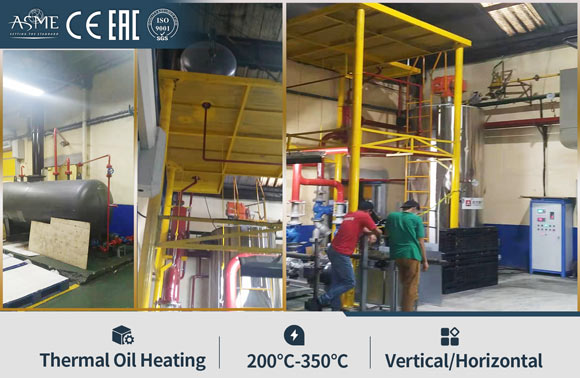

Thermal Oil Heater Boiler
 Capacity: |
50kw-24000kw |
 Oil Heating: |
200°C-350°C |
 Structure: |
Vertical or Horizontal |
 Fuel: |
Gas lpg, Diesel, Hfo, Electricity, Coal, Wood, Biomass, Ricehusk |
We supply:steam boiler, steam generator, hot water heater boiler, thermal oil boiler, hot air furnace
Introduction
Thermal Oil Boiler uses thermal oil as the heat transfer medium, heating the thermal oil to high temperatures 200°C–350°C. Thermal oil boilers operate at low pressure while reaching high temperatures, ensuring both safety and energy efficiency.
Work mode : manual, automatic
Structure: vertical, horizontal
Combustion: diesel lpg gas hfo, electricity, solid fuel wood biomass coal

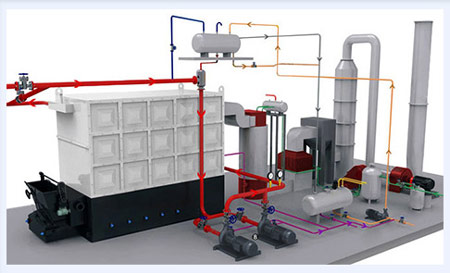

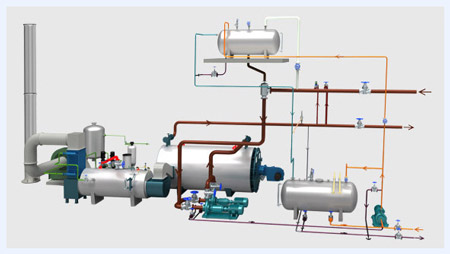

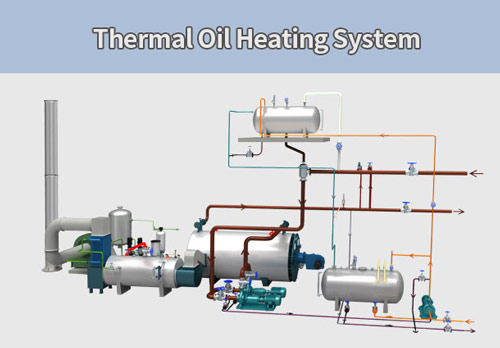

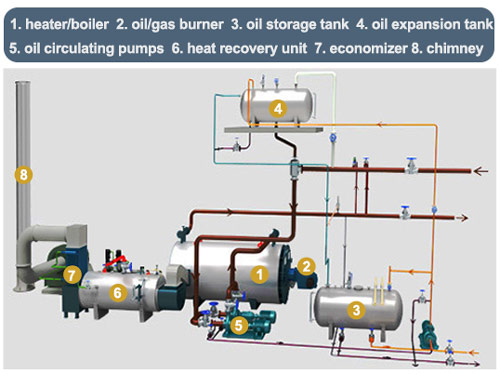

How It Works ?
1. Heating – The boiler burns fuel (natural gas, diesel, coal, or biomass) to heat the thermal oil.
2. Heat Transfer – Hot thermal oil circulates through pipes to equipment, transferring heat to the process.
3. Return Cycle – Cooled oil returns to the boiler to be reheated, creating a closed-loop system.
This system allows precise temperature control up to 200–350°C without the risks associated with high-pressure steam.

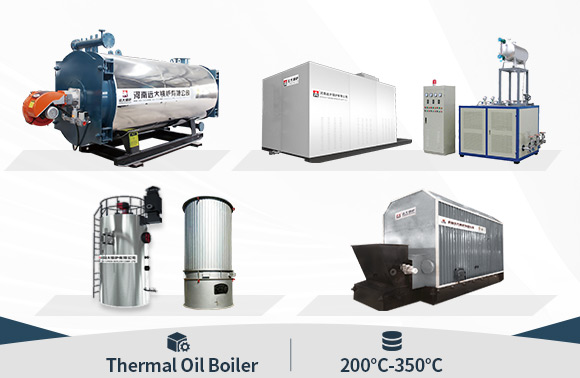

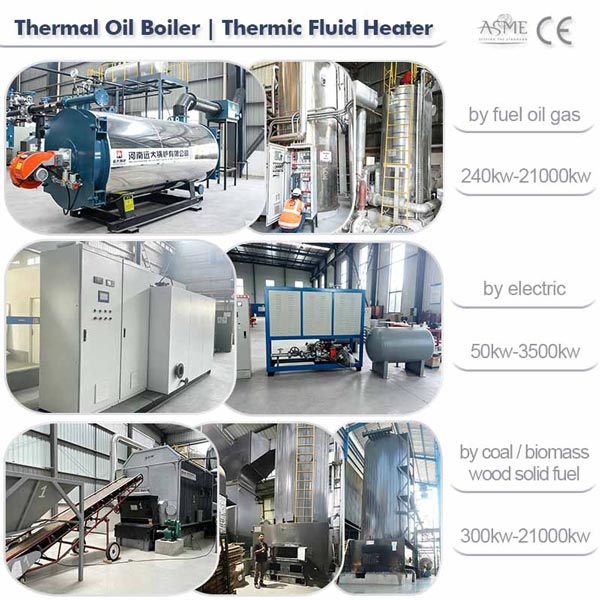

> Thermal Oil Boiler

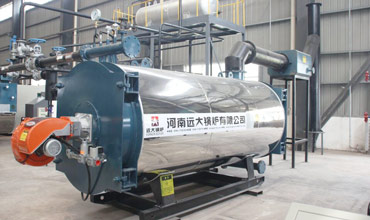

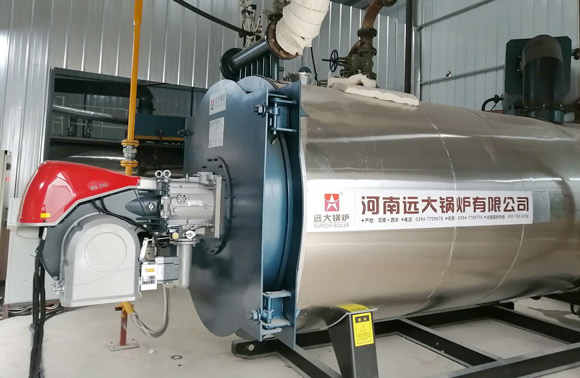

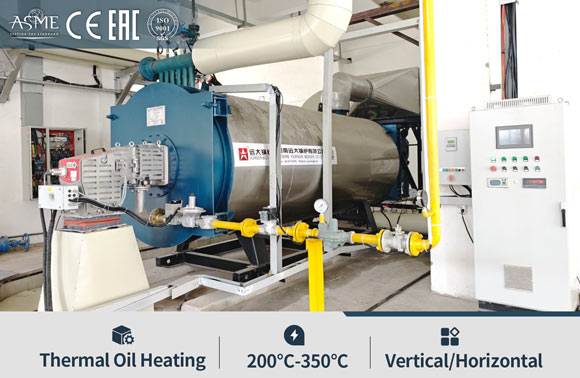

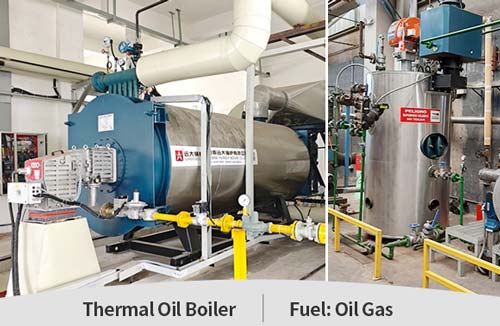

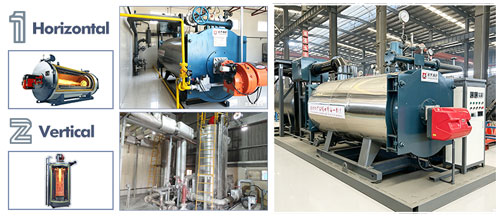

High Efficiency Fuel Oil Gas Thermal Oil Boiler
Fuel optional: diesel gas lpg biogas hfo dual-fuel
High-efficiency thermal oil heater (up to 98% efficiency) for industrial applications, available in horizontal and vertical designs for stable and cost-effective operation.

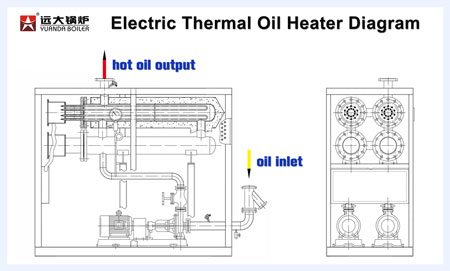

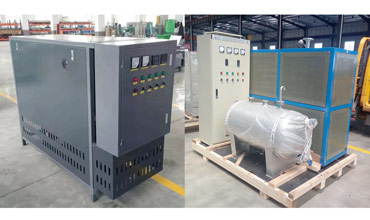

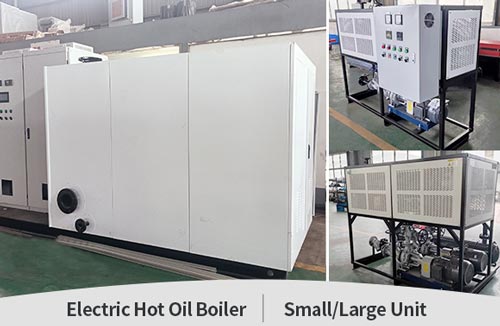

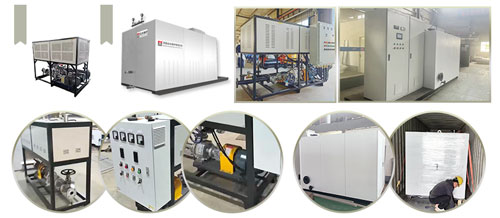

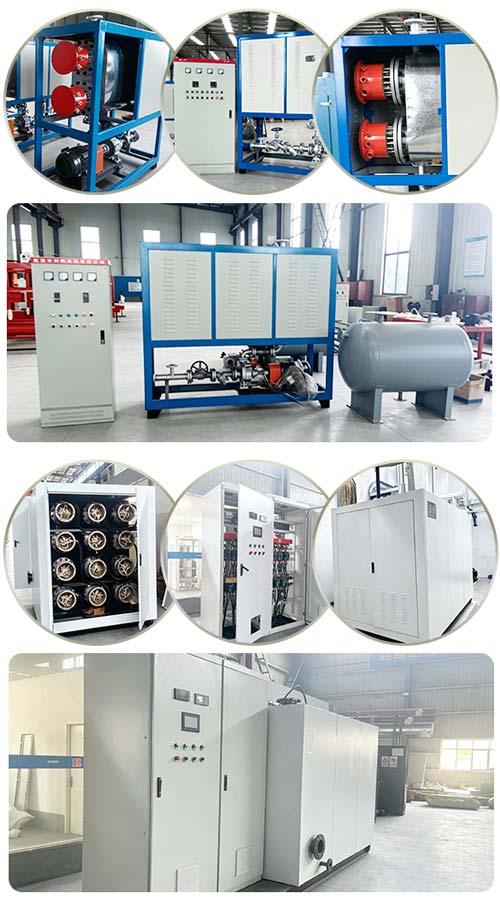

Electric Thermal Oil Heater Boiler
Electric Thermal Oil Heater Boiler offering high-temperature thermal fluid heating without fuel combustion. With precise temperature control, high efficiency, and zero emissions, it ensures safe and clean industrial operation.

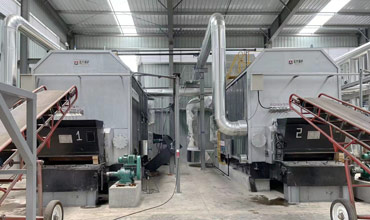

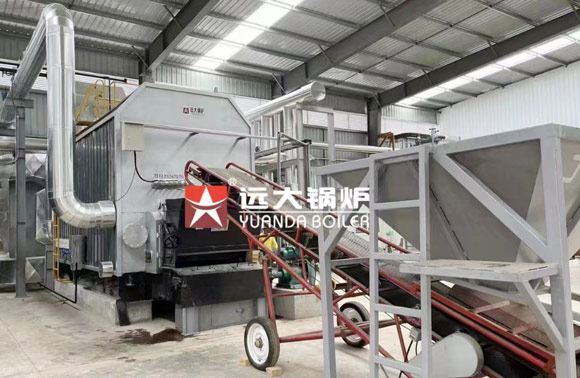

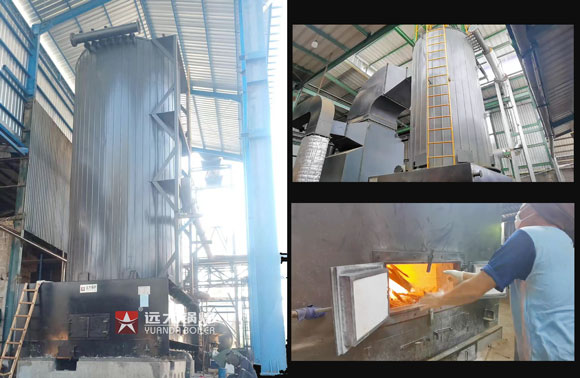

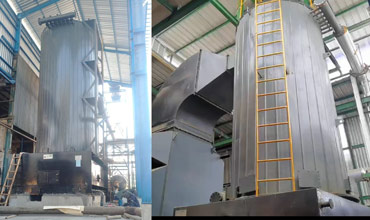

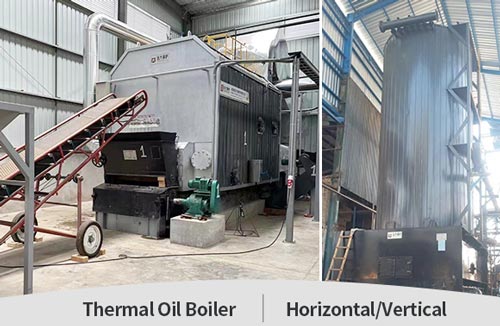

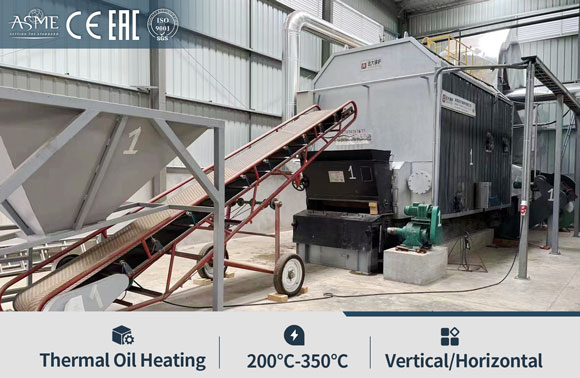

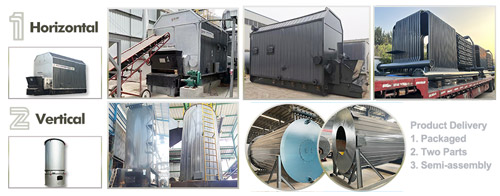

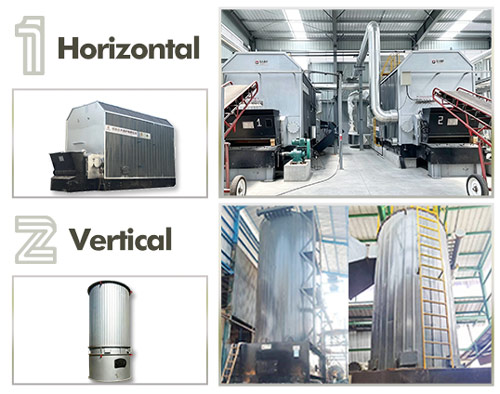

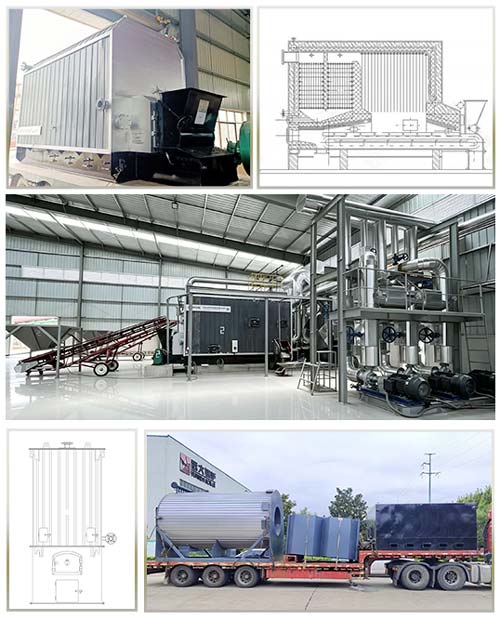

Coal Wood Biomass Fired Thermal Oil Boiler
Efficient and reliable high temperature thermal fluid heating, lower operating costs using solid fuels like coal, wood, or biomass.

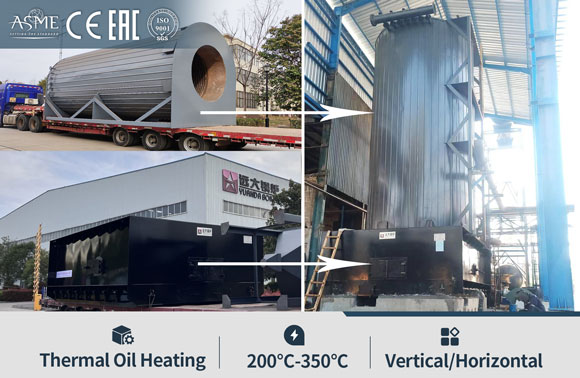

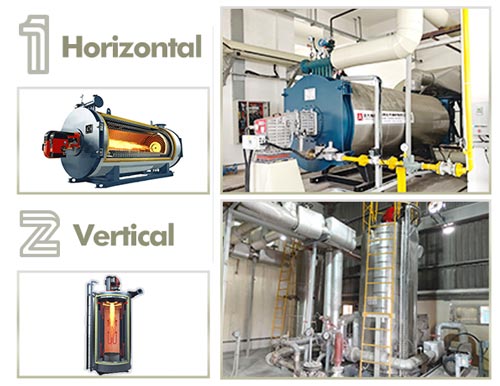

Optional horizontal or vertical configurations allow flexible installation, with vertical design minimizing occupied area.
Customized Design - Thermal Oil Boiler One Stop Solution

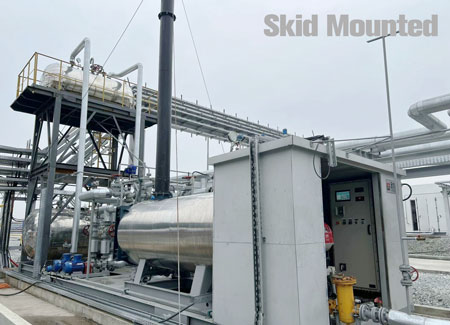

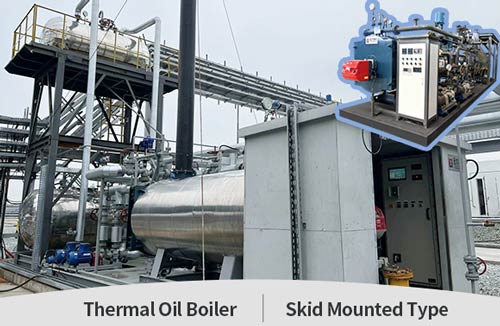

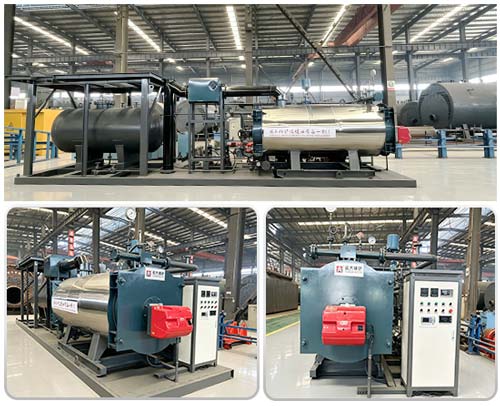

Skid-mounted or modular design available.
> Applications
Chemical Industry – Reactor heating, drying, and other process heating.
Food Industry – Edible oil, chocolate, and syrup heating.
Textile Industry – Dyeing and finishing processes.
Plywood Industry – Hot pressing, veneer drying, glue curing, and board production processes.
Other Industrial Uses – Any process requiring stable, high-temperature heat.
Boiler Features

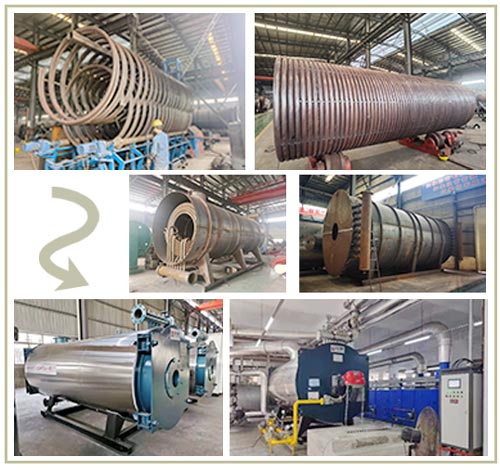

Compace coil tube structure
Horizontal chamber combustion three coil structure, its body is composed of outer coil, middle coil, inner coil and rear coil.
Wet back sturcture
Unique design for heating surface in end of boiler, somke chamber wet back sturcuture, make lower heat loss, improve thermal efficiency 2%-3%.
External oil tank
The design of the external oil collecting tank prevents the slow flow of grease carbonization and avoids accidents.
100% safety runing & best insulation
Double layer 12cm aluminum silicate insulation. Sealed tightly to avoid air leaks. Over oil temperature/over smoke temperature/low flow alarm.Technical Parameter
| Gas/Diesel Fired Thermal Oil Boiler Technical Parameter | |||||||
| Model | Rated power(KW) | Rated pressure (Mpa) | Thermal oil temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||
| YY(Q)W-700Y(Q) | 700 | 0.8/1.0 | 250-320 | ＞96 | 61.3 | 73.6 | 3 |
| YY(Q)W-1400Y(Q) | 1400 | 0.8/1.0 | 250-320 | ＞96 | 122.6 | 147.1 | 4 |
| YY(Q)W-3000Y(Q) | 3000 | 0.8/1.0 | 250-320 | ＞96 | 249.2 | 296.4 | 10 |
| YY(Q)W-3500Y(Q) | 3500 | 0.8/1.0 | 250-320 | ＞96 | 305.6 | 366.8 | 10.2 |
| YY(Q)W-4200Y(Q) | 4200 | 0.8/1.0 | 250-320 | ＞96 | 367.5 | 436.6 | 16.5 |
| YY(Q)W-5600Y(Q) | 5600 | 0.8/1.0 | 250-320 | ＞96 | 489.6 | 586.8 | 23.6 |
| YY(Q)W-7000Y(Q) | 7000 | 0.8/1.0 | 250-320 | ＞96 | 612.3 | 726.9 | 28 |
| Note: If need other boilers technical specifications, pls contact us directly. | |||||||
Supply Boiler & Accessories
About us
Yuanda Products
steam boiler, steam generator, hot water boiler, thermal oil heater boiler, hot air furnace, waste incinerator.
Various Structure
vertical, horizontal, fire tube boiler, water tube boiler, coils heater boiler, water membrane wall structure, sing drum, double drum...
Application
widely in all industries productions heating drying process, building central heating system, electricity generation.
About us
Yuanda Boiler Company established in 1956, qualified by ISO, CE, ASME, EAC, DOSH, and CRN, ensuring safety, reliability, and quality.
One-Stop Solution
We provide more than just a boiler. We deliver a complete, integrated thermal oil heating solution — from design to commissioning and long-term support.
✅ System Design & Technical ConsultationHeat load calculation
Boiler model selection
Fuel recommendation
Layout design support
Energy efficiency optimization
Our engineers customize the solution according to your industry and production requirements.
✅ Complete System SupplyThermal oil boiler
Circulating oil pump
Expansion tank
Oil storage tank
Control system (PLC optional)
Valves, pipelines, and safety devices
Burner (gas, oil, dual fuel)
All core components are pre-matched to ensure stable and safe operation.
✅ Factory Pre-Installation
Skid-mounted or modular design available.
Main components are assembled and tested before delivery, reducing on-site installation time.
✅ Installation & Commissioning Support
Installation guidance
On-site or remote commissioning
Operation training
Safety inspection
We ensure your system runs smoothly from day one.
✅ After-Sales Service & Spare Parts
Technical support
Spare parts supply
Maintenance guidance
Performance optimization
Long-term partnership is our commitment.
