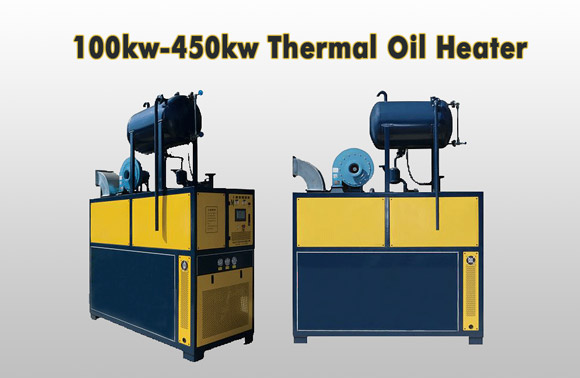

Gas Thermal Oil Heater

100kw-450kw 80000kcal-400000kcal

Samll thermal oil heater use gas, working pressure 0.4-0.6Mpa, Max heat temperature is 300°C.

Features & Advantages

1. Energy saving

Low operating costs, No need for complex water treatment equipment, saving water resources, It can replace water boiler heating in water-deficient areas.

2. Accurate temperature control, Stable heating , precse temperature adjustment, high automation.

3. High themal efficiency

Closed-crcuit heating, no waste heat emissions, good load adaptability. It can maintain thermal eficiency under diferent working conditions, high comprehensive thermal efficiency.

4. Safe and reliable

Complele operation control and safely monitoring device. Heating system opening operation, high safety factor.

5. High temperature and low pressure

Able to obtain a higher operating temperature at a lower operating pressure. Liquid phase conveying heat energy, in less than 300 ℃ the pressure of heat carier is about 70-80 times less than the saturated water steam, with thermal equipment pressure conditions can be greatly reduced.

6. International famous brand burner and advanced fully automatic control system make boiler combustion more stable, more convenient operation, more safe and reliable operation.

7. The furnace adopls the dense double coil

The heating surface is well arranged to reduce the heat load of the pipe surface. It makes the heat conduction oil use more safely.

8. The media flow is reasonable, the heat conduction oil from low (imported) to high (outlet), the gas produced by the operation is diffcult to stay in the funace, easily dicharge the system.

9. The furnace size is matched with the combustion flame, and the postive pressure combustion is used. The radiant heat exchange efficiency is high.

10. Design and manuacture of organic heat carier furnace in accordance with TSG G0001-2012《boier salety technical supervision procedures》, TSG G0002-2010 《boler energy-saving technical monitoring and management procedures》and gb/t17410 《Organic heat carrier furnace》 requirements.
