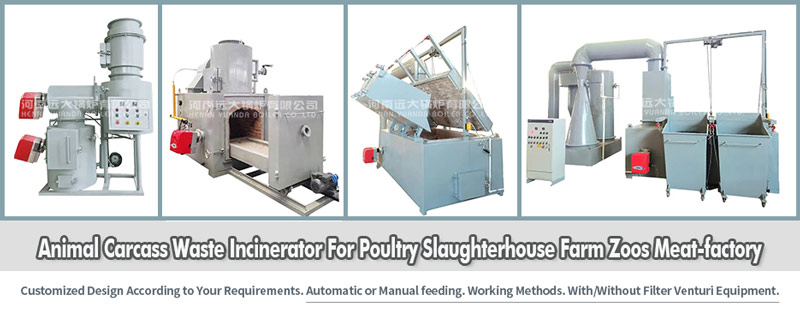

Poultry Animal Incinerator Slaughterhouse Farm Waste Garbage Incinerator Pig Chicken Cow Sheep Carcass Incinerator
 Model: |
20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg |
 Power: |
Gas, Diesel, Lpg, Waste oil |
 Types: |
Floor-standing, skid-mounted, container-mounted |
 Certificates : |
ISO, CE |
Key Feature:YDF incinerator delivers efficient, eco-friendly waste disposal. Smokeless and Odorless. Clean emissions, fast operation, and durable consturction design.
Introduction

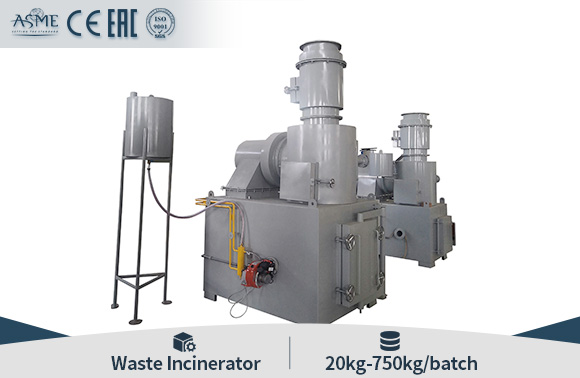

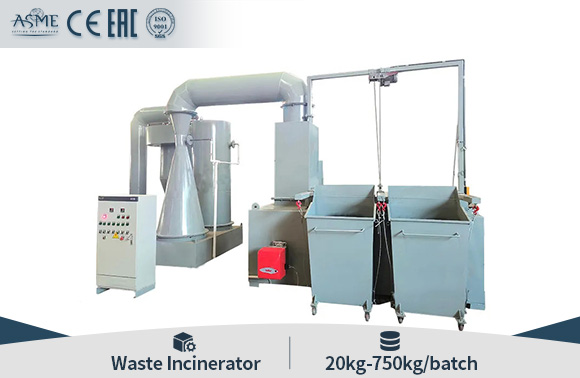

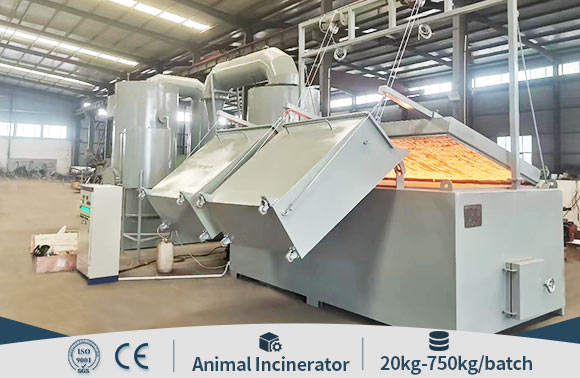

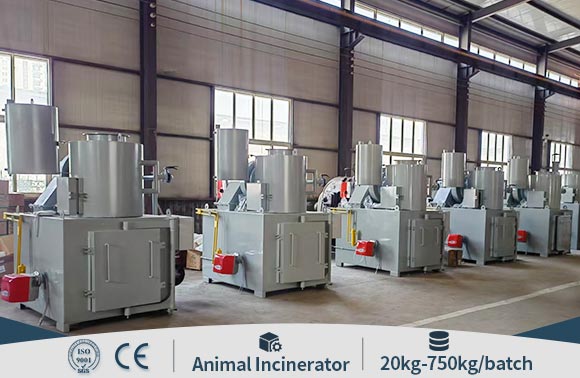

Poultry Animal Incinerator
Animal & Other Waste Management Incinerator 20kg-7000kg one day.
Animals Incinerators adopt high temperature heating technology. Harmful substances in waste are pyrolyzed and destroyed at high temperatures 1300°C. Importantly, incinerator equipped with waste gas treatment device, incinerator running eco-friendly.
Animal & waste can include anything from fallen stock and general farming waste, to animal by-product which includes a variety of different products, including live animals rejected from abattoirs because they’re infected, to carcases of animals used in experiments.
Noted: Customized service according your needs, please feel free to send your requirements.
Incinerator Features
✅ Smokeless and Odorless, No Blank Smoke
High-temperature pyrolysis gasification technology+mixed incineration+burnout treatment.

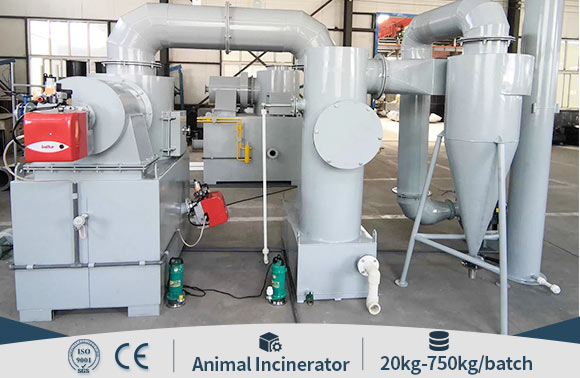

Single/double/multi-stage flue gas treatment.
Enclosed burning, avoid secondary pollution.
✅ High Temperature pyrolysis Process
Double chamber for incineration.
The chamber temperature up to 1300°C, retention 2 seconds.
✅ Low Consump Cost
With first-class Itlay Baltur burner, ensure good qualtiy.
Primary combustion chamber automatically starts and stops, effectively utilizing high-temperature flue gas, save fuel.
✅ Safe 100%, Easy to Install and Operate
Pre-assembled and well-debugged in our factory.
Simple to install the incinerator by Installation Steps.
Use ceramic fiber sealing tape rather than asbestos material. And high-strength refractory materials;
During the operation, auto ignition, auto control and temperature monitoring, automatic power cut off.
Easy to Install & Operation
We will provide full service for the equipment you have purchased, assisting with installation and providing operational guidelines. If you have any questions, please feel free to contact us.
1. All parts detachable to small pieces - convenient for transportation.
2. Flange connections reserved - easy to assemble with bolt at worksite.
3. Clear marks at wires & flanges - as assemble guidance.
YDF Incinerator Cases
Yuanda Products Have Sold to 132 Countries & Regions, Global Sales & Services Worldwide
Incinerator Package & Delivery
We will pre-install the incinerator in factory, also do the commissioning work, then all parts detachable to small pieces for delivery.

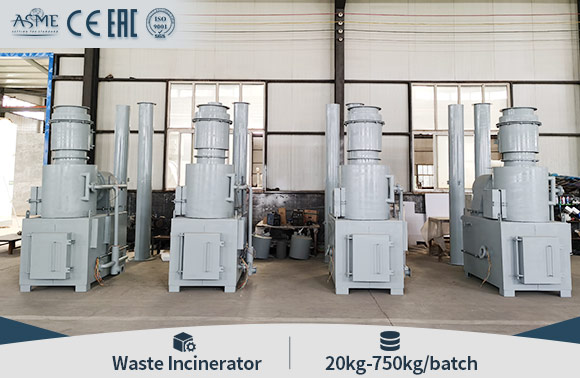

Yuanda Incinerator Factory
1. Yuanda Company established since1956, mainly manufacture industrial boiler, incinerators.
2. Global sales with high quality products, with ISO CE ASME Certificates.

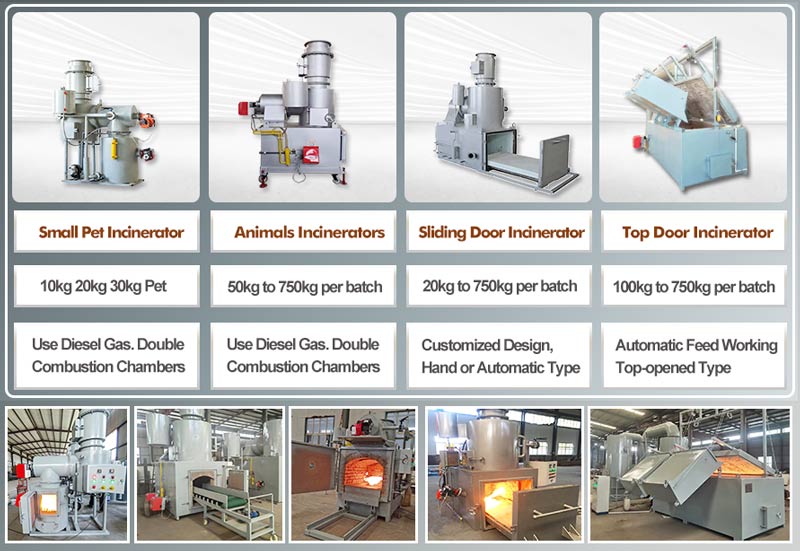

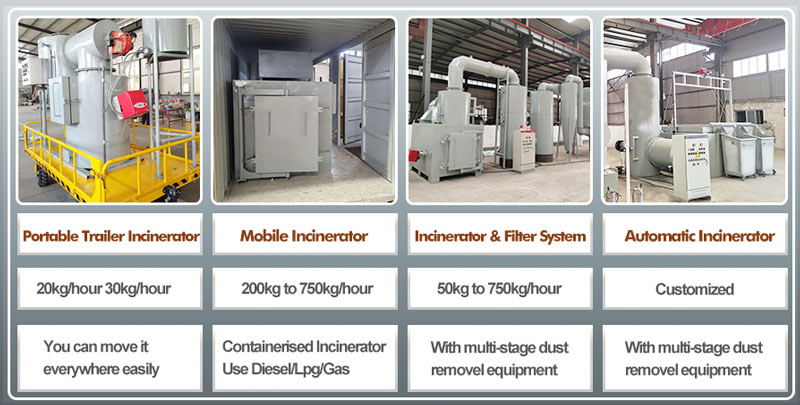

Customized Incinerator System
YDF Incinerator
Environmental Friendly Incinerator
YDF incienrators are widely used for animal & waste incineration solutions. No pollution & Lower NOx emission.
Trustable Quality & Service
Yuanda company supply good quality incinerator equipped with famous baltur burner. Reliable after-sale service anytime.
Our Company
Yuanda Company has 70 years of professional manufacturing experience. With 18 years of export history, sales service cover 132 countries and regions.
Our Certificates
Yuanda Boiler products meet international certification standards ISO, CE, ensuring safety, reliability, and quality.
Technical Parameter
| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
| Solid Waste Weight (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
Waste Disposal
Incinerator Advantages
Devote To Use Easily
Easy operation, full automatically, one worker can operate it easily. Easy installation Well-debugged in factory. On-site Flange connection.
Firebrick
The interior adopts high temperature firebrick, which can withstand high temperature 1700ºC, the outer wall adopts thermal insulation brick to isolate heat.
High temperature pyrolysis technology
With the Italian baltur burner, the highest temperature can reach 1200 degrees Celsius, which can achieve the effect of sterilization and disinfection.
Smokeless & Odorless
Two-stage combustion technology, comply with national emission standards. Stable operation, low failure rate.YUADNA PRODUCTS
