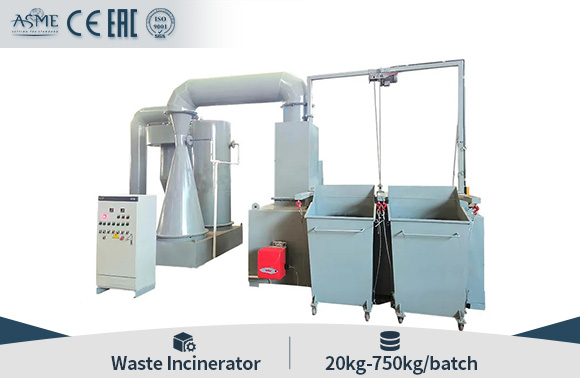

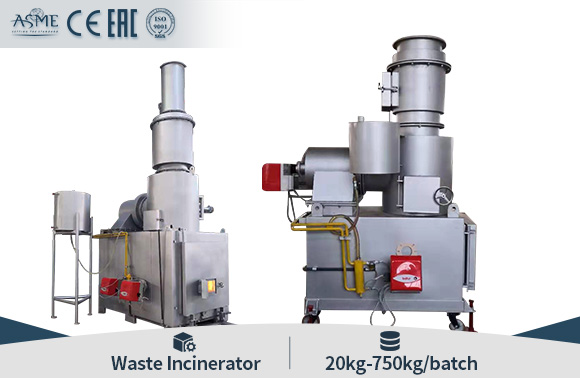

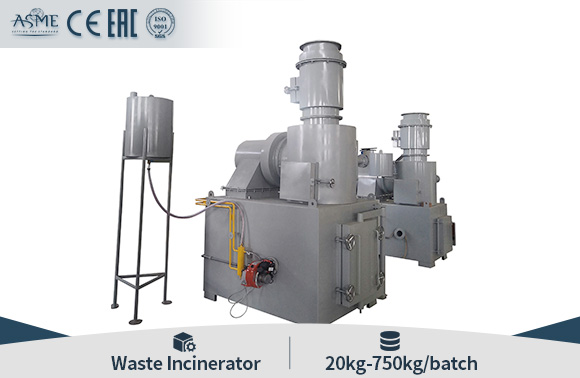

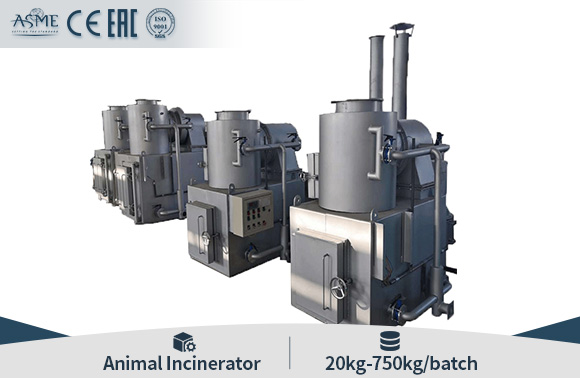

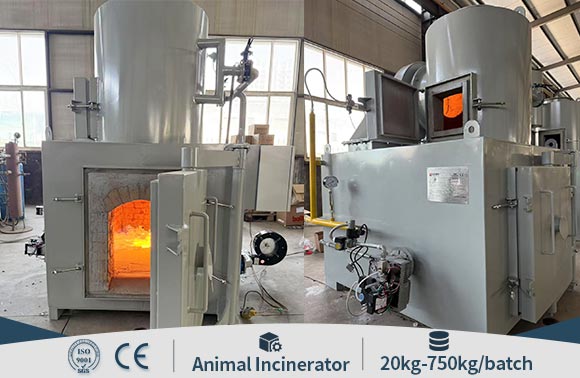

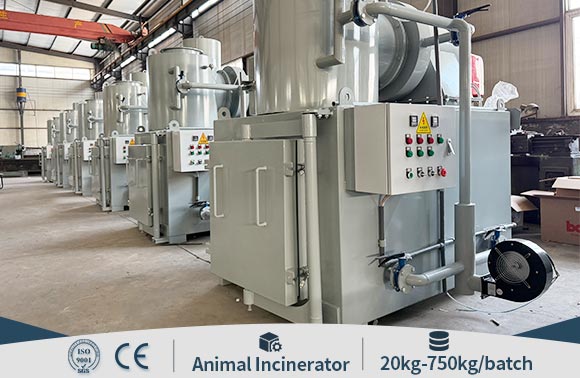

Pets Cremation Furnace Animal Carcass Waste Incinerator
 Model: |
20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg |
 Power : |
Gas, Diesel, Lpg, Waste oil |
 Types: |

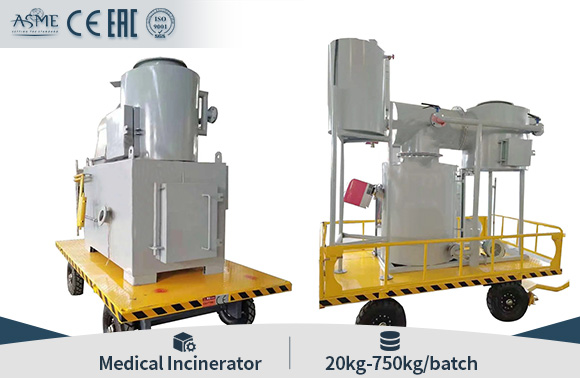

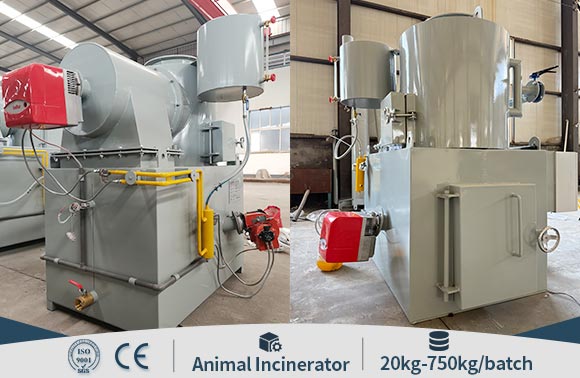

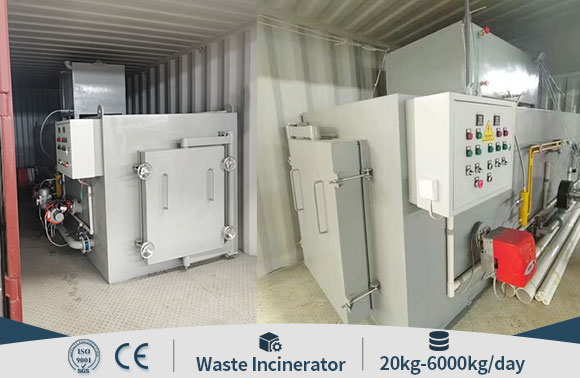

Floor-standing, skid-mounted, container-mounted |
 Certificates: |
ISO, CE |
Key Feature:Our pet incinerator offers a respectful, eco-friendly, and efficient solution for pet cremation — combining clean emissions, fast operation, and durable construction in a compact design.
Introduction

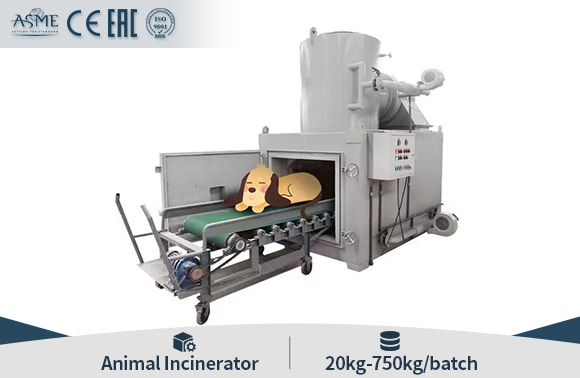

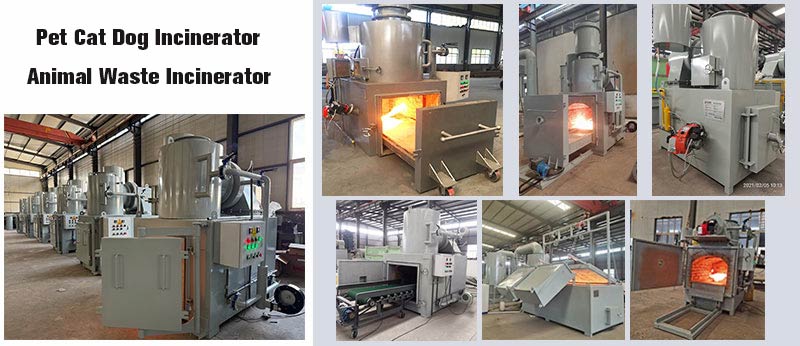

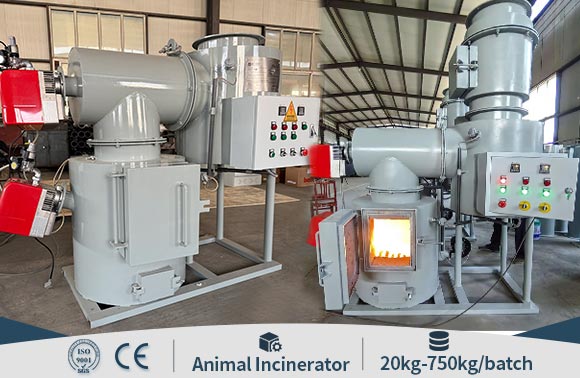

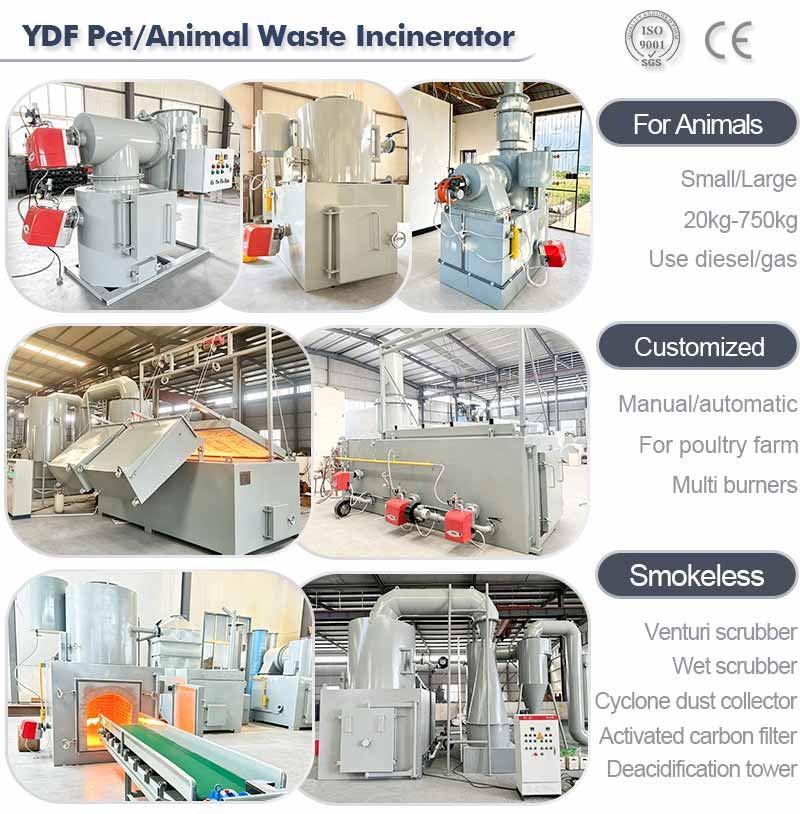

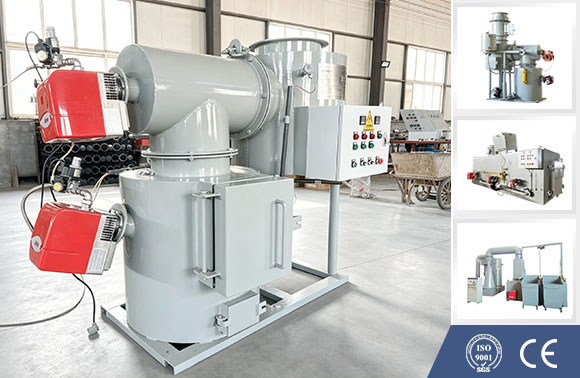

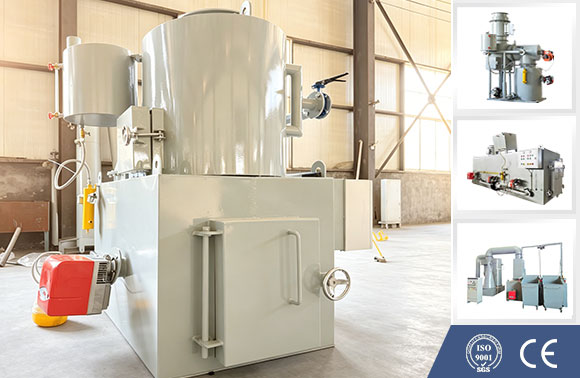

Pets Animals Incinerator
Available: small and large pet cat dog, dead animals, poultry/farm animal waste, plastic paper waste, medical waste...
Pet Animals Cremation Incinerators adopt high temperature heating technology. Harmful substances in waste are pyrolyzed and destroyed at high temperatures 1300°C. Importantly, incinerator equipped with waste gas treatment device, incinerator running eco-friendly.

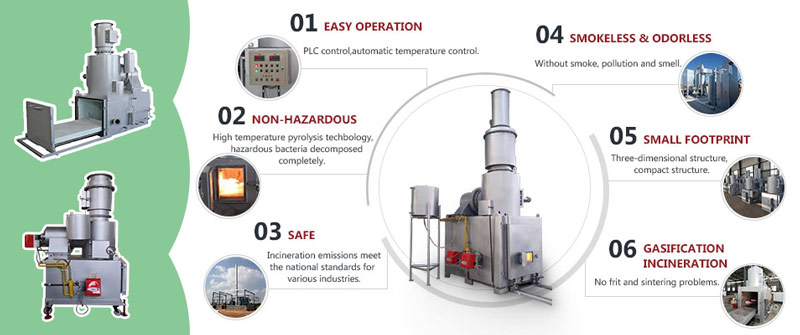

Incinerator Advantages
✅ Smokeless and Odorless, No Blank Smoke
High-temperature pyrolysis gasification technology+mixed incineration+burnout treatment.
Single/double/multi-stage flue gas treatment.
Enclosed burning, avoid secondary pollution.

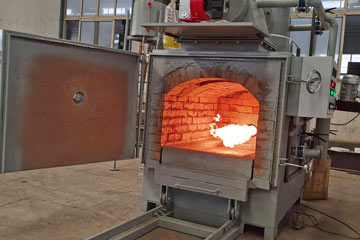

✅ High Temperature pyrolysis Process
Double chamber for incineration.
The chamber temperature up to 1300°C, retention 2 seconds.
✅ Low Consump Cost
With first-class Itlay Baltur burner, ensure good qualtiy.
Primary combustion chamber automatically starts and stops, effectively utilizing high-temperature flue gas, save fuel.
✅ Safe 100%, Easy to Install and Operate
Pre-assembled and well-debugged in our factory.
Simple to install the incinerator by Installation Steps.
Use ceramic fiber sealing tape rather than asbestos material. And high-strength refractory materials;
During the operation, auto ignition, auto control and temperature monitoring, automatic power cut off.
✅ The incinerator temperature reaches above the 1300°C continuously to ensure smokeless and tasteless and discharge up to standard.

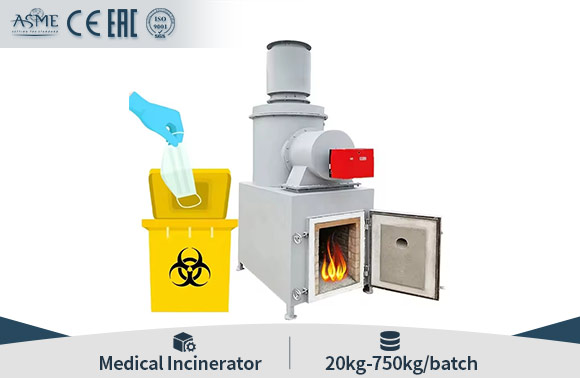

✅ Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
✅ Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
✅ Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

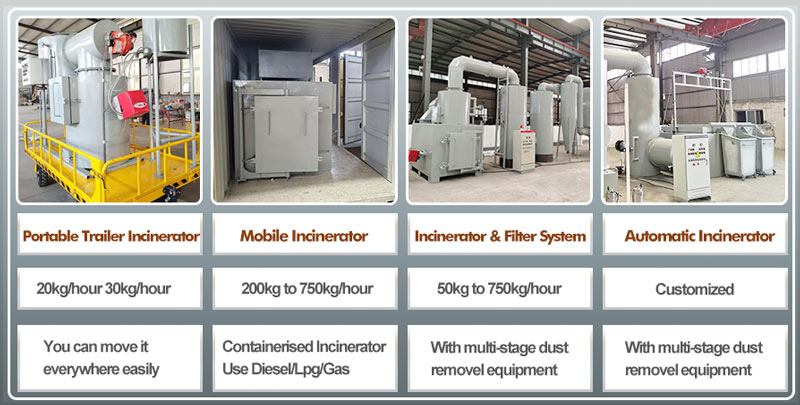

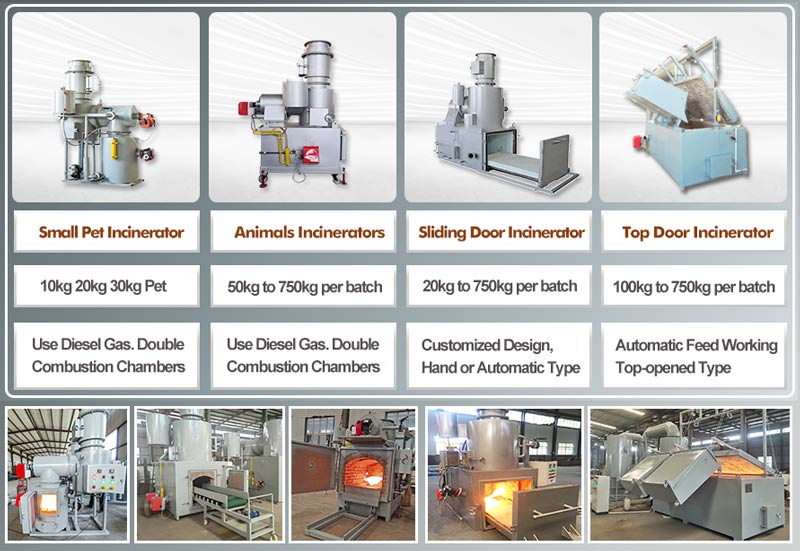

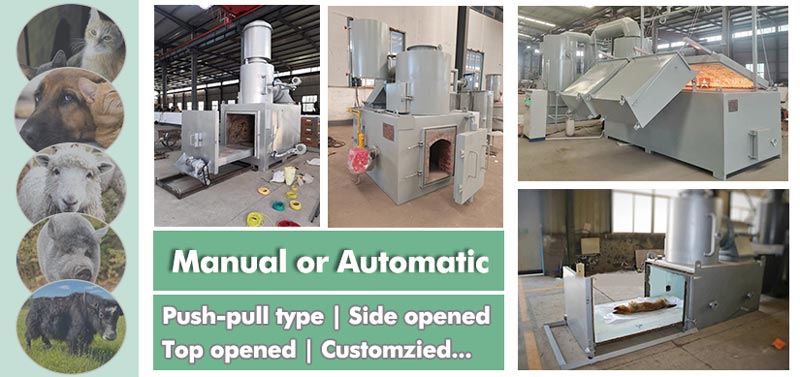

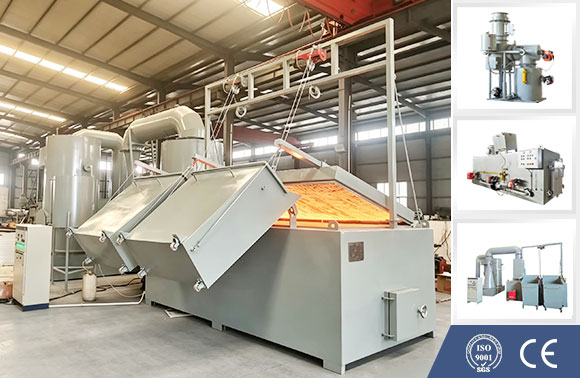

Customized Incinerator System

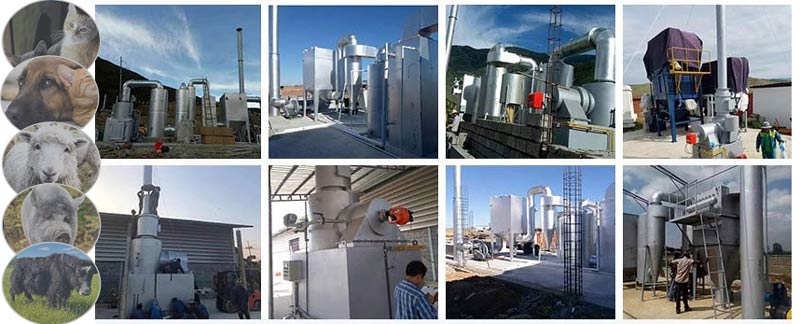

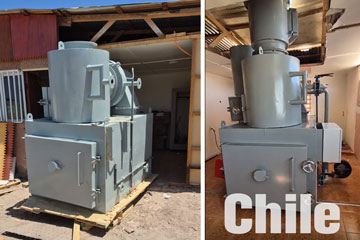

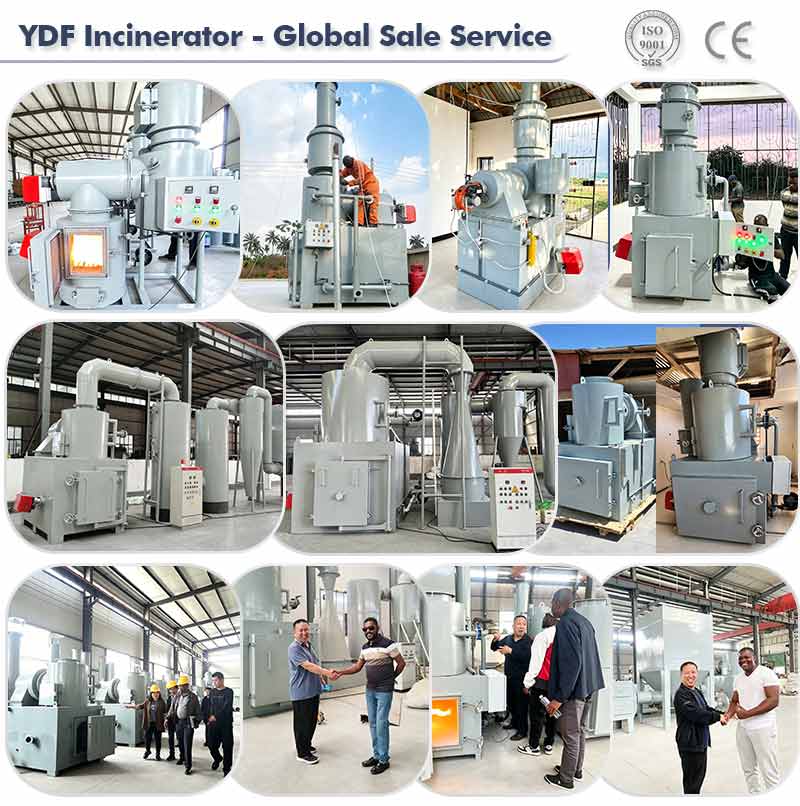

Yuanda Products Have Sold to 132 Countries & Regions, Global Sales & Services Worldwide

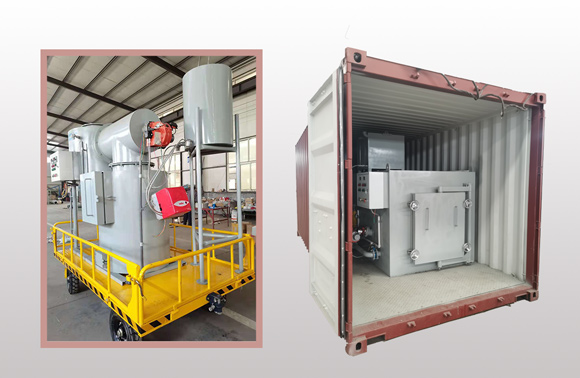

Incinerator Package & Delivery
We will pre-install the incinerator in factory, also do the commissioning work, then all parts detachable to small pieces for delivery.
Yuanda Incinerator Factory
1. Yuanda Company established since1956, mainly manufacture industrial boiler, incinerators.
2. Global sales with high quality products, with ISO CE ASME Certificates.
Incinerator Features
Environmentally Friendly Design

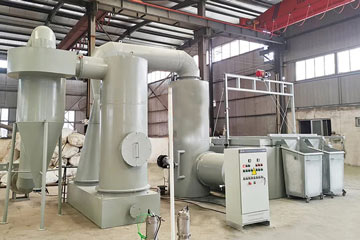

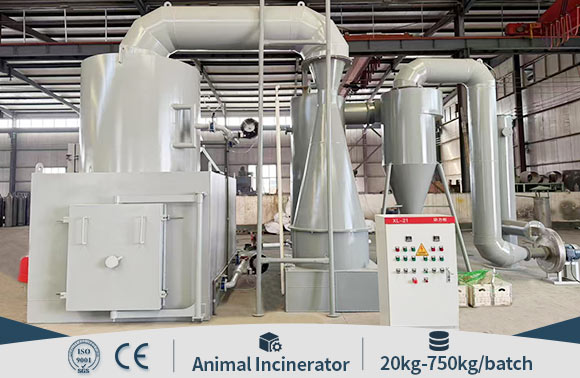

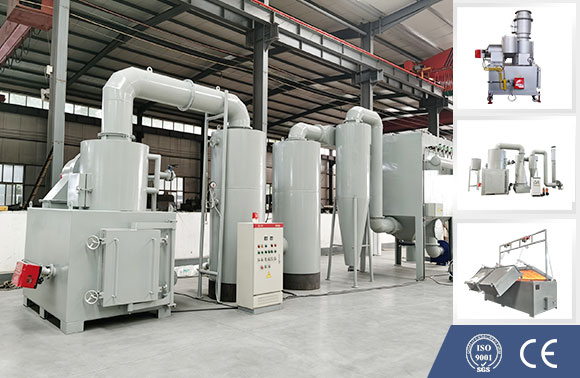

Equipped with flue gas purification systems such as dust collector, scrubber, and activated carbon filter to effectively remove smoke, odor, and toxic gases — compliant with environmental regulations.
High-Temperature Combustion
The incinerator adopts a double-chambers design and secondary combustion technology, ensuring complete burning of medical waste and minimizing harmful emissions.
Durable and Heat-Resistant Materials
Constructed with high-grade refractory lining and carbon steel components for long service life and stable performance under high-temperature conditions.
Customizable Capacity and Configuration
Various capacities from 20 kg/h to 1000 kg/h. Custom designs can be provided based on waste type, treatment volume, and local emission standards.Technical Parameter
| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
| Pet/Animals Weight (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
Waste Disposal
YDF Incinerator
Environmental Friendly Incinerator
YDF incienrators are widely used for animal & waste incineration solutions. No pollution & Lower NOx emission.
Trustable Quality & Service
Yuanda company supply good quality incinerator equipped with famous baltur burner. Reliable after-sale service anytime.
Our Company
Yuanda Company has 70 years of professional manufacturing experience. With 18 years of export history, sales service cover 132 countries and regions.
Our Certificates
Yuanda Boiler products meet international certification standards ISO, CE, ensuring safety, reliability, and quality.
