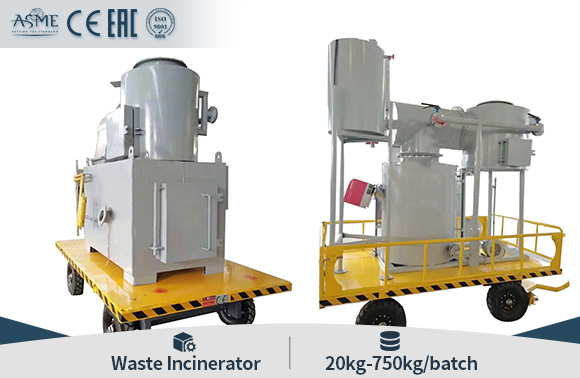

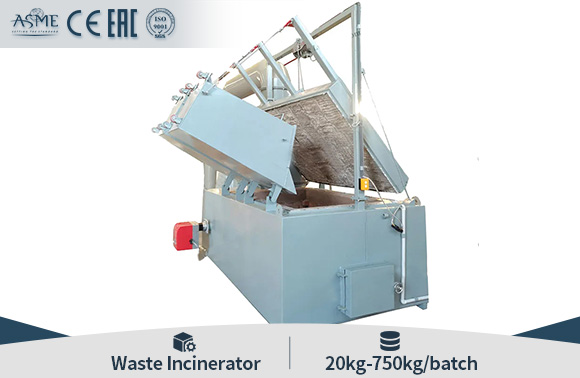

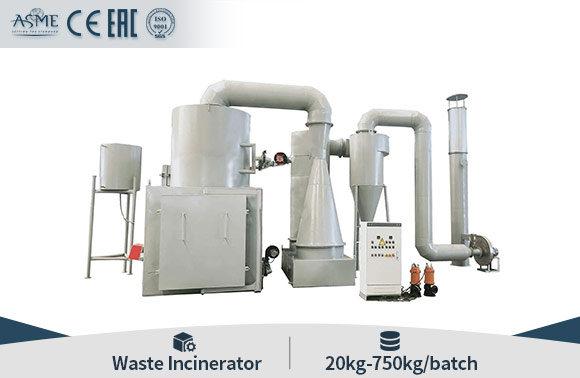

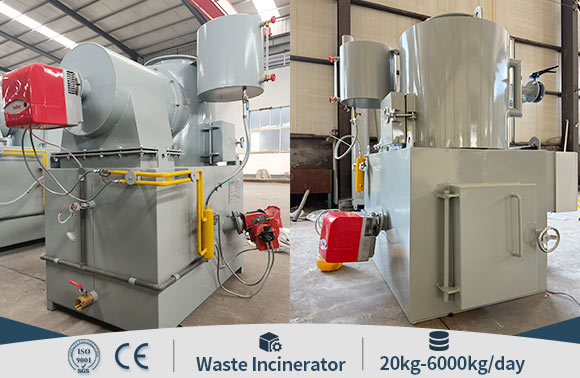

20kg-1000kg Incinerator For Garbage Waste, Incinerator For Pet Animals
 Model: |
20kg 30kg 50kg 100kg 150kg 200kg 300kg 400kg 500kg 750kg |
 Power: |
Diesel, Gas, Waste Oil, Lpg |
 Types: |
Floor-standing, skid-mounted, container-mounted |
 Certificates : |
ISO, CE |
Key Feature:YDF incinerator delivers efficient, eco-friendly waste disposal. Smokeless and Odorless. Clean emissions, fast operation, and durable consturction design.
Introduction

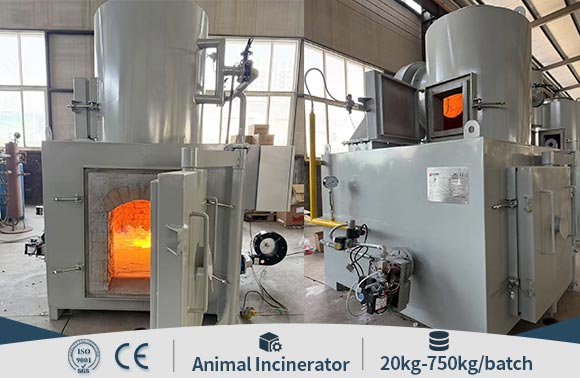

Garbage Waste & Animal Incinerator
Incinerator For Waste Management 20kg-7000kg one day.
YDF Waste Incinerator Advantages
1. Smokeless and Odorless, No Blank Smoke
High-temperature pyrolysis gasification technology+mixed incineration+burnout treatment.
Single/double/multi-stage flue gas treatment.
Enclosed burning, avoid secondary pollution.
2. High Temperature pyrolysis Process
Double chamber for incineration.
The chamber temperature up to 1300°C, retention 2 seconds.
3. Low Consump Cost
With first-class Itlay Baltur burner, ensure good qualtiy.
Primary combustion chamber automatically starts and stops, effectively utilizing high-temperature flue gas, save fuel.
4. Safe 100%, Easy to Install and Operate
Pre-assembled and well-debugged in our factory.
Simple to install the incinerator by Installation Steps.
Use ceramic fiber sealing tape rather than asbestos material. And high-strength refractory materials;
During the operation, auto ignition, auto control and temperature monitoring, automatic power cut off.
How Incinerator Works
YDF Incinerator Features
Our incinerator is provided with the currently most advanced incineration way, i.e., primary pyrolysis gasification + co-firing of surrounding wind +secondary incineration +burnout treatment.
1) The incinerator temperature reaches above the 1200°C continuously to ensure smokeless and tasteless and discharge up to standard.
2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
3) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
4) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

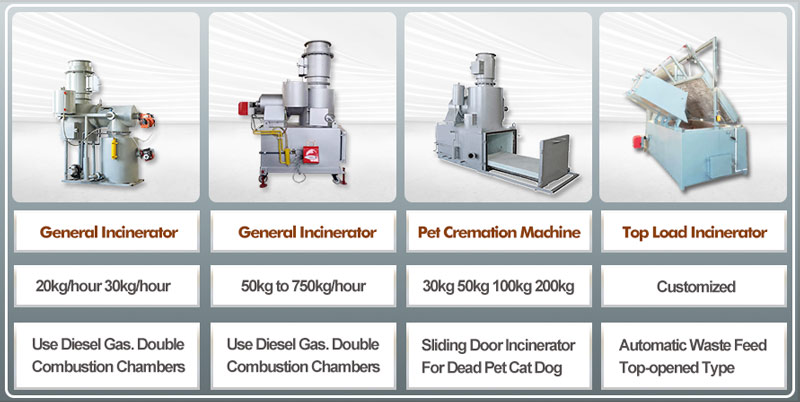

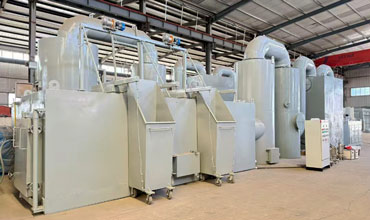

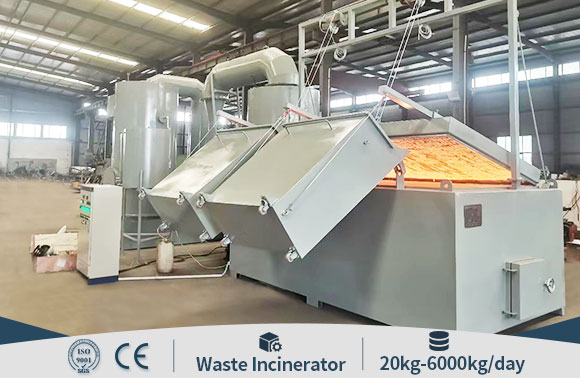

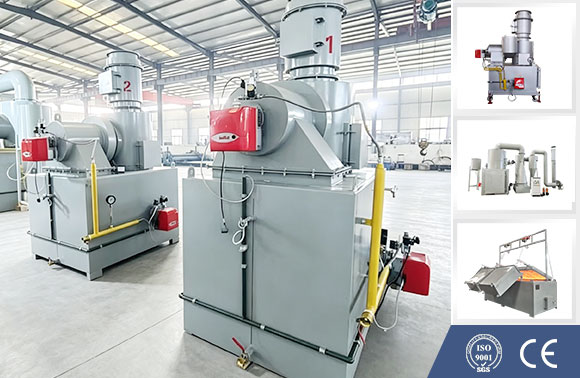

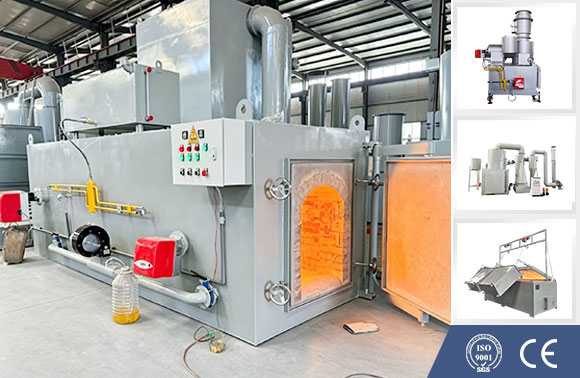

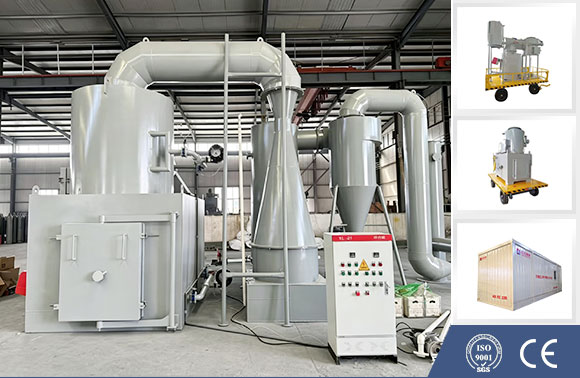

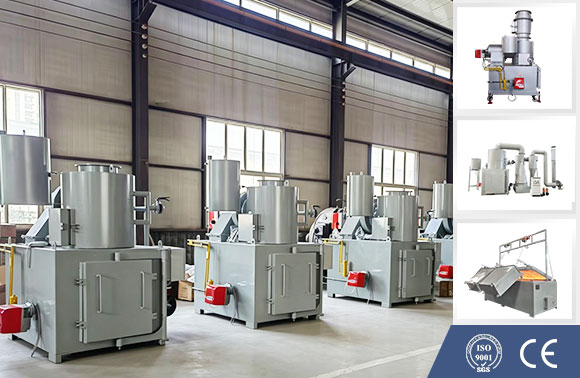

Kinds of Incinerators Showing

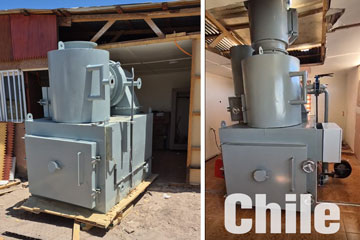

YDF Incinerator Cases
Yuanda Products Have Sold to 132 Countries & Regions, Global Sales & Services Worldwide

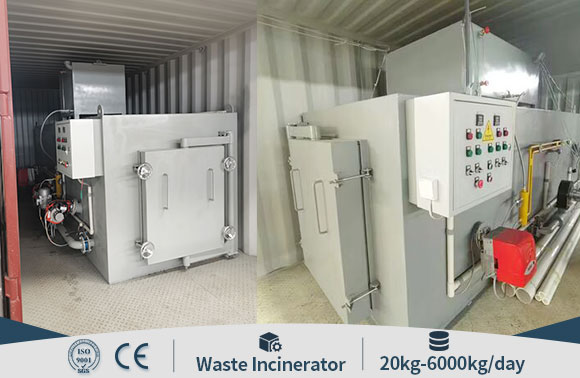

Incinerator Package & Delivery
We will pre-install the incinerator in factory, also do the commissioning work, then all parts detachable to small pieces for delivery.

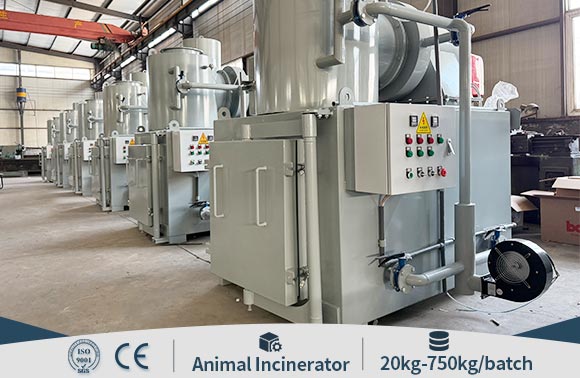

Yuanda Incinerator Factory
1. Yuanda Company established since1956, mainly manufacture industrial boiler, incinerators.
2. Global sales with high quality products, with ISO CE ASME Certificates.
YDF Incinerator
Environmental Friendly Incinerator
YDF incienrators are widely used for animal & waste incineration solutions. No pollution & Lower NOx emission.
Trustable Quality & Service
Yuanda company supply good quality incinerator equipped with famous baltur burner. Reliable after-sale service anytime.
Our Company
Yuanda Company has 70 years of professional manufacturing experience. With 18 years of export history, sales service cover 132 countries and regions.
Our Certificates
Yuanda Boiler products meet international certification standards ISO, CE, ensuring safety, reliability, and quality.
Technical Parameter
| Models | YDF-20 | YDF-30 | YDF-50 | YDF-100 | YDF-150 | YDF-300 | YDF-500 | |
| Processing Capacity (kg/batch) | 10-20 | 20-30 | 30-50 | 50-100 | 100-150 | 200-300 | 300-500 | |
| Working Hours Per Batch Cycle* (min) | 90-120 | |||||||
| Primary Chamber Volume (m3) | 0.2 | 0.38 | 0.5 | 1 | 1.5 | 2.4 | 3.5 | |
| Waste Feeding Gate Size (mm) | 380 x 480 | 480 x 600 | 620 x 800 | 700 x 900 | 760 x 960 | 900 x 1100 | 1080 x 1280 | |
| Temperature (℃) | Primary Chamber | 900 | ||||||
| Second Chamber | 1300 | |||||||
| Smoke Residence Time (s) | > 2 sec in second chamber | |||||||
| Applicable Waste Type | Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component | |||||||
| Primary Burner - Baltur Italy | BTL-6, 0.11kw | BTL-6, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-10, 0.11kw | BTL-14, 0.18kw | |
| Second Burner - Baltur Italy | BTL-10, 0.11kw | BTL-14, 0.18kw | BTL-14, 0.18kw | BTL-20, 0.18kw | BTL-20, 0.18kw | BTL-26, 0.25kw | BTL-35, 0.37kw | |
| Total Diesel** Consumption (litre/h) | 11-18 | 11-18 | 14-23 | 16-35 | 16-35 | 20-40 | 38-57 | |
| FD Fan Power (kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75+0.75 | |
| Applicable Voltage | 380V 3Phase / 220V 1Phase | |||||||
| Outer Dimensions (m) | 1.6 x 1.3 x 2.65 | 1.45 x 0.9 x 2.6 | 1.8 x 1.2 x 3 | 1.86 x 1.4 x 3.2 | 2.1 x 1.5 x 3.5 | 2.25 x 1.6 x 3.8 | 3.0 x 2.0 x 4.8 | |
| Chimney Dimensions (mm) | φ280 x 6000 | φ280 x 6000 | φ300 x 9000 | φ330 x 9000 | φ380 x 9000 | φ400 x 9000 | φ460 x 9000 | |
| Weight (kg) | 2000 | 3000 | 5000 | 6800 | 8000 | 9600 | 15000 | |
| Manufacturing Standard | GB 18484-2020 (equals to EPA or EU standards) | |||||||
Waste Disposal
Incinerator Advantages
Devote To Use Easily
Easy operation, full automatically, one worker can operate it easily. Easy installation Well-debugged in factory. On-site Flange connection.

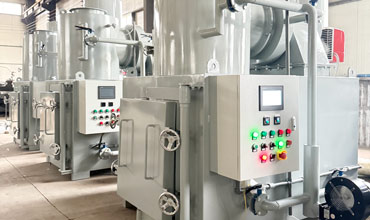

Firebrick
The interior adopts high temperature firebrick, which can withstand high temperature 1700ºC, the outer wall adopts thermal insulation brick to isolate heat.
High temperature pyrolysis technology
With the Italian baltur burner, the highest temperature can reach 1200 degrees Celsius, which can achieve the effect of sterilization and disinfection.
Smokeless & Odorless
Two-stage combustion technology, comply with national emission standards. Stable operation, low failure rate.YUADNA PRODUCTS
