Industrial Electric Steam Boiler

Product capacity: 35kg-10,000kg 30kw-7000kw
Working pressure: 0.1Mpa-3.8Mpa 1bar-38bar
Available fuel: Heating by electricity, electric steam boiler
Available industries: For heating, drying process, such as in foods process, cheese factory, milk factory, poultry, feed mill, garment factory, school, hotel, laundry, kitchen......

Key selling points:WDR commercial electric steam boiler, horizontal package electric steam boiler & stainless steel tubular boiler & automatic operation & easy install and quick into use & no air pollution boiler

Introduction

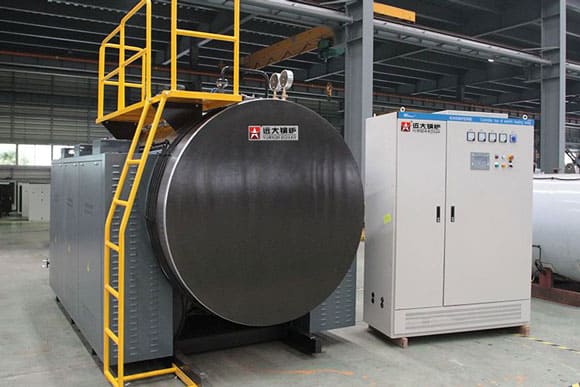

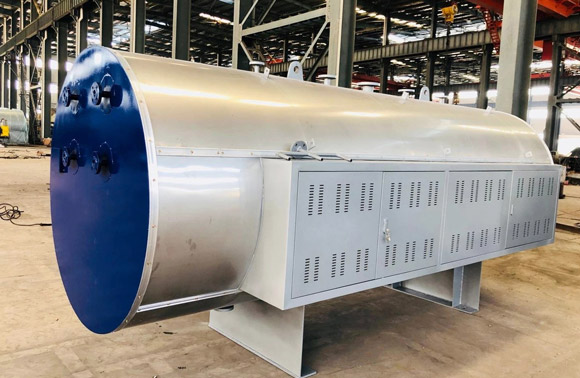

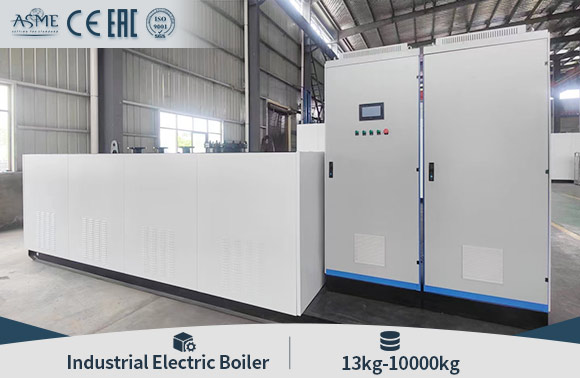

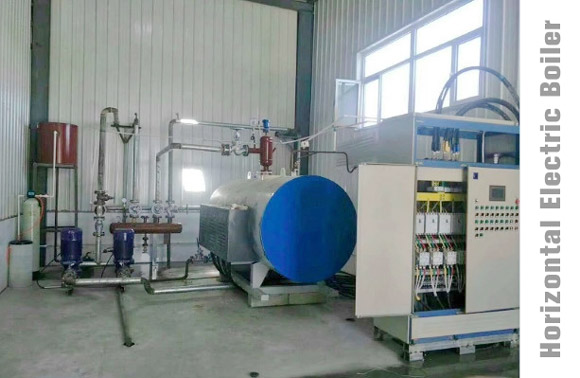

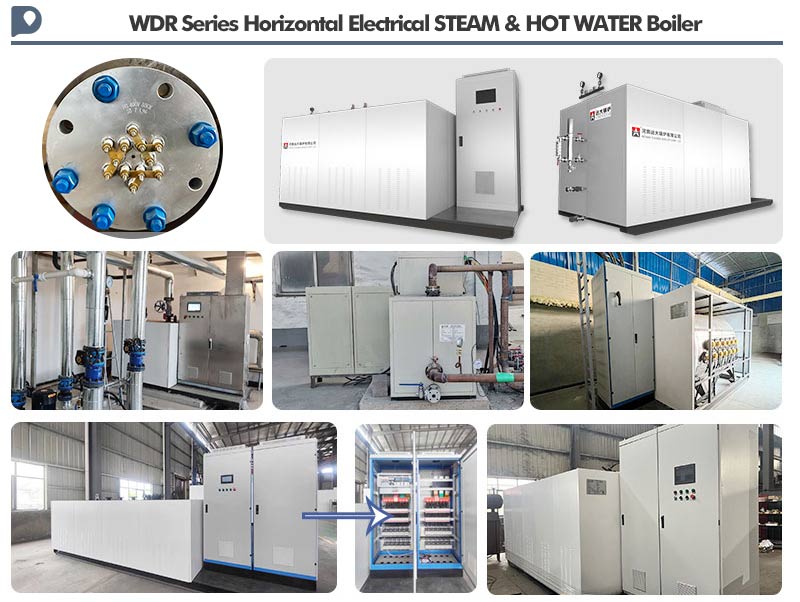

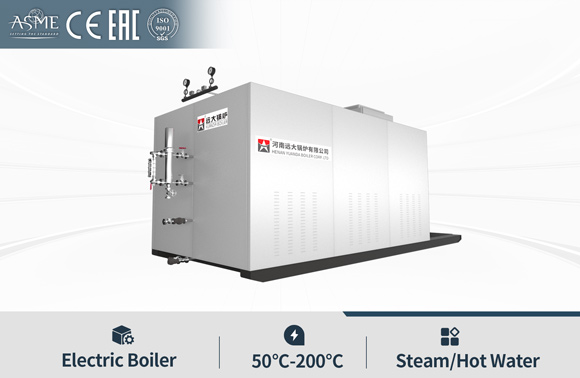

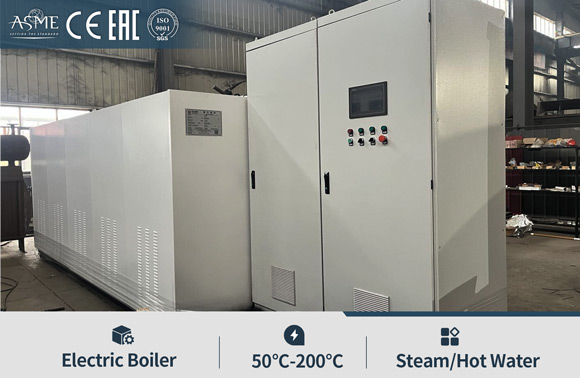

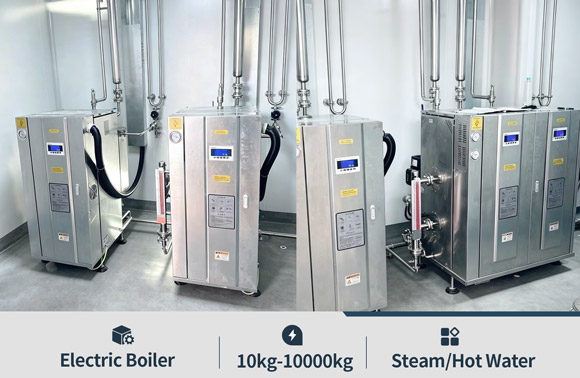

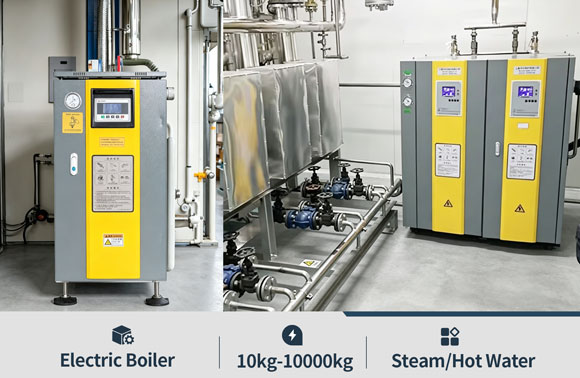

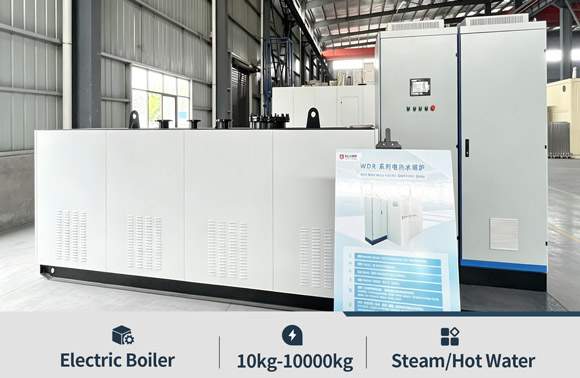

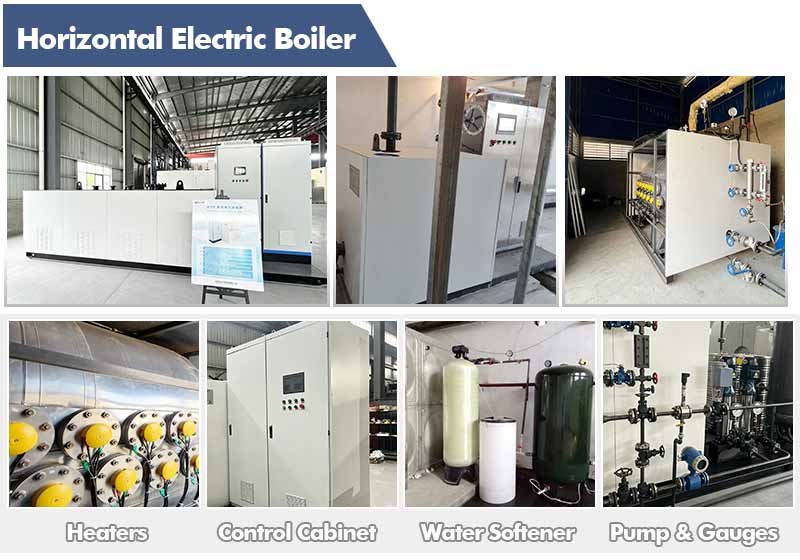

WDR Electric Steam Boiler |Horizontal Type

WDR type electric boiler uses electric energy as energy, is horizontal type electric boiler. Boiler inner consist of stainless steel heating tube (advantages: low surface load, high thermal efficiency and long service life), each heating tube is connected by a separate small flange (which is convenient for maintenance). Boiler thermal efficiency is nearly 95%

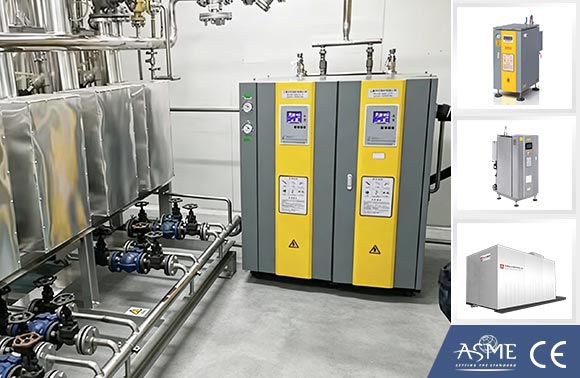

electric steam boiler,horizontal electric boiler,WDR electric boiler

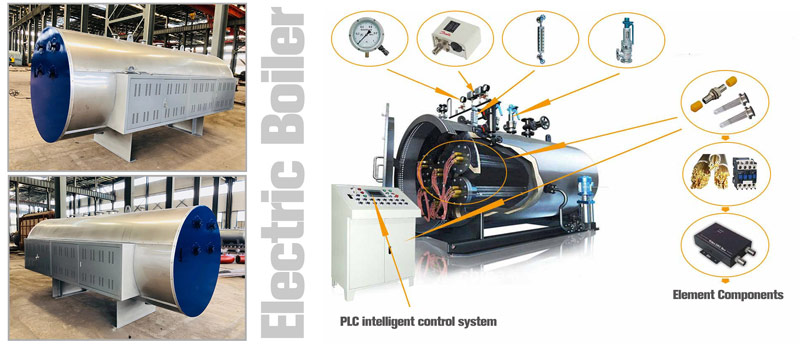

Electric Boiler System Diagram

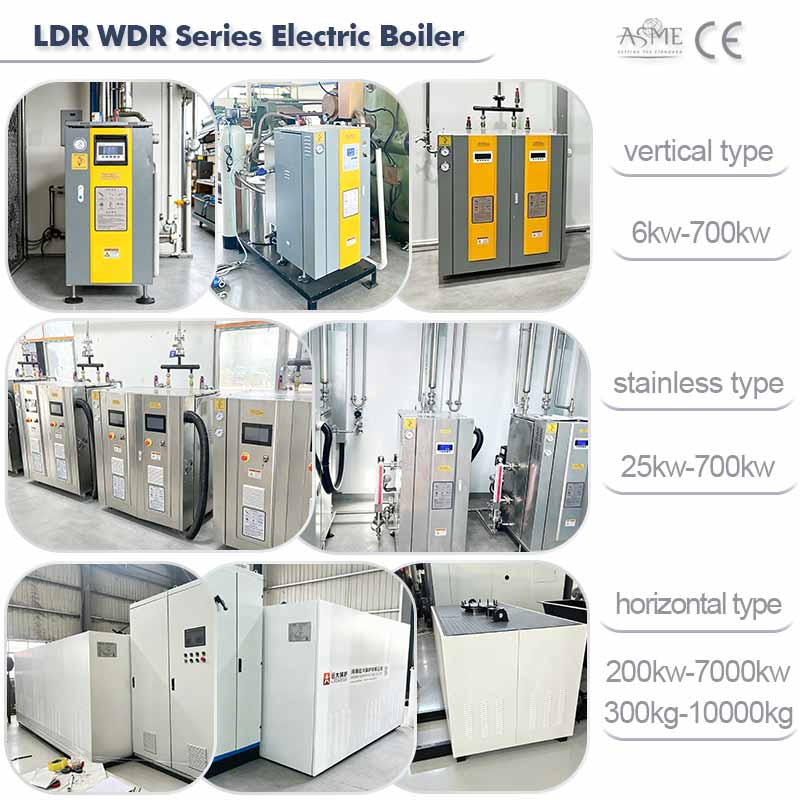

horizontal electric boiler,WDR electric steam boiler,WDR electric boiler

Specifications of Electric Boiler

1. Stainless steel electric heating tube, each group heating elements is connected by a centralized beam flange independently. Simple structure, high mechanical strength, safety and reliability, easy replacement.
2. Quick start-up, good steam quality, strong operating load, fast to adjust and simple to operate.
3. Automatic to adjusts heating groups according to the temperature difference and load changes, help saving energy consumption.
5. Intelligent controller & micro display screen,  display equipment status, operating parameters and fault alarms.With advantages of reliable performance, high degree of automation, and convenient use.
6. Boiler insulation use 12cm aluminum silicate board, ensures the long-term energy-saving operation of the boiler. Both ends of boiler is convenient for installation and maintenance.
7. Protective function
(1) Leakage: when detects the electricity leakage, will cut off the power supply automatically.
(2) Water shortage: When short of water, cut off the power supply and issue a alarm indication.
(3) The furnace shell is overheated: the boiler immediately stops running.
(4) Abnormal power supply: the boiler immediately stops running and chain sound and light alarm.

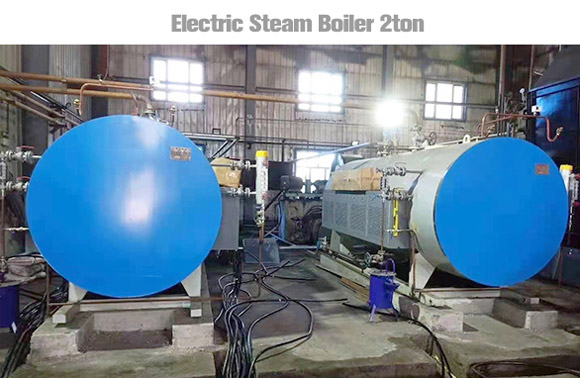

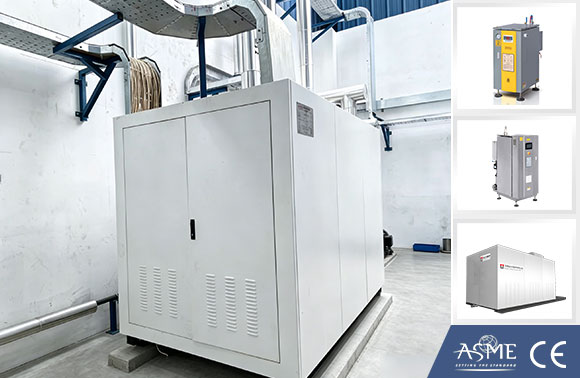

electric steam boiler 2ton,1ton electric boiler,4ton electric boiler

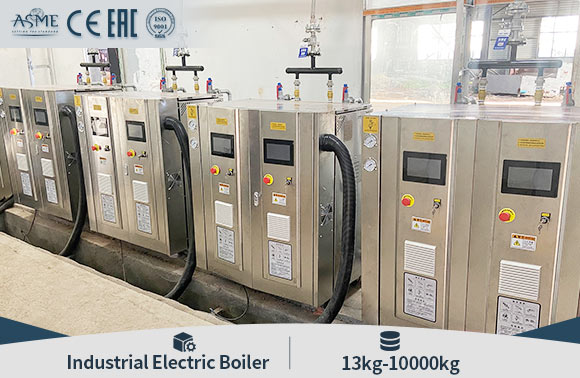

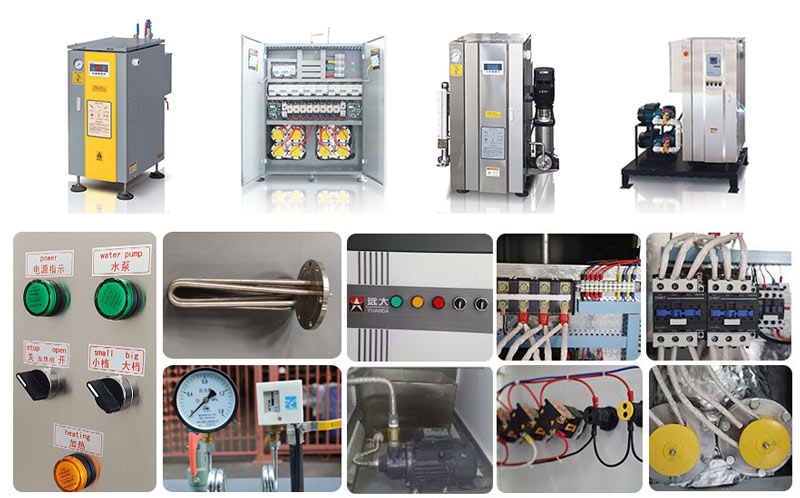

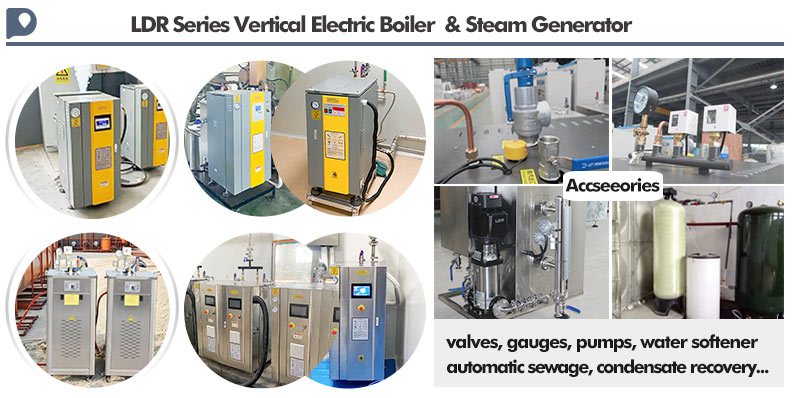

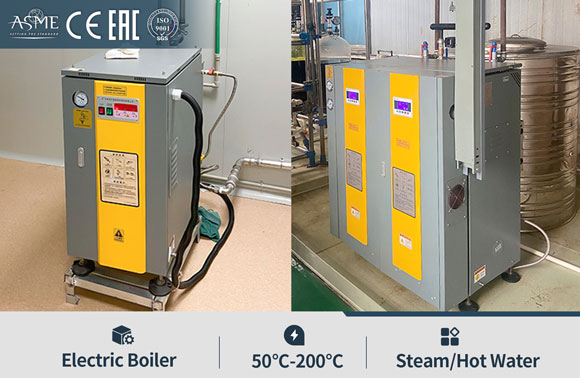

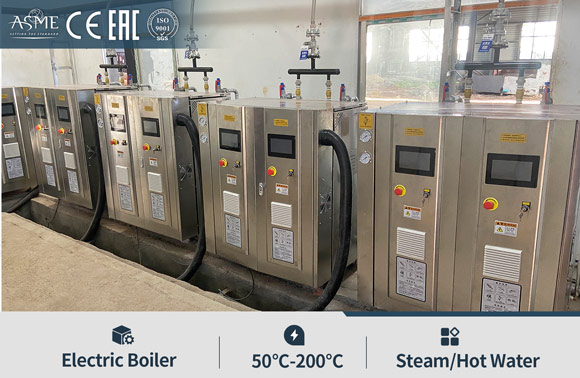

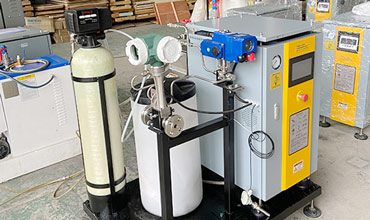

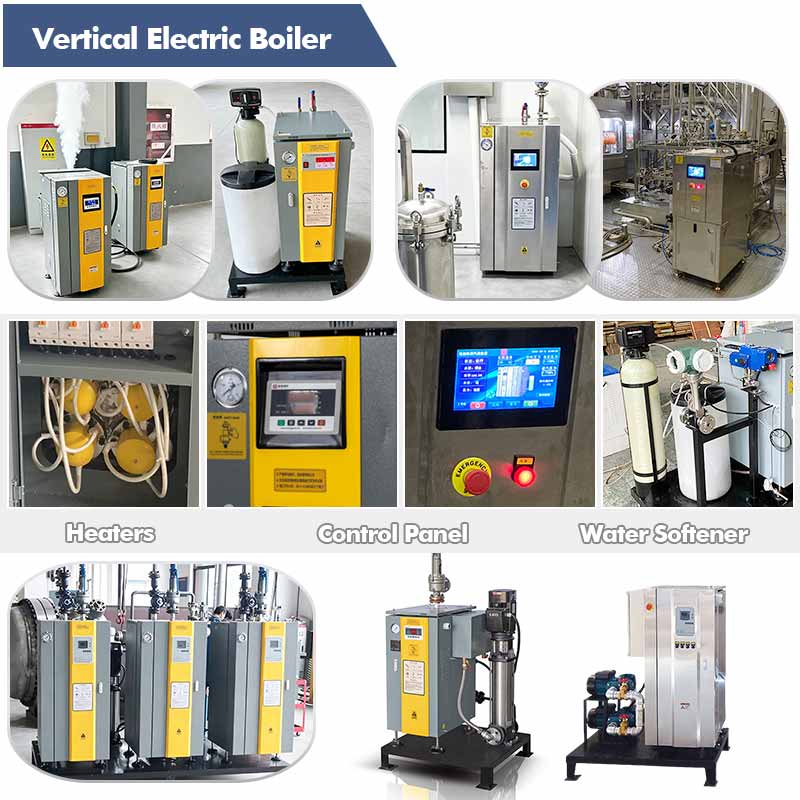

Choice B: Vertical Electric Boiler (50kg to 500kg)

Small vertical type electric heating boiler, use stainless steel heating tube, available thermal capacity in 35kw to 700kw.

electric steam generator,electric steam boiler,electrical boiler

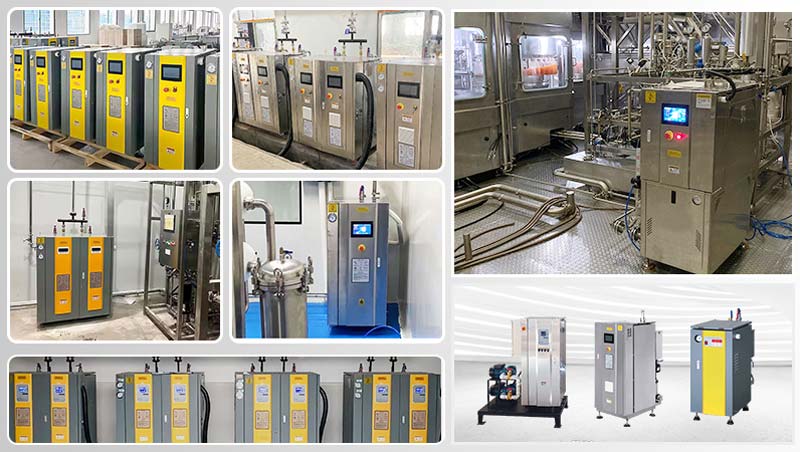

LDR electric boiler,electric steam generator,electric steam boiler

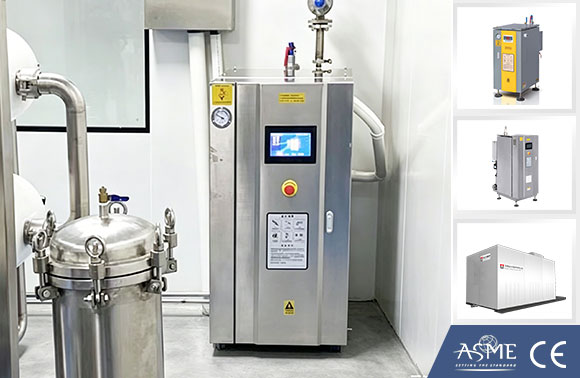

vertical electric steam generator,vertical electric boiler,small electric steam boiler

Technical Parameter

Model
Steam Capacity
t/h
Work Pressure
MPa
Steam Temperature
Rated Voltage
V
Power×Group
KW×P
Inlet Diameter
DN
Outlet Diameter
DN
Safety Diameter
DN
Sewage Dalve Diameter
DN
WDR0.5 0.5 1 110°C-250°C 110/220/240/380/420 60×6 32 50 2×40 40
WDR1 1 1 60×12 40 50 2×40 40
WDR2 2 1 120×24 40 65 2×40 40
WDR3 3 1 36×60 40 80 2×50 40
WDR4 4 1.25 36×80 40 100 2×50 40

Our Supply Equipment List

Boiler proper
PLC control cabinet

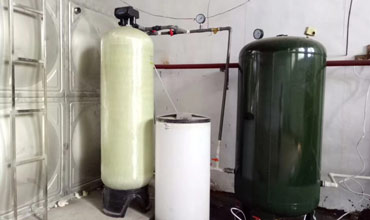

Water treatment device
Bottom valves
Water pump
Valves & Instruments
Steam flow meter
Electrode sensor
Steam seperator
Safety valves
Pressure controller
......

Design Specificaions

electric boiler heating tubes

Stainless Heating Tube

High-quality stainless steel electric heating tube and independent flange connection, to ensure safety.

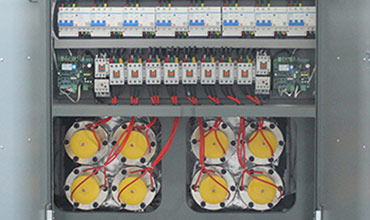

electrical boiler components

High Quality Electrical Components

All electrical components have CE and UL certification, ensure safety and service life.
electric boiler plc control cabinet

PLC control system

The SIEMENS PLC programming control display screen reflects the equipment status, operating parameters and fault alarms.
electric boiler control system

Gauges & Valves System

High-precision safety instrument valves are used for one backup and one use to ensure that the boiler is foolproof.

Electric Boiler Advantages

Automatic & Intelligient Control

Intelligient control system for boiler operation, no pollution, no noise, convenient installation, small occupation, full automatic control and high thermal efficiency.

Energy-saving Efficient Electric Boiler

Thermal efficiency up to 99%, equipped with erengy-saving device Economizer, Condenser, Steam generator, Exhaust gas boiler. Fully absorb heat of flue gas and transfer to useful energy.

High Quality & Strong Power

Design steam-water separator, reduce steam humidity and ensure steam quality. Boiler design 5-10% overload capacity, satisfy customers' demand for factory using. Enough steam output per hour.

Safety & 25+Years Lifespan

Double safety valve, double water level gauge, double pressure gauge design: backup guarantee, safe and reliable; Smoke chamber ultrasonic testing, overpressure 40-50% water pressure test,ensure the boiler quality.
