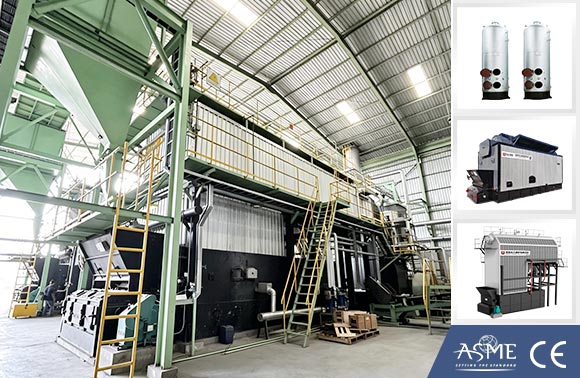

SZL Water Tube Biomass Boiler
 Product capacity: |
2t/h-50t/h 1.4mw-35mw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Biomass, wood, coal, ricehusk, peanuts, palm shells, coconuts, solid fuel |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Key selling points:SZL biomass fuel fired boiler, water tube boiler, double drums A or D layout structure, cyclone re-burning chamber design greatly enhance boiler efficiency, long lifespan 20+ years
Introduction

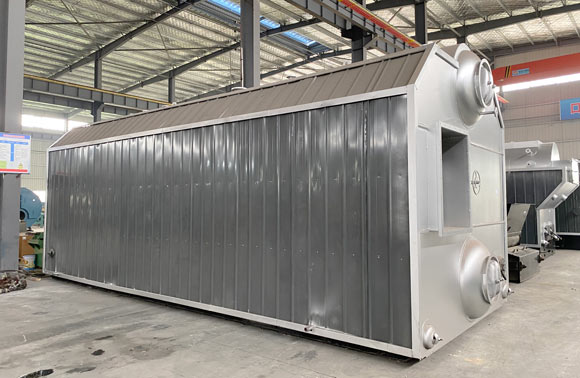

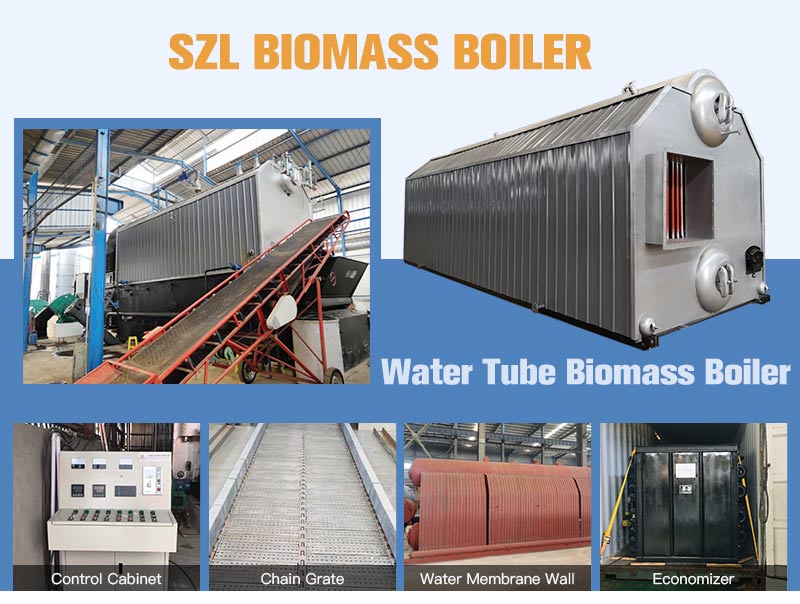

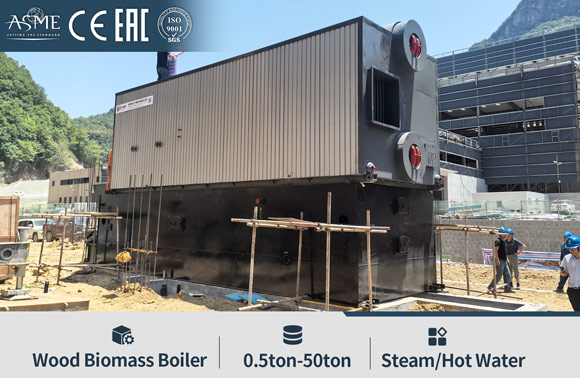

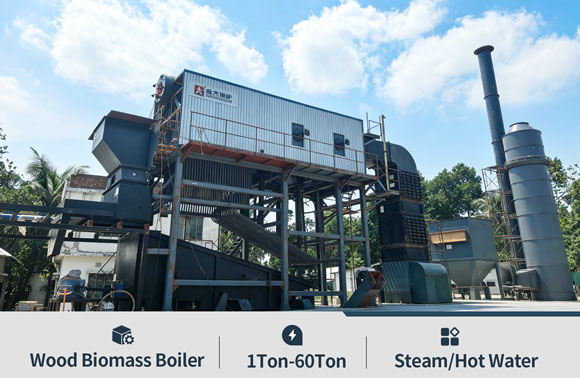

SZL Water Tube Biomass Boiler
Yuanda SZL series water tube boiler, water membrane walls design & double drums layout "A" Or "D" type structure, equipped with combustion device: chain grate/reciprocating grate.
SZL Biomass Boiler Advantages
SZL biomass boiler design capacity in 4ton-50ton. Advantages: High technology, environmental and energy-saving. Large heating surface, make sure enough space for biomass burning, automatic fuel feeding and slag removing system.
1. Cyclone chamber structure, high-temp flue gas through high-speed rotation/mixing combustion/dust separation, achieving dust removal & energy saving & environmental protection.
2. Indenpend wind chamber structure, make air regulation sensitive and make wind uniformly, resolve the wind plug, wind channeled, partial burn phenomenon.
3. Membrane water wall construction, structure advantages of high heat transfer coefficient, good heat transfer effect, low heat loss, good air tightness of furnace wall.

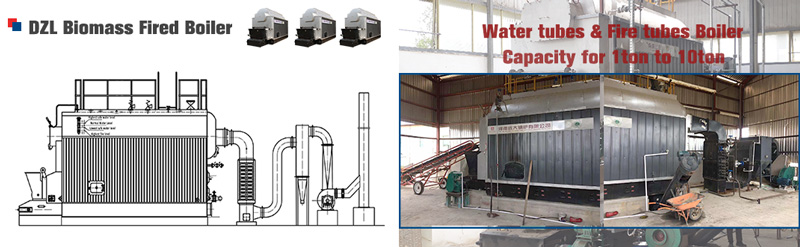

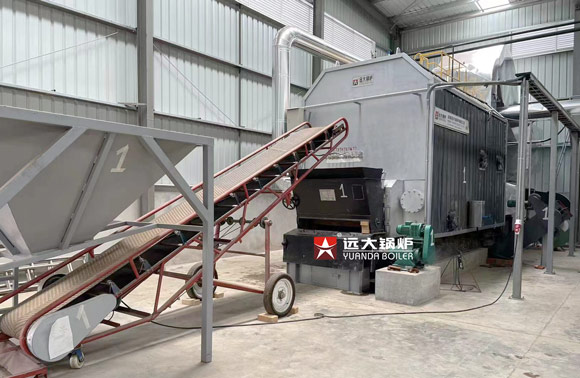

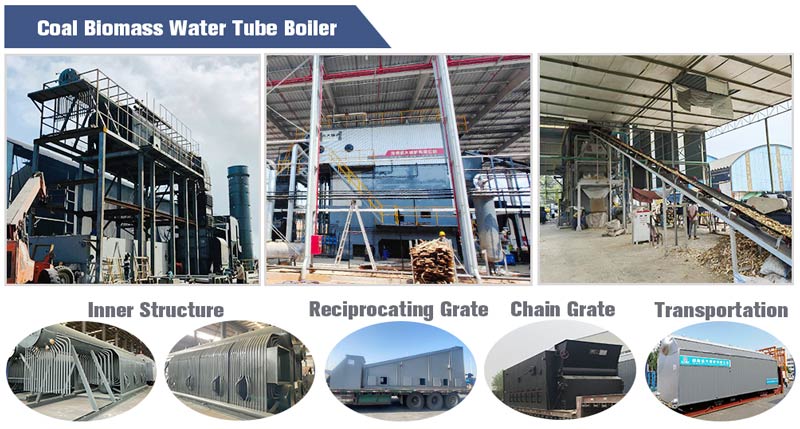

Related: DZL Water tubes & Fire Tube Boiler

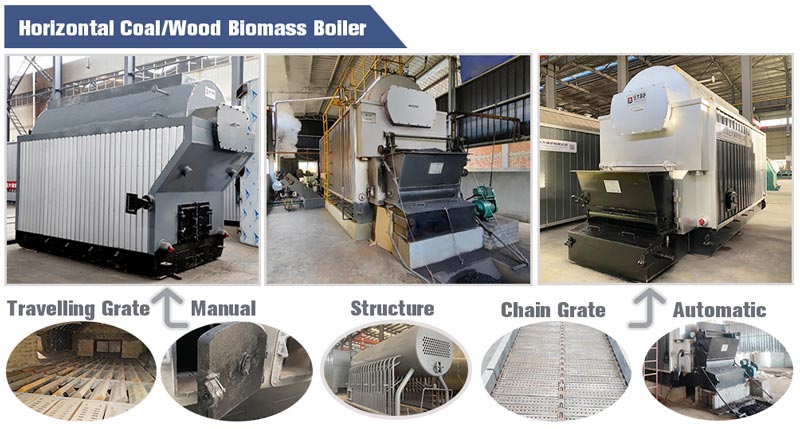

DZL single drum biomass boiler, inner water tubes & fire tubes design, use chain grate automatic feeding, work efficiently.

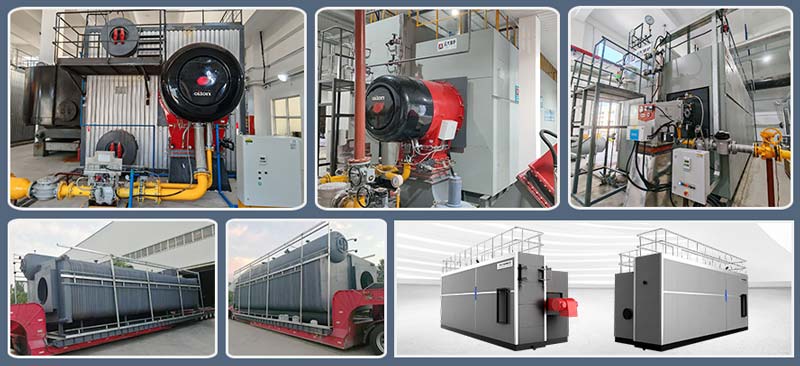

Related: Water Tube Gas/Oil Fired Boiler
Automatic gas oil fired boiler, has double drums water-membrane structure, suitable for 10ton to 50ton capacity boiler.
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)

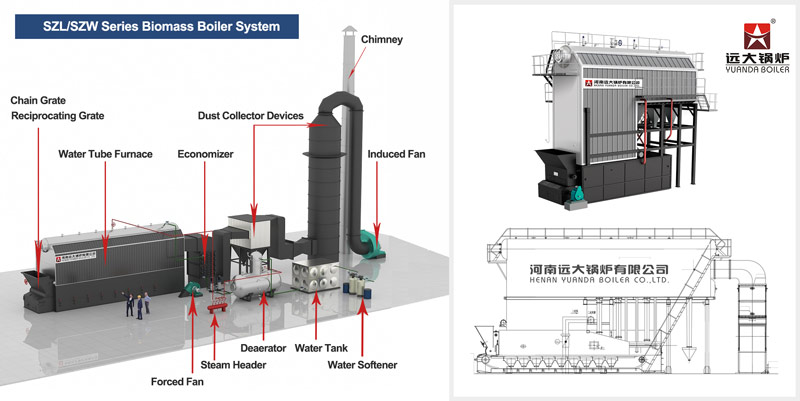

3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| SZL Series Steam Boiler Technical Parameter Table | |||||||||
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| SZL2 | 2 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞83.13 | 6.76 | 130.7 | 385.8 | 22 |
| SZL4 | 4 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.23 | 5.1 | 142 | 807 | 29 |
| SZL6 | 6 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.81 | 8.4 | 142 | 1209 | 34 |
| SZL8 | 8 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞85.02 | 9.4 | 149.1 | 1563.9 | 40.5 |
| SZL10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.2 | 8.35 | 152.7 | 2149.3 | 24 |
| SZL12 | 12 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.56 | 12.8 | 148.7 | 2399.7 | 37 |
| SZL15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.29 | 15.2 | 149.8 | 2568.4 | 24.7 |
| SZL20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.8 | 15.5 | 147.4 | 4266.9 | 26 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||

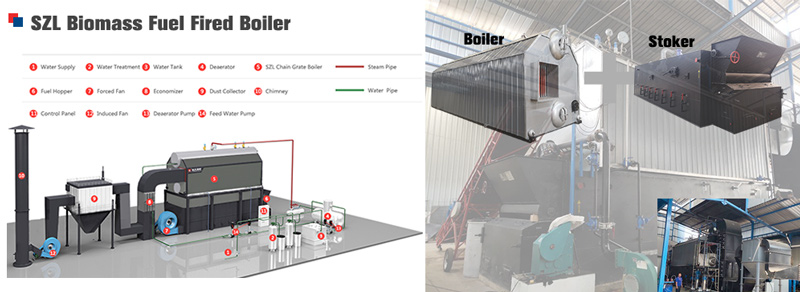

Our Supply Equipment List
SZL Boiler Advantages
Unique warehouse and auto feeding
The big speed bin design could control fuel transmit mass automatically according to the thermal energy, isolate flame and flue to prevent tempering
Whole membrane water wall
Increased 50% heating area than traditional, refractory brick furnace wall will reduce weight and transport cost, improve efficiency and energy saving
Security guaranteed & Automation
With a set of alarm,protection and security guaranteed, 100% safety. Control cabinet use siemens elements, trustable quality & control strictly
Economizer & Dust collector device
Reuse waste heat in exhaust gas, energy saving devide (economizer); Remove the dust and ash, protect envrionment and reduce pollutionFAQ of SZL Biomass Boiler
Question: what's thermal efficiency of SZL biomass boiler？
Answer: SZL biomass boiler has higher efficiency than other old design boiler, take 10ton palm shells boiler example, thermal efficiency>86.2%
Question: Are there other biomass boiler models ?
Answer: Yes, including dzl chain grate biomass boiler, dzh biomass boiler, vertical biomass boiler, chain grate boiler, reciprocating grate boiler...
Question: Do you support customized boiler service for projects?
Answer: Yes, we have technique research center team, make unique boiler solution. Tell about your requirements, let's have more discuss.
Question: Do you supply complete accessories for boiler system？
Answer: Yes, we supply all accessories such water treatment device, economizer, ID fan, forced fan, slag remover, sawdust collector...
Question: Do you supply installation services ?
Answer: Our senior engineer Mr.Gao already arrived 50+countries for boiler services. Now, we adapt online video guidance for quick services.
