Portable Steam Generator Boiler
 Product capacity: |
100kg-5000kg 100kw-3500kw |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Diesel, heavy oil, waste oil, dual fuel |
 Available industries: |
For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel... |
Key selling points:Portable movable gas oil fired boiler, three pass fire tube boiler, automatic sufficient steam output & high quality steam for use, energy saving high efficiency boiler
Introduction

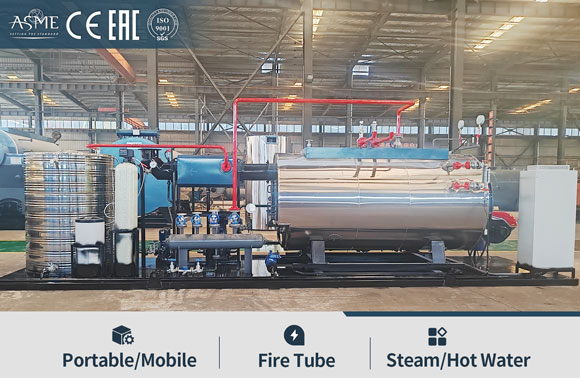

Portable steam generator boiler | skid mounted boiler | containerised boiler
1. Portable/movable steam boiler, use diesel oil as fuel burning, boiler body and accessories equipment are installed in a container room or platform.
2. We will finish the boiler installation in our factory before shipment, hence it's easy and fast for the user to install the boiler in their factory.
Do you wanna your boiler to be installed before shipment ？

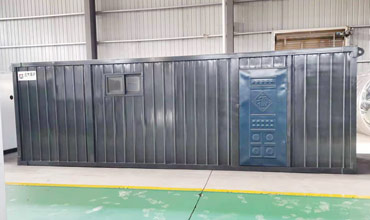

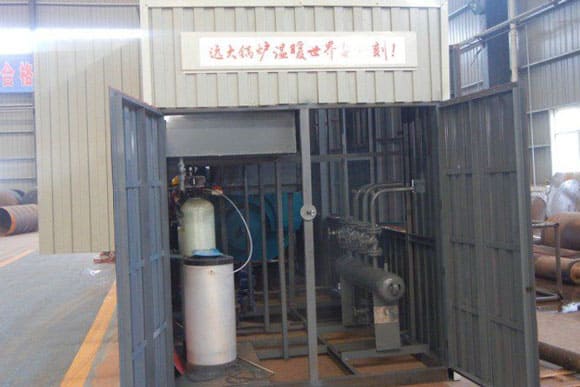

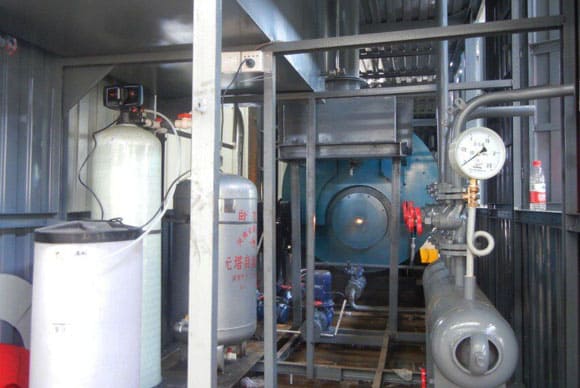

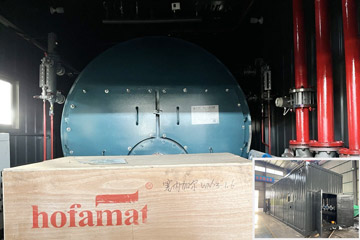

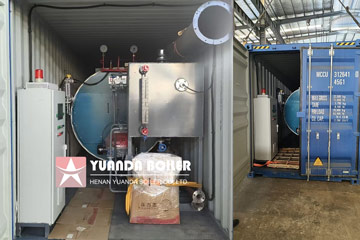

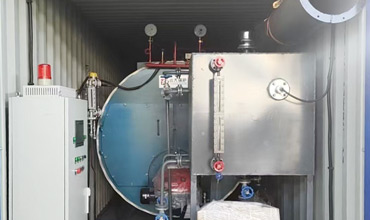

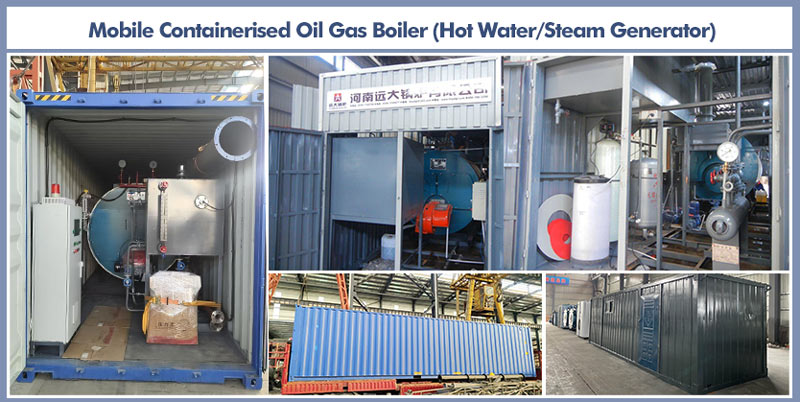

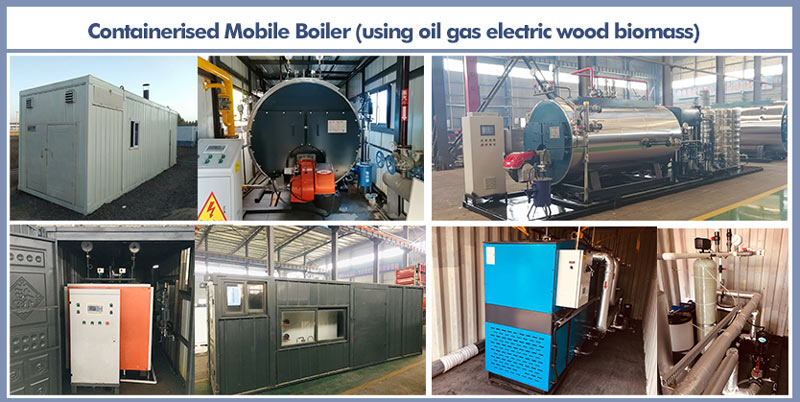

1. Containerised Type Boiler (Mobile Boiler)
Boiler and all accessories are put in container, could be container steam boiler, container hot water boiler. Mostly only gas or diesel oil fuel powered boiler can be installed in container, easy to deliver everywhere.

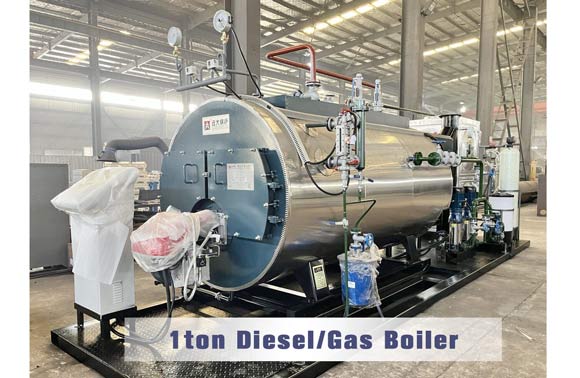

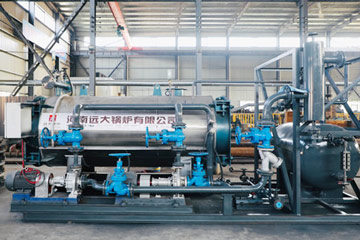

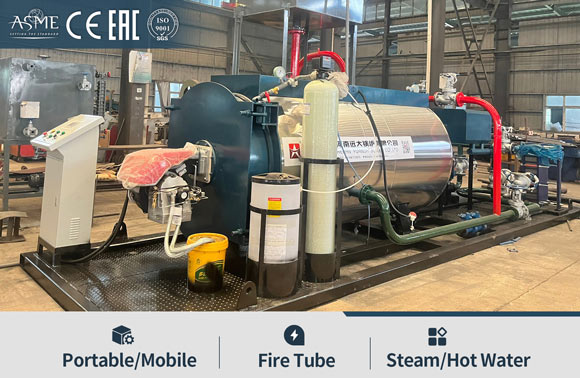

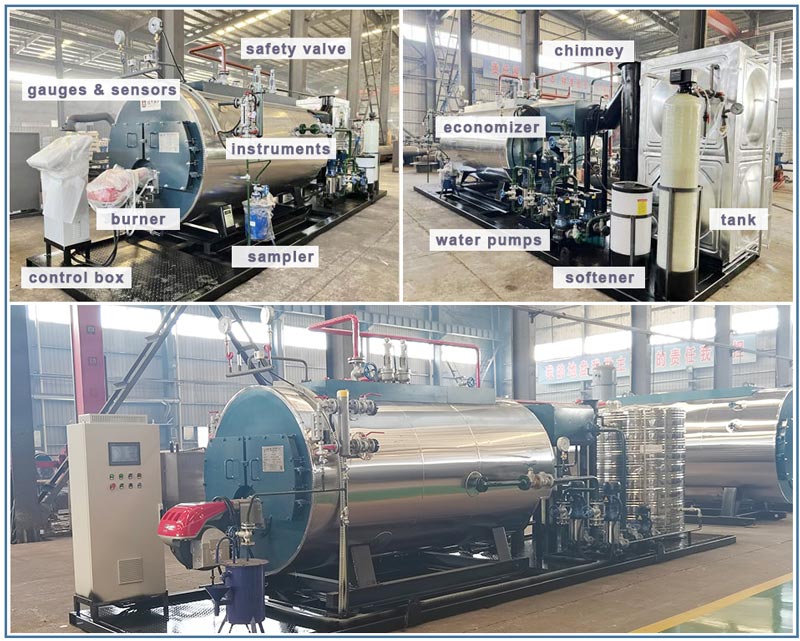

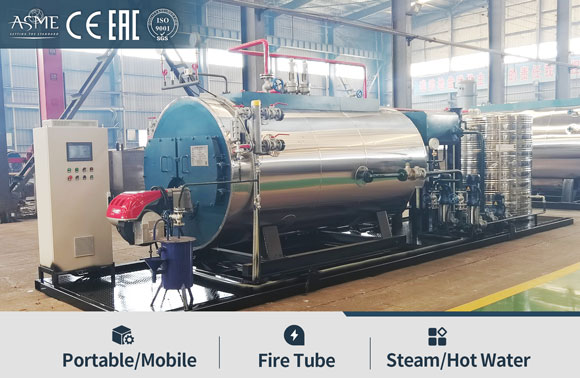

2. Skid-mounted Type Boiler
Portable skid mounted boiler, put boiler body and all accessories on flat form. Mostly, its one gas or diesel oil boiler skid-mounted, also we have elctric boiler, wood boiler skid-mounted type.
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5-1.0/1.25/1.6-YQ | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1-1.0/1.25/1.6-YQ | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8-1.0/1.25/1.6/2.5-YQ | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10-1.0/1.25/1.6/2.5-YQ | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15-1.0/1.25/1.6/2.5-YQ | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20-1.0/1.25/1.6/2.5-YQ | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||

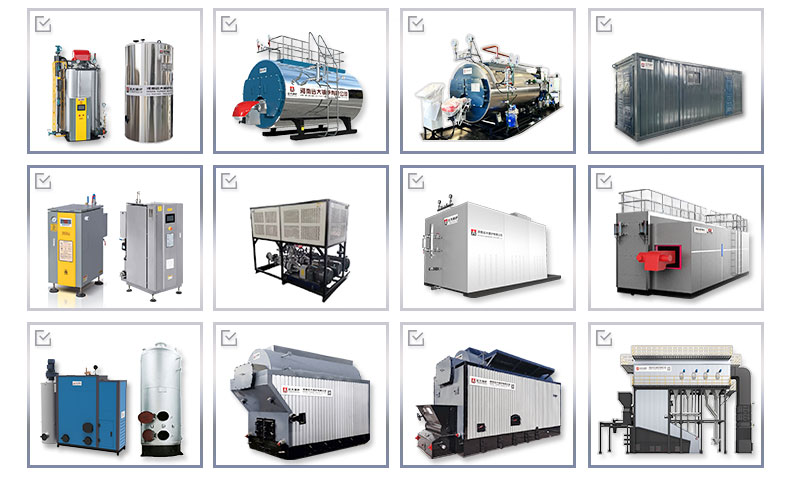

Our Supply Equipment List
Technical Design
100% Safety

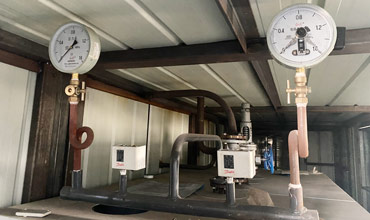

We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler

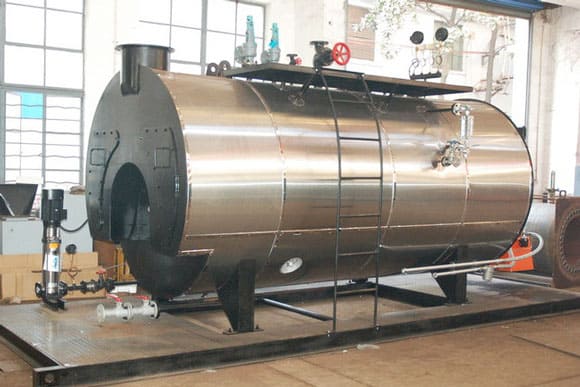

Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionPRODUCT LIST
