Hot Water Heater Boiler
 Product capacity: |
100kw-35000kw, 60000kcal-24millionKcal |
 Working pressure: |
0.1Mpa-3.8Mpa 1bar-38bar |
 Available fuel: |
Nature gas, lpg, exhuast gas, propane, diesel, heavy oil, waste oil, dual fuel |
 Available industries: |
Heating Water, Center Heating For Buildings, Greenhouse, Hospital, School, Hotels, Drying, Washing.... |
Key selling points:WNS series horizontal fire tube boiler, package gas lpg oil boiler. Automatic energy-saving gas oil fired shell boiler, quick & strong heating power, high efficiency > 98%
Introduction

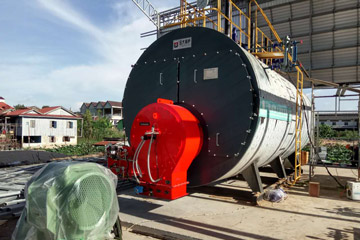

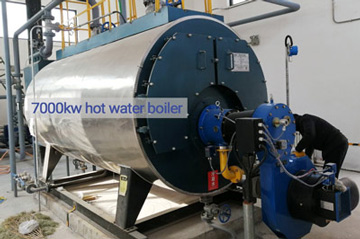

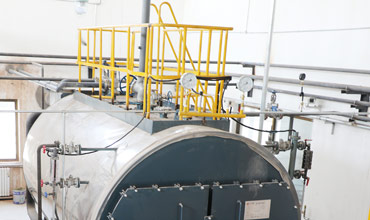

> Gas-fired (Oil-fired) Hot Water Boiler

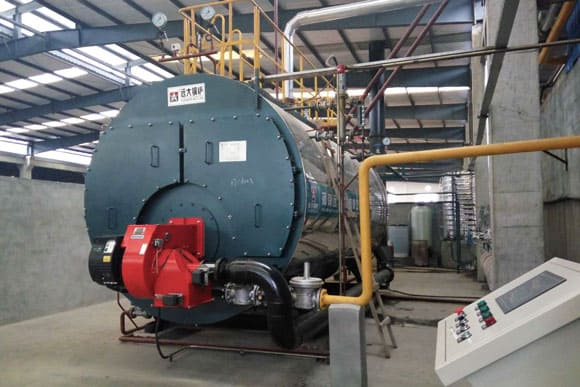

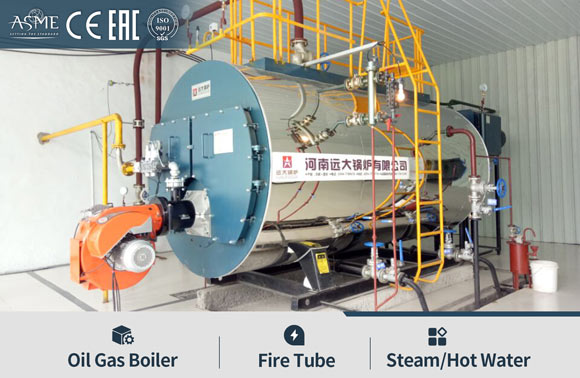

Yuanda gas/Lpg/oil fired hot water boiler, the most popular WNS series fire tube boiler, it is horizontal three pass fire tube structure boiler, with higher-efficiency up 99% & energy-saving & fully automatic running. Importantly, WNS series boiler has a lower emissions, environmental-friendly.

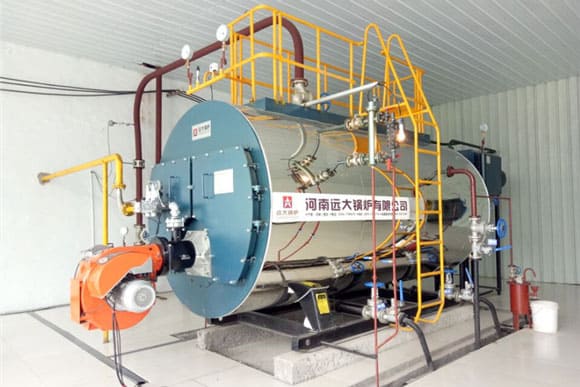

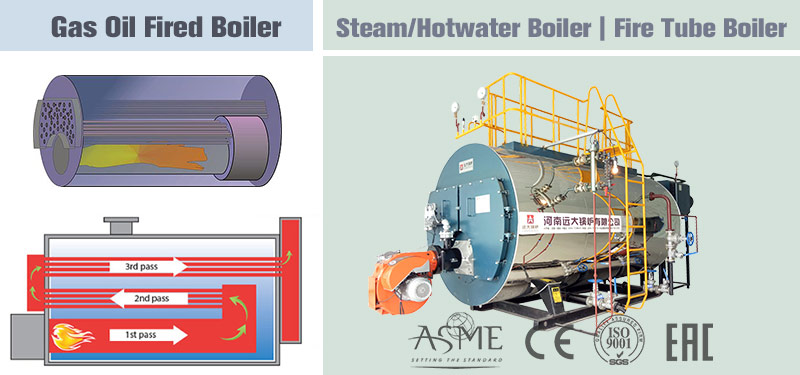

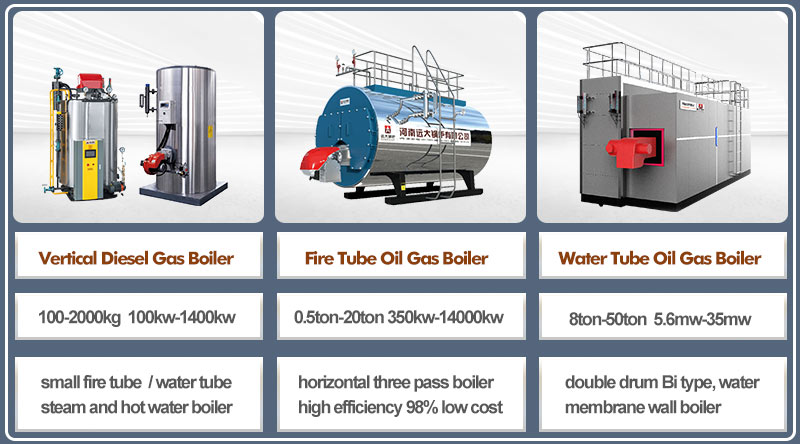

> Horizontal Oil Gas Boiler System
WNS boiler body with characteristics of "fan-shape three pass boiler" "wet-back boiler" "corrugated-furnace" "smoke change chamber" "spirally tube", greatly improve thermal efficiency up to 99%.

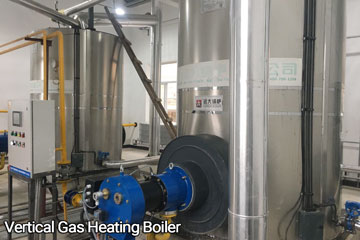

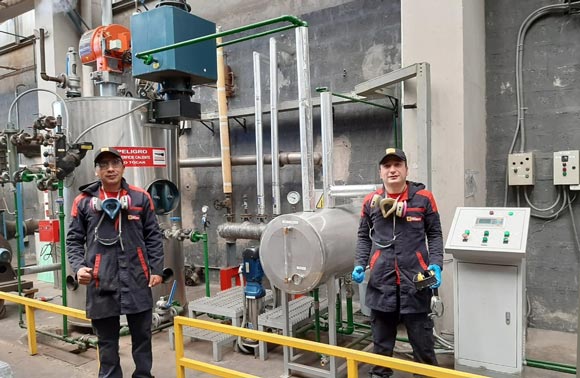

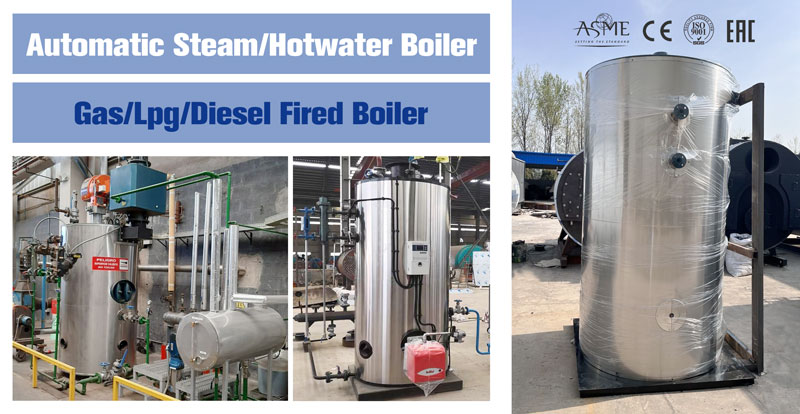

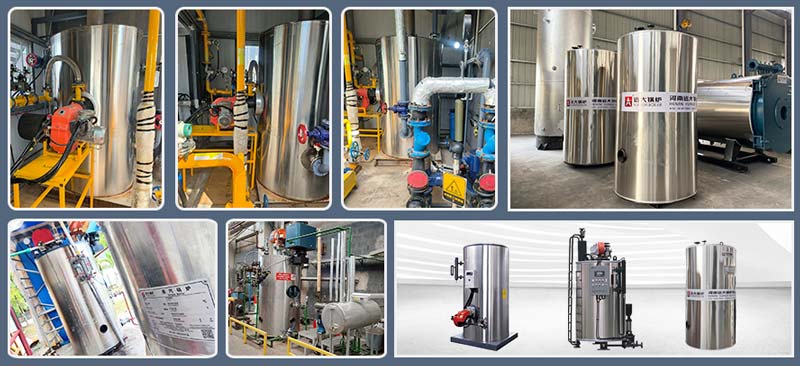

>Related: Vertical Hot Water Boiler

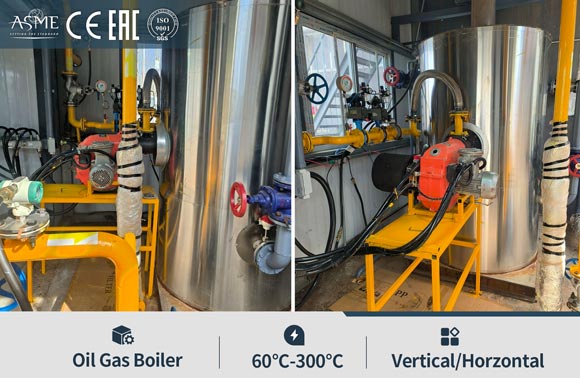

Vertical hot water boiler, powered by gas, diesel, lpg. Thermal capacity in 100kw-1400kw. Smaller size boiler help saving boiler room area. Simple structure & easy installation & automatic control.
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)

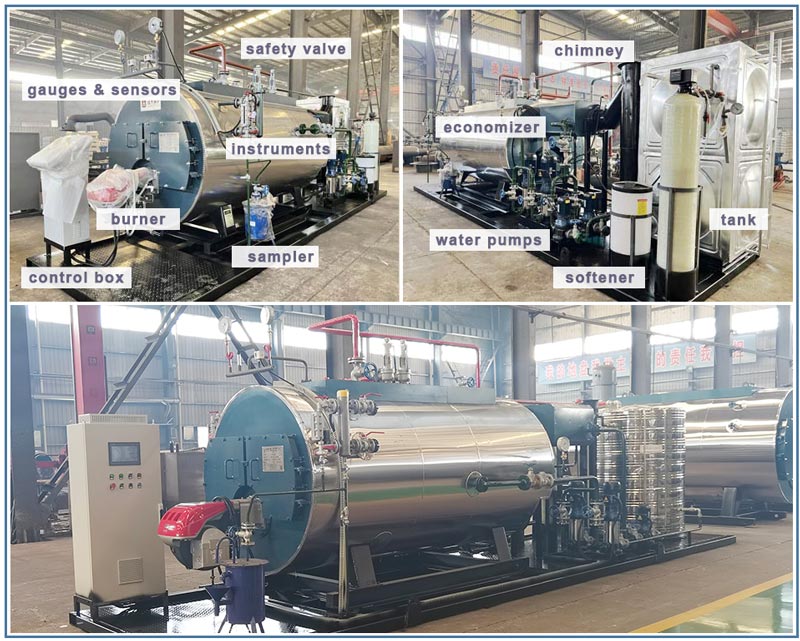

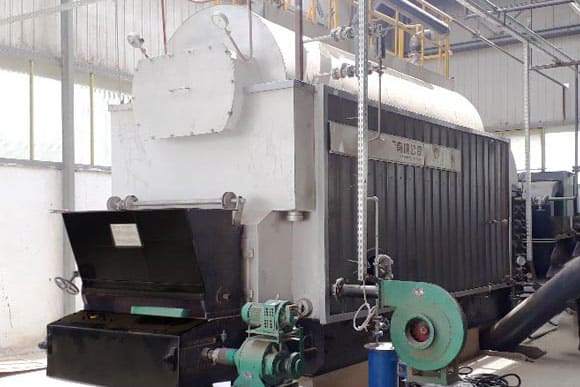

Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| Model | Rated power(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.35 | 0.35 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 31.6 | 36.6 | 2.65 |
| WNS0.7 | 0.7 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 60.4 | 69.3 | 4.66 |
| WNS1.4 | 1.4 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 122.8 | 146.1 | 6.53 |
| WNS2.1 | 2.1 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 192.3 | 227.1 | 7.3 |
| WNS2.8 | 2.8 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 246.1 | 286.5 | 8.1 |
| WNS4.2 | 4.2 | 0.7/1.0/1.25 | 95/115/130 | 70 | ＞97 | 60-75 | 367.1 | 412.6 | 15.1 |
| WNS5.6 | 5.6 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 490.2 | 543.7 | 18.2 |
| WNS7.0 | 7.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 593.6 | 660.7 | 25.6 |
| WNS10.5 | 10.5 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 936.5 | 998.8 | 29.1 |
| WNS14.0 | 14.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | ＞97 | 60-75 | 1200.8 | 1330.7 | 47.8 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||

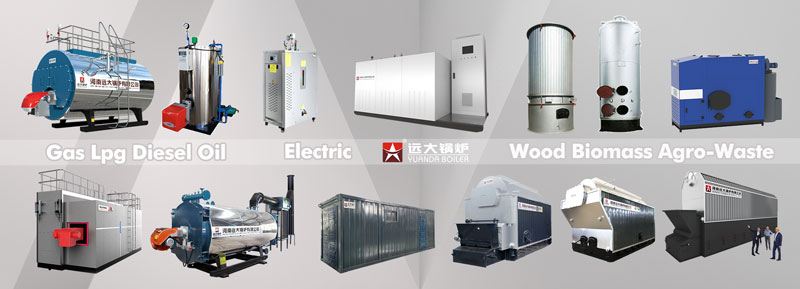

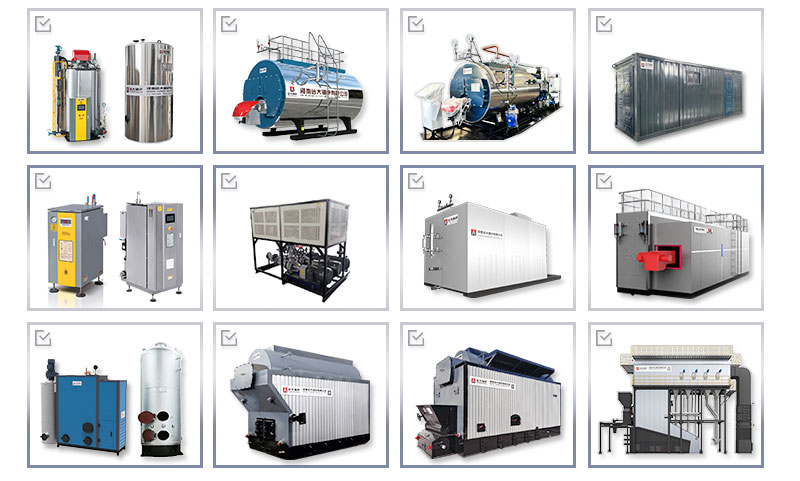

Our Supply Equipment List
Gas Oil Boiler Advantages
100% Safety
We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves

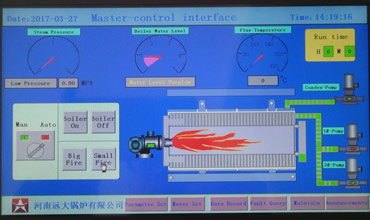

High Automation Boiler
Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
Energy-Saving Boiler
Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
Environmental Friendly
WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protectionFAQ of WNS Hot Water Boiler
Question: what the fuel comsumption of gas boiler, diesel boiler, lpg boiler...
Answer: generally, when boiler into full load operation, 1ton gas boiler gas comsumption 70 cubic meter per hour, 1ton diesel boiler diesel comsumption 60kg per hour...further fuel comsumption calculate, pls contact us.
Question: what the thermal efficiency of your WNS boiler?
Answer: firstly, WNS series boiler design with advantage of energy-saving. second, we add the economizer and condenser in end of boiler system, enhance the thermal efficiency, up to 99%.
Question: what's the structure of WNS boiler?
Answer: horizontal boiler, fire tube boiler, wet back boiler, three pass boiler, package boiler, automatic boiler, shell boiler, economizer boiler.
Question: how can i get the price?
Answer: dear, pls send required boiler capacity, boiler fuel, other requirements in our website. Then you will receive the price within 24hours.
