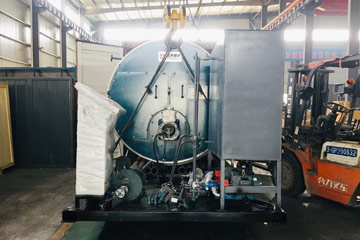

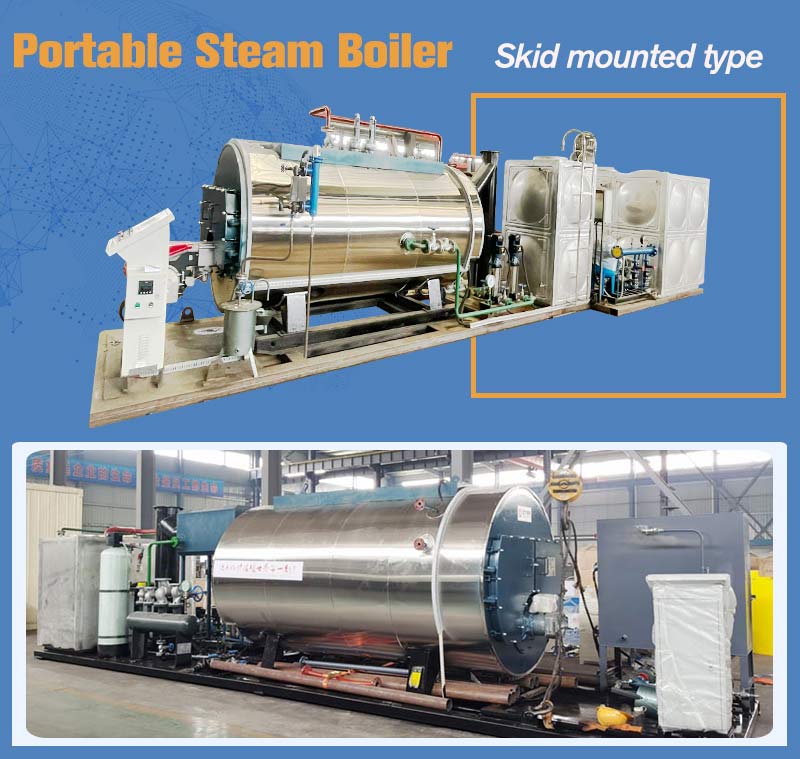

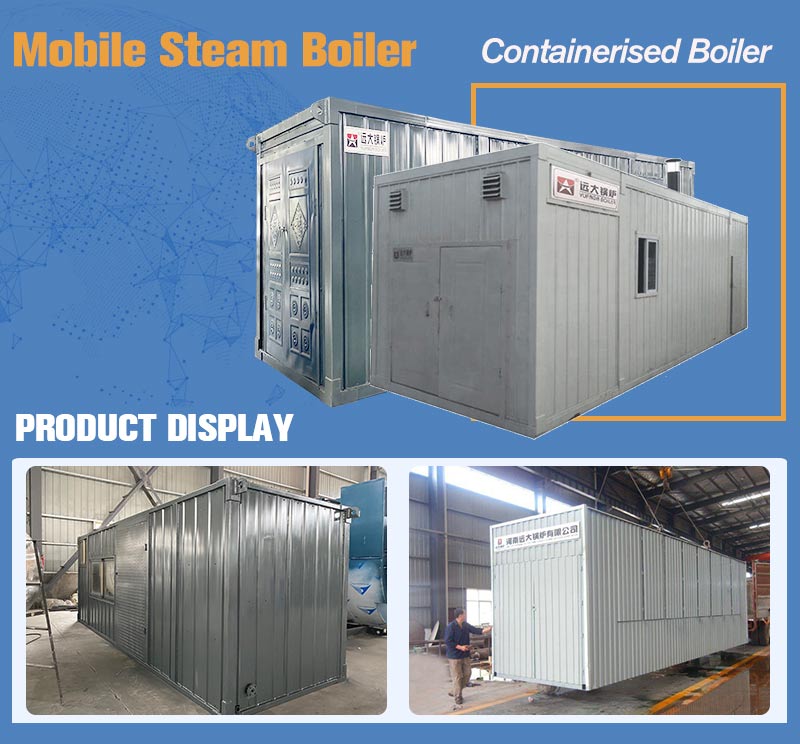

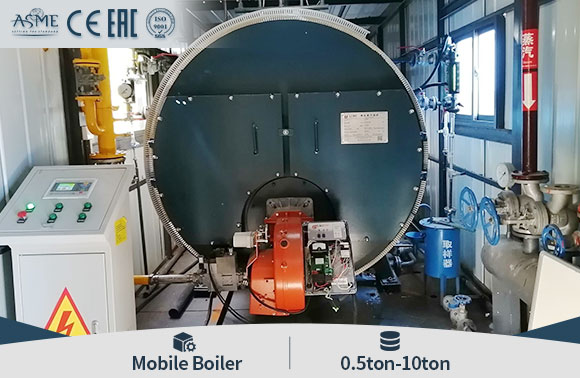

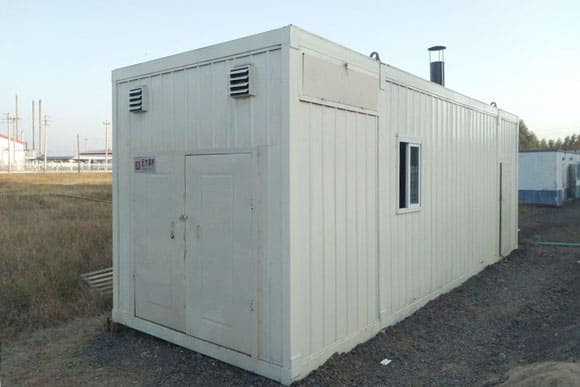

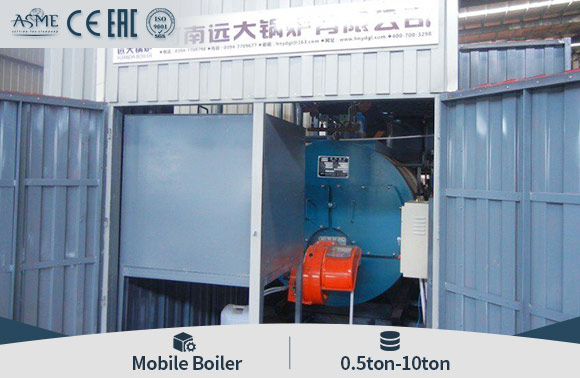

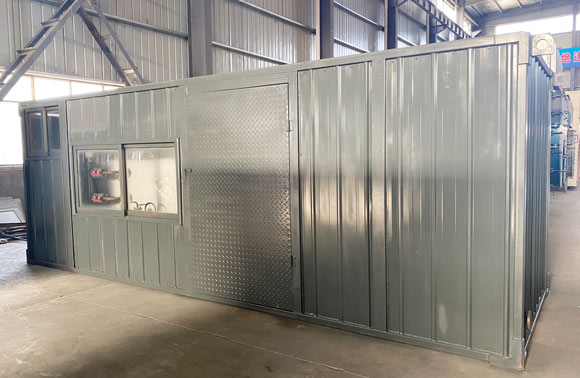

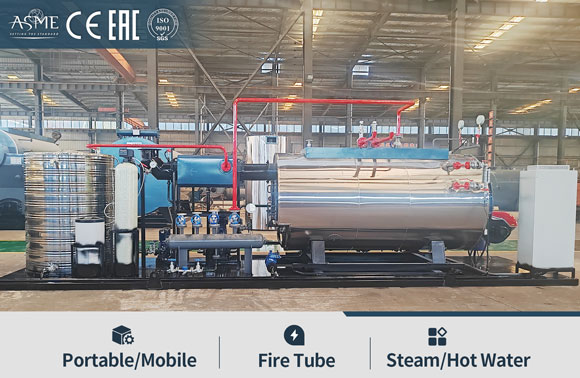

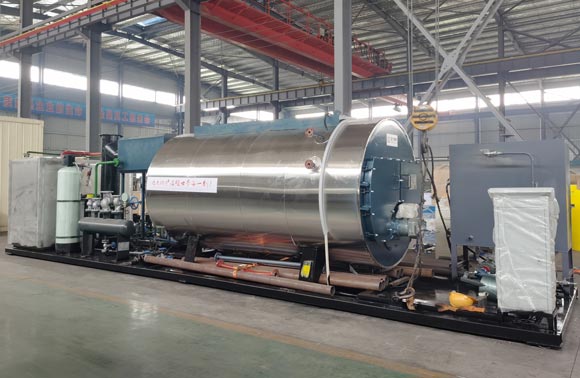

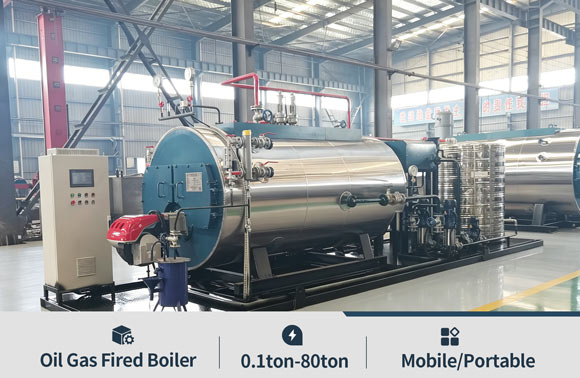

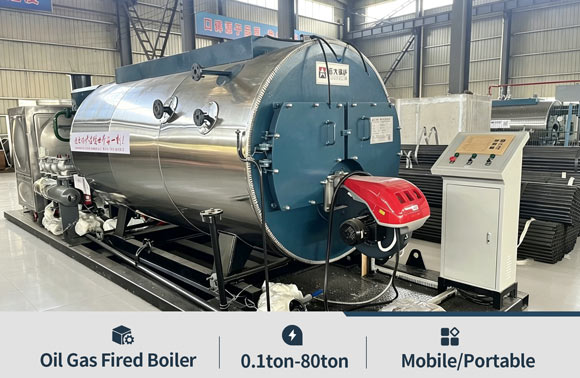

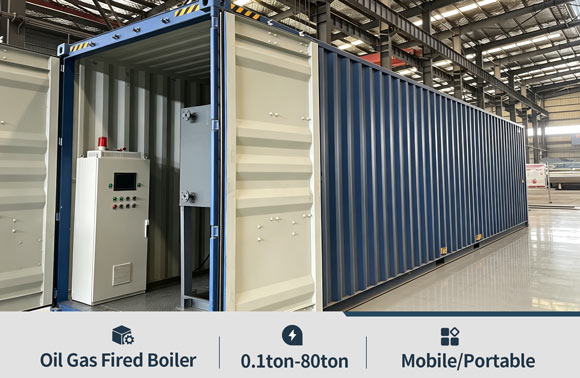

Mobile Steam Boiler

Product capacity: 0.1t/h-50t/h
Working pressure: 0-3.8Mpa
Available fuel: Nature gas, lpg, exhuast gas, propane, diesel, heavy oil, waste oil, dual fuel
Available industries: For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel...

Key selling points:30hp-3000hp WNS series horizontal fire tube boiler, package gas lpg oil boiler. Automatic energy-saving gas oil fired shell boiler, high steam quality, high efficiency > 98%

Introduction

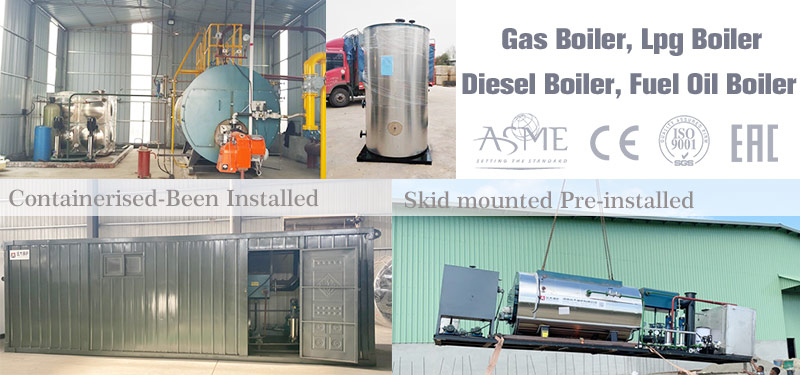

Gas boiler /Lpg boiler /Diesel boiler /Heavy oil boiler /Dual fuel boiler

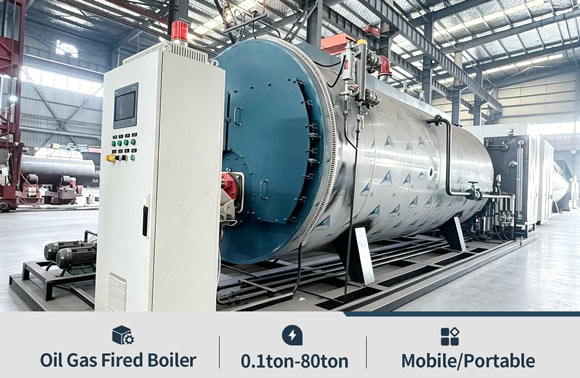

WNS Automatic low-emission gas/lpg/oil fired boiler, is horizontal type fire tube boiler, boiler body with characteristics of "fan-shape three pass" "wet-back" "corrugated-furnace" "smoke change chamber" "spirally tube", those help enhance thermal transfer and saving energy, then greatly improve thermal efficiency up to 99%.

steam boiler system diagram

Remark: Whole system equipment inculding: boiler body burner PLC control panel instrument valves feed water pump circulating water pump water tank water treatment equipment chimney economizer ⑪ steam header


WNS Boiler Global Sales

Be honest, our WNS gas/lpg/oil boiler already served for 90Countries in world, work for some industries or heating system. WNS steam boiler is available to output saturated steam 0.5t/hr-30t/hr, ensure strong power & sufficient steam for your demand. WNS hot water boiler is available to heating water up to 130°C, thermal capacity 0.35mw-21mw.

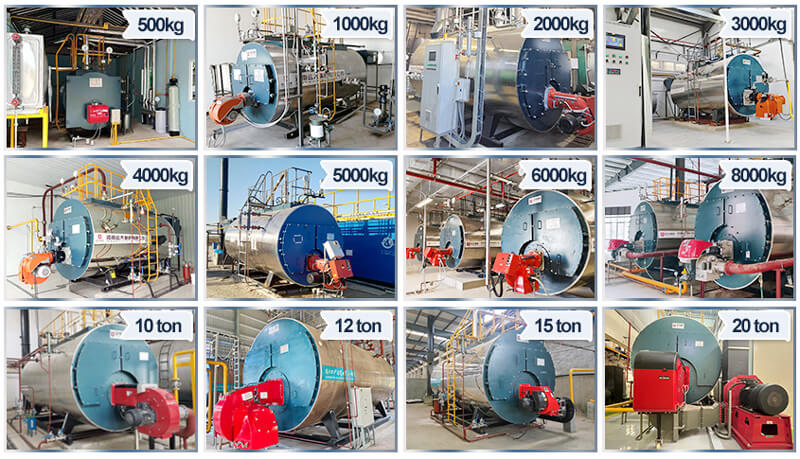

2ton gas steam boiler4ton diesel steam boiler

Where need WNS boiler

Mostly, all kinds industries will require boiler, maybe steam boiler, hot water boiler or thermal oil boiler. Widely used in industries such as foods, beverage, milk, garments, building materials, chemical, textile, paper, feed mill, chemical, edible oil, rice mill, dairy products, wood processing, refinery, packaging, laundry, hotel...

Yuanda Boiler

Technical Parameter

Model Rated capacity(t/h) Rated pressure (Mpa) Rated temperature(℃) feed temperature(℃) Thermal efficiency(%) Exhaust temperation(℃) Fuel comsumption max transportation weigh(t)
light diesel oil(kg/h) natural gas(Nm³/h)
WNS0.5-1.0/1.25/1.6-YQ 0.5 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 32.5 35.7 3.5
WNS1-1.0/1.25/1.6-YQ 1 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 64.5 70.1 5.5
WNS2-1.0/1.25/1.6-YQ 2 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 129.3 140.3 8
WNS3-1.0/1.25/1.6-YQ 3 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 192.9 212.1 10.7
WNS4-1.0/1.25/1.6-YQ 4 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 258.2 283.4 11.6
WNS6-1.0/1.25/1.6-YQ 6 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 388.6 424.2 17.5
WNS8-1.0/1.25/1.6/2.5-YQ 8 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 514.6 566.3 22.5
WNS10-1.0/1.25/1.6/2.5-YQ 10 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 641.7 707.8 26.8
WNS15-1.0/1.25/1.6/2.5-YQ 15 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 960.1 1061.7 35.2
WNS20-1.0/1.25/1.6/2.5-YQ 20 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 1276.2 1415.8 45.5
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Our Supply Equipment List

Boiler Body
Burner
Control Cabinet
Feed Water Pumps
Circulating Water Pumps
Water Tank
Water Treatment Equipment
Economizer
Induced Fan
Steam header
Chimney
......

Advantages of WNS boiler

Safety boiler

100% Safety

We make the ultrasonic flaw detection and water pressure test for body body and pressurized part. Boiler equipped with double gauges & safety valves
Intelligient control panel of boiler

High Automation Boiler

Intelligient control panel of boiler, it controls the size of the flame of the burner, water level, pressure, temperature and other signals inside the boiler
three pass boiler

Energy-Saving Boiler

Three pass boiler, three pass can extend the flue gas distance, enhance heat transfer and increase thermal efficiency. Full heat insulation condenser design
industrial gas oil boiler

Environmental Friendly

WNS series boiler, it could satisfy all countries' environment NOx emission limit standard. We are on the way to green environment protection

FAQ of WNS gas lpg boiler

Question: what the fuel comsumption of gas boiler, diesel boiler, lpg boiler...

Answer: generally, when boiler into full load operation, 1ton gas boiler gas comsumption 70 cubic meter per hour, 1ton diesel boiler diesel comsumption 60kg per hour...further fuel comsumption calculate, pls contact us.

Question: what the thermal efficiency of your WNS boiler?

Answer: firstly, WNS series boiler design with advantage of energy-saving. second, we add the economizer and condenser in end of boiler system, enhance the thermal efficiency, up to 99%.

Question: what's the structure of WNS boiler?

Answer: horizontal boiler, fire tube boiler, wet back boiler, three pass boiler, package boiler, automatic boiler, shell boiler, economizer boiler.

Question: how can i get the price?

Answer: dear, pls send required boiler capacity, boiler fuel, other requirements in our website. Then you will receive the price within 24hours.
