Vertical Wood Biomass Boiler
 Product capacity: |
70kg-10000kg, 40kw-7000kw |
 Working pressure: |
0.1Mpa-3.8Mpa |
 Available fuel: |
Wood, biomass, pellets, coal, solid waste |
 Available industries: |
For heating, drying, in foods, beverage, textile, paper, feed mill, chemical, rice mill, refinery, packaging, laundry, hotel, buildings... |
Key selling points:Small vertical biomass boiler, with water tube structure design. Including manual type & automatic type, different model for choose.
Introduction

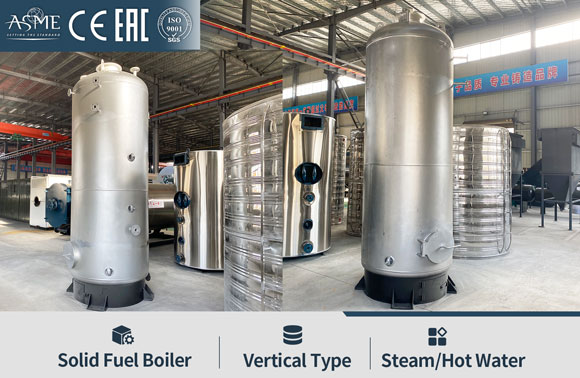

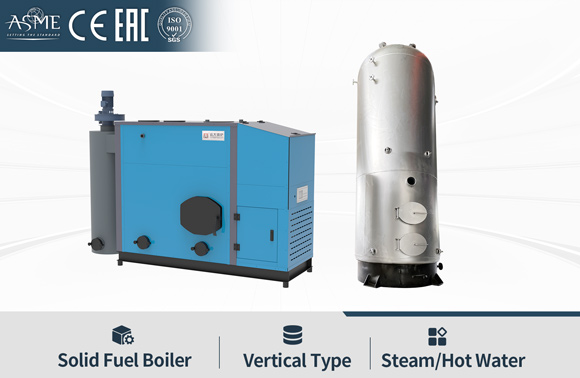

Vertical Wood/Biomass Fired Boiler

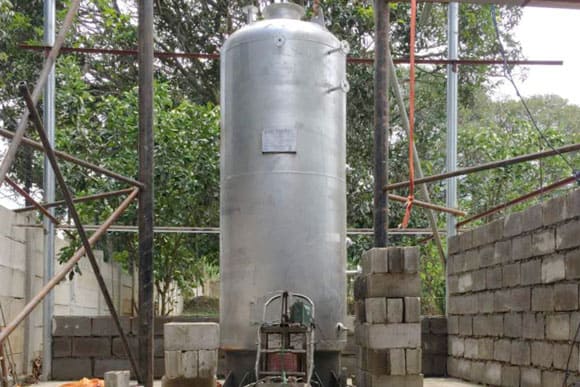

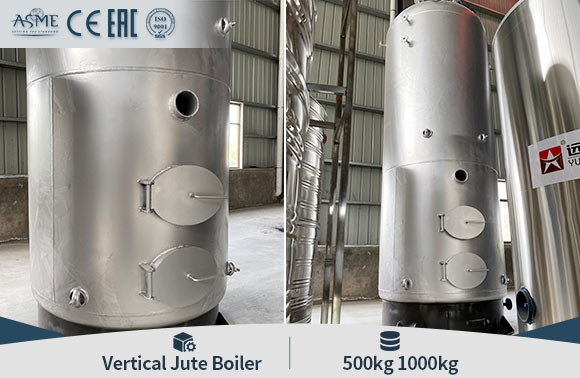

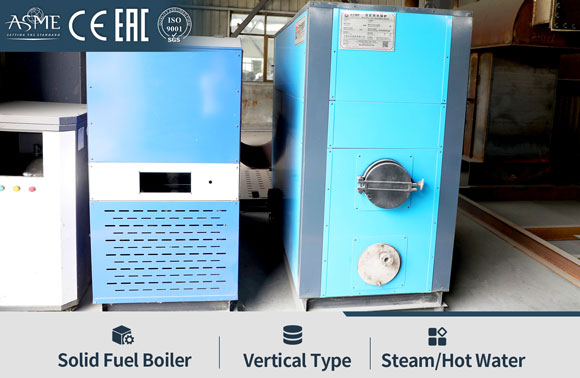

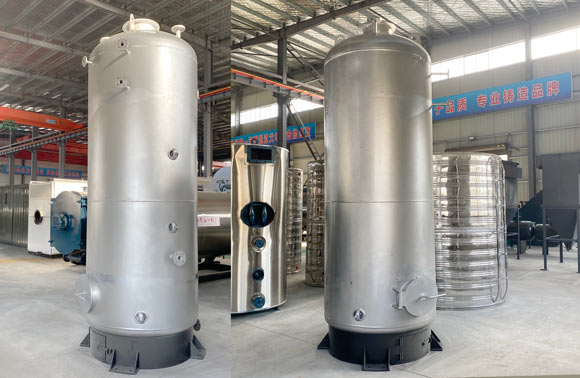

Model ① : Vertical manual biomass boiler
Small vertical biomass wood boiler, adopt water tube structure, manual type coal/wood/biomass fuel burning boiler. Heating capacity in 100kw-1400kw or 200kg-2000kg.
Structure: Vertical manual feeding coal/wood fired boiler, the boiler body mainly made of U-circle, boiler drum, shell cover, furnace, horizontal water tube, vertical tube, convection tubes, pressure parts. Set manhole on shell cover, convenient for boiler maintenance and clean.
Advantages: vertical boiler in 300kg 500kg 800kg 1000kg, it's more easier to install, has smaller occupied area, lower price for boiler body.

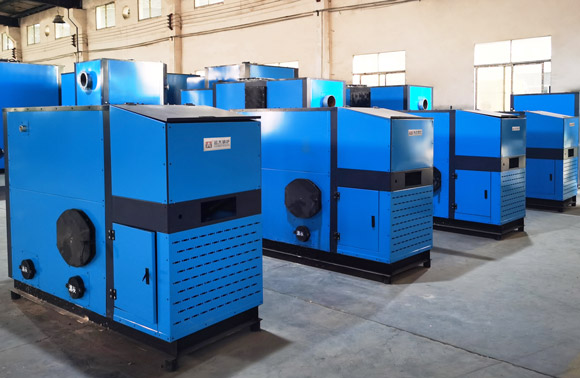

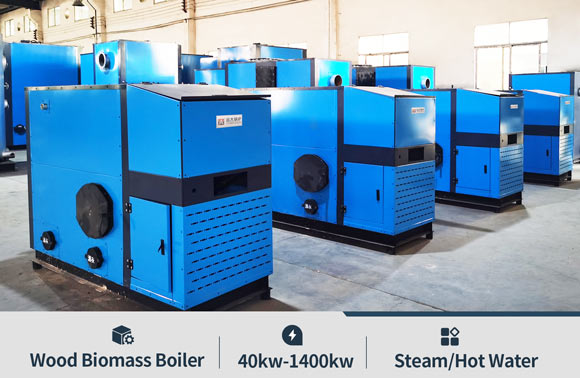

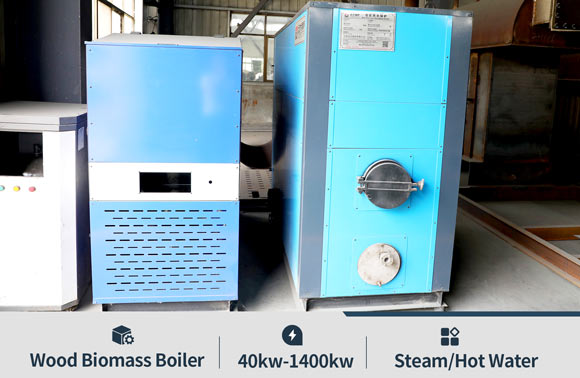

Model ② : LSS automatic biomass boiler

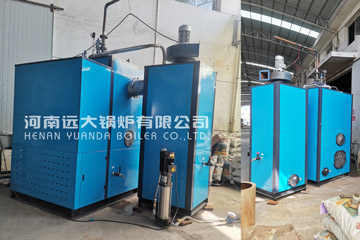

Fully automatic biomass pellets steam generator boiler, including fixed grate type & reciprocating grate type. It adopts water-tubes & fire tubes design for heat transferring. Thermal efficiency is about 85%.

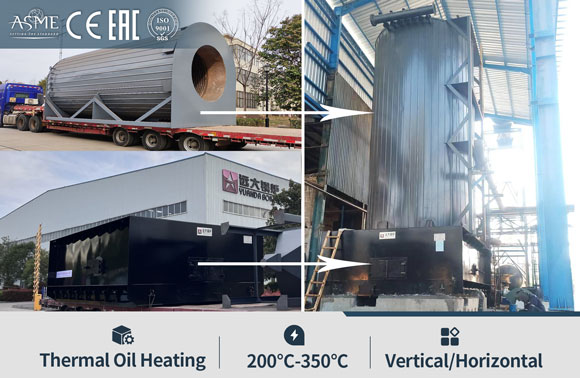

Related Biomass/Wood Boiler
> How to Choose A Suitable Boiler
1. Basic Boiler Information For Your Project
Fuel options: Gas Lpg Diesel Heavy-oil Biogas Dual-fuel, Electricity, Coal, Charcoal, Wood, Biomass, Pellets, EFB Palm-kernel-shells, Rice-husk, Peanut-shells, Cashew-nuts-shells, Sunflower-seeds-shells, Bagasse, etc.
Thermal capacities options: 100kg-50000kg, 70kw-35000kw, 5hp/bhp-3000hp/bhp, (million-btu, pounds/lbs, liters,etc)
Heat medium options: saturated/superheated steam, hot water, thermal oil.
Structure options: Fire tube boiler, water tube boiler, water-tube fire-tube boiler
Layout options: Vertical boiler, Horizontal boiler.
Operating-mode options: Automatic, manual
Note: please feel free to send all requirements, we could help you better.
2. Calculating Running Cost
Specific consumption analysis report
Different types boiler running consumption comparison analysis report
(Note: Report is based on your local energy source price)
3. Boiler Accessories (essential or optional)
Control panel, Water treatment device, Economizer, Conderser, Heat recovery unit, Deaerator, Solid fuel burning combustions stoker (chain-grate, reciprocating-grate, travelling-grate, fixed-grate), Steam header, Pumps, Water level gauge/sensor, Pressure guage/sensor, Safety valves, etc.
Note: Any special request, please send all details.
Technical Parameter
| Biomass Steam Generator Technical Parameter Table | |||||||
| Model | Rated evaporation(T/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Thermal efficiency(%) | Water capacity(L) | Fuel consumption(Kg/H) | power supply(V) |
| LSG0.08-0.7 | 0.08 | 0.7 | 170 | ≥90 | 29.5 | 12 | 220 |
| LSG0.12-0.7 | 0.12 | 0.7 | 170 | ≥90 | 29.5 | 17 | 220 |
| LSG0.16-0.7 | 0.16 | 0.7 | 170 | ≥90 | 29.5 | 25 | 220 |
| LSG0.23-0.7 | 0.23 | 0.7 | 170 | ≥90 | 29.5 | 33 | 220 |
| LSG0.30-0.7 | 0.3 | 0.7 | 170 | ≥90 | 47.5 | 50 | 220 |
| LSG0.50-0.7 | 0.5 | 0.7 | 170 | ≥90 | 29.5 | 75 | 220 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||

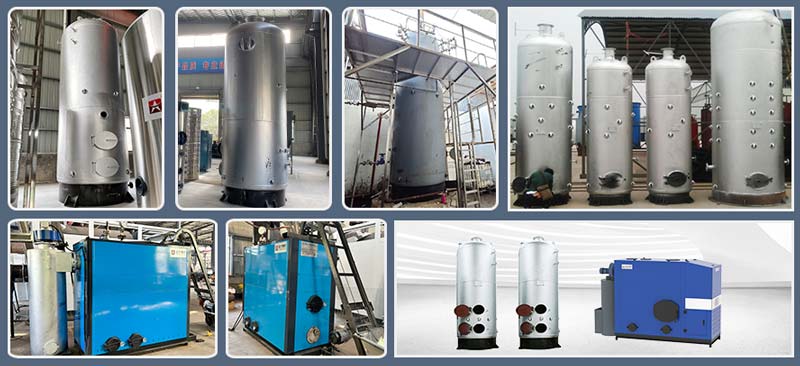

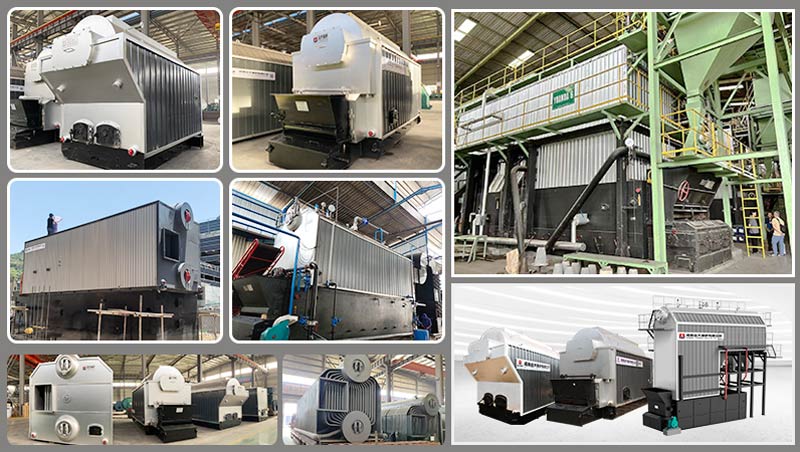

Our Supply Equipment List
Design Features

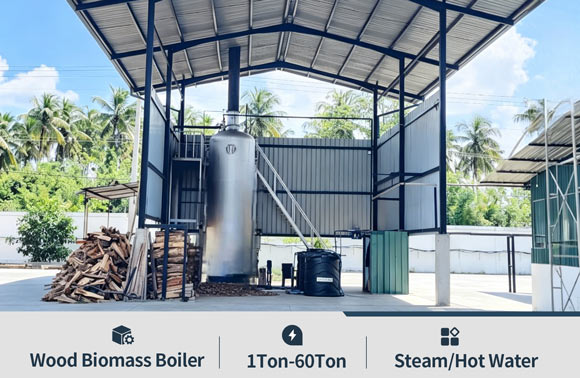

Hand-Feeding Boiler
LSG series vertical type boiler, help saving occupy area. Need Hand feeding biomass/wood into combustion, easy installation & operation
Inner Water Tube Structure
Water tube coal boiler, larger heating area, make water temperature heat up quickly. Also it has low maintenance rate, low running cost

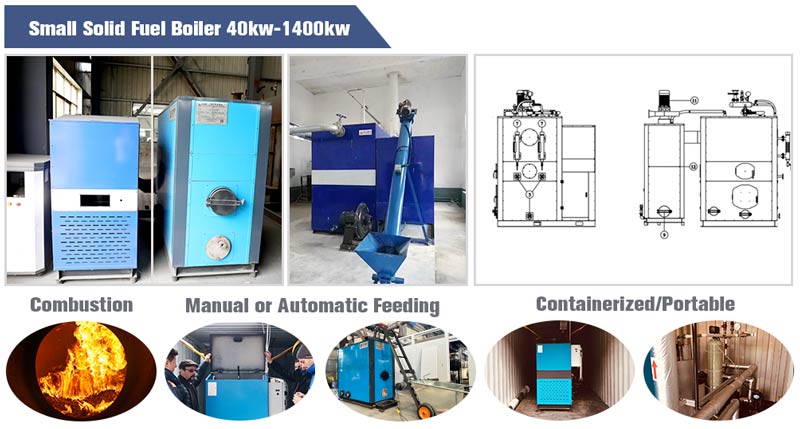

Combustion Show
Automatic ignition & combustion stage. Show biomass pellets combustion, burning at high efficiency, strong power.

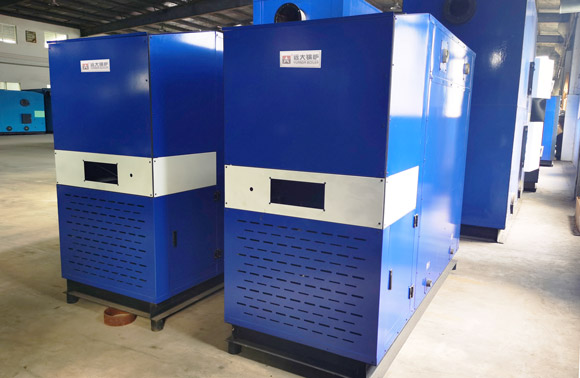

Modular Integration
Compact structure and light weight; One-button start up/off; Automatic control system; Available to move everywhere.PRODUCT LIST
